Ferrari Portofino M — [VEHICLE TRIM] - E.33 - FRONT LID TRIM (diagram 0134)

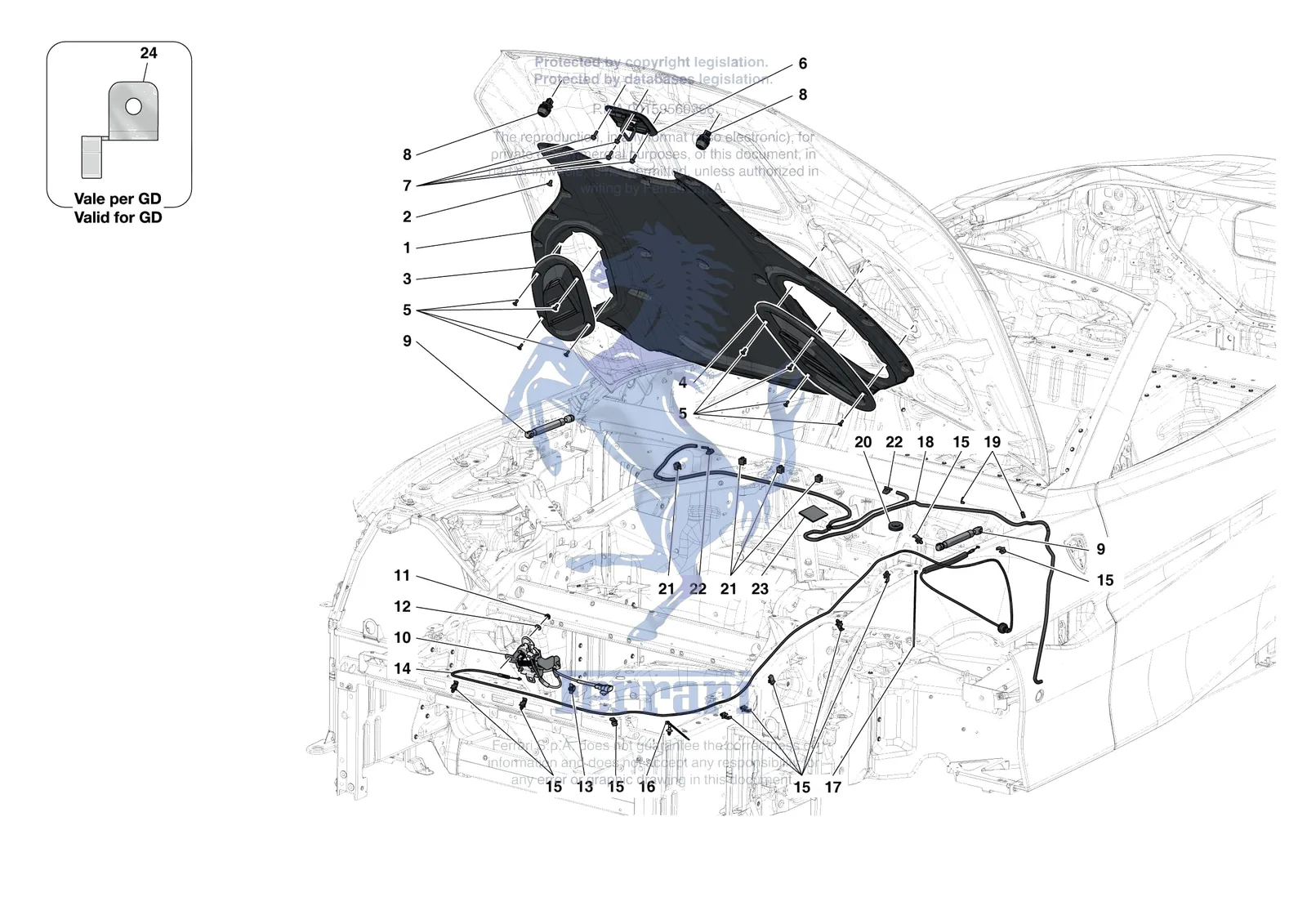

Exploded view of the [vehicle trim] - e.33 - front lid trim on the Ferrari Portofino M, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.33 - FRONT LID TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0134.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 306631 | Ferrari Clip - 306631 | $7.59 | Special order, ships in 7-14 days | |
| 88305700 | Ferrari Gas Strut - 88305700 | Superseded | Order 883049 instead | |
| 308092 | Ferrari Grommet - 308092 | $34.25 | Special order, ships in 7-14 days | |
| 88989800 | Ferrari Pipe - 88989800 | Superseded | Order 88989700 instead | |
| 88989900 | Ferrari Pipe - 88989900 | Superseded | Order 88989700 instead | |
| 88990000 | Ferrari Pipe - 88990000 | Superseded | Order 88989700 instead | |
| 80131500 | Ferrari Spray Nozzle - 80131500 | Superseded | Order 65191000 instead | |
| 1 | 88826700 | Ferrari Isolamento Cofano Motore - 88826700 | $293.71 | Special order, ships in 7-14 days |
| 2 | 14591687 | Ferrari Fixing Button - 14591687 | $0.13 | Available, ships in 3-6 days |
| 3 | 791861 | Ferrari Griglia Cofano Dx Cpl - 791861 | $145.74 | Special order, ships in 7-14 days |
| 4 | 791859 | Ferrari Griglia Cofano Sx Cpl - 791859 | $145.74 | Special order, ships in 7-14 days |
| 5 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 6 | 80246800 | Ferrari Striker Plate - 80246800 | $93.40 | Special order, ships in 7-14 days |
| 7 | 81923100 | Ferrari Screw - 81923100 | $1.15 | Available, ships in 3-6 days |
| 8 | 67161800 | Ferrari Anti Vibration Pad - 67161800 | $56.60 | In stock |
| 9 | 883049 | Ferrari Gas Strut - 883049 | $63.08 | Special order, ships in 7-14 days |
| 10 | 86793300 | Ferrari Lid Lock - 86793300 | $342.66 | Available, ships in 3-6 days |
| 11 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 12 | 12647878 | Ferrari Washer - 12647878 | $5.65 | Special order, ships in 7-14 days |
| 13 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 14 | 89108900 | Ferrari Cavo Bowden Apertura Cofano - 89108900 | $137.04 | Special order, ships in 7-14 days |
| 14 | 780896 | Ferrari Engine Compartment Lid Release - 780896 | $127.27 | Special order, ships in 7-14 days |
| 15 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 16 | 306756 | Ferrari Clip - 306756 | $1.59 | Special order, ships in 7-14 days |
| 17 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 18 | 88989700 | Ferrari Pipe - 88989700 | $190.90 | Special order, ships in 7-14 days |
| 19 | 14569680 | Ferrari Clip - 14569680 | $0.13 | Special order, ships in 7-14 days |
| 20 | 10396780 | Ferrari Grommet - 10396780 | $7.84 | Special order, ships in 7-14 days |
| 21 | 14501087 | Ferrari Clip - 14501087 | $1.11 | Available, ships in 3-6 days |
| 22 | 65191000 | Ferrari Spray Nozzle - 65191000 | $5.44 | Available, ships in 3-6 days |
| 23 | 82009400 | Ferrari Adhesive Sound Insulation - 82009400 | $4.75 | Special order, ships in 7-14 days |
| 24 | 814114 | Ferrari Bowden Cable Fastener Bracke - 814114 | $18.82 | Special order, ships in 7-14 days |
