Ferrari Portofino M — [VEHICLE TRIM] - E.40 - FRONT BUMPER (diagram 0141)

Exploded view of the [vehicle trim] - e.40 - front bumper on the Ferrari Portofino M, with 77 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

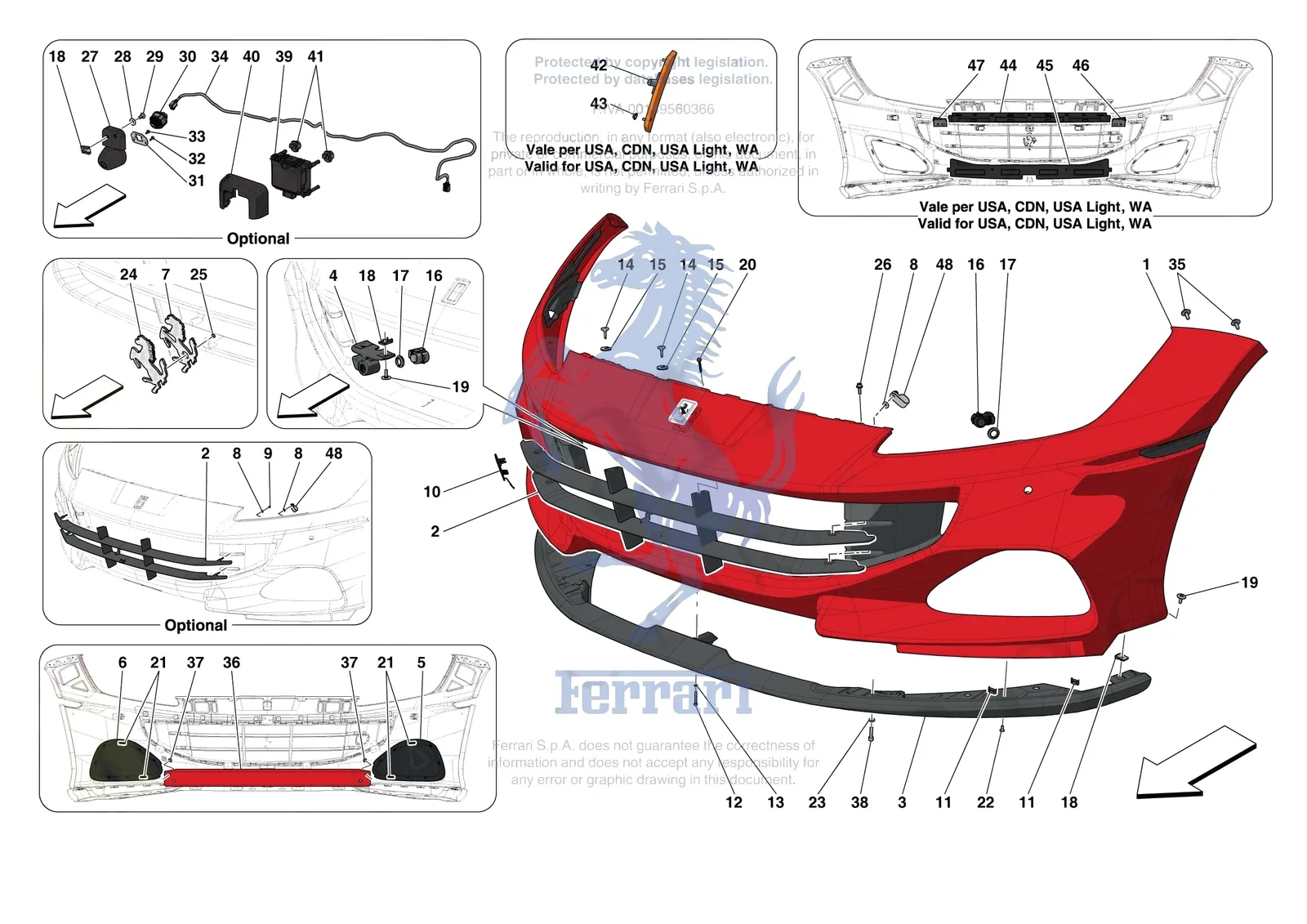

Ferrari Portofino M [VEHICLE TRIM] - E.40 - FRONT BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
782500Ferrari Medium Range Radar - 782500SupersededOrder 905082 instead
84050100Ferrari Screw 4x20 - 84050100SupersededOrder 85593200 instead
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
1985784093Ferrari Compl. Front Bumper - 985784093$20,359.28Contact us to order
1985784095Ferrari Compl. Front Bumper - 985784095$33,840.19Contact us to order
1985784099Ferrari Compl. Front Bumper - 985784099$19,981.25Contact us to order
1985784101Ferrari Compl. Front Bumper - 985784101$31,561.14Contact us to order
1985784103Ferrari Compl. Front Bumper - 985784103$19,981.25Contact us to order
1985784106Ferrari Compl. Front Bumper - 985784106$31,561.14Contact us to order
1985784109Ferrari Compl. Front Bumper - 985784109$20,359.28Contact us to order
1985784111Ferrari Compl. Front Bumper - 985784111$33,840.19Contact us to order
1985891981Ferrari Compl. Front Bumper - 985891981$18,069.37Contact us to order
1985892119Ferrari Compl. Front Bumper - 985892119$28,691.16Contact us to order
1985892121Ferrari Compl. Front Bumper - 985892121$18,447.40Contact us to order
1985892125Ferrari Compl. Front Bumper - 985892125$30,968.03Contact us to order
2766358Ferrari Grille - 766358$4,973.49Special order, ships in 7-14 days
2766359Ferrari Grille - 766359$3,368.46Special order, ships in 7-14 days
2766361Ferrari Grille - 766361$5,342.44Special order, ships in 7-14 days
2766362Ferrari Grille - 766362$3,739.49Special order, ships in 7-14 days
2886657Ferrari Grille - 886657$2,966.16Special order, ships in 7-14 days
2886699Ferrari Grille - 886699$2,576.37Special order, ships in 7-14 days
2933996Ferrari Grille - 933996$1,028.66Special order, ships in 7-14 days
370007251Ferrari Compl. Front Spoiler - 70007251$14,993.99Contact us to order
3914414Ferrari Compl. Front Spoiler - 914414$812.51Contact us to order
3963231Ferrari Compl. Front Spoiler - 963231$9,970.97Contact us to order
489141900Ferrari LH Centre Sensor Mount - 89141900$44.29Special order, ships in 7-14 days
489142000Ferrari RH Centre Sensor Mount - 89142000$44.29Special order, ships in 7-14 days
5918196Ferrari RH Intercooler Duct Grille - 918196$1,050.54Special order, ships in 7-14 days
6918195Ferrari LH Intercooler Duct Grille - 918195$1,050.54Special order, ships in 7-14 days
788694500Ferrari Prancing Horse Badge Mount - 88694500$14.99Special order, ships in 7-14 days
912574017Ferrari Nut - 12574017$1.86Available, ships in 3-6 days
1089142610Ferrari Tow Hook Cover - 89142610$110.78Special order, ships in 7-14 days
1186288500Ferrari Clip - 86288500$39.37Special order, ships in 7-14 days
1214303528Ferrari Screw - 14303528$1.84Special order, ships in 7-14 days
1314497724Ferrari Washer - 14497724$2.59Special order, ships in 7-14 days
1484913100Ferrari Screw 5.6mm - 84913100$37.13Special order, ships in 7-14 days
15105864Ferrari Spacer Washer D. 6.5-24 X 1.5 - 105864$2.82Available, ships in 3-6 days
16295361Ferrari Parking Sensor - 295361$80.91In stock
1781544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
1884583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
19256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
2085593200Ferrari Screw 3.9x31 - 85593200$32.79Special order, ships in 7-14 days
21787410Ferrari Clip - 787410$7.40Special order, ships in 7-14 days
22784317Ferrari Rivet F164 - 784317$15.51Special order, ships in 7-14 days
2310519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2484933700Ferrari Prancing Horse Motif For Grille - 84933700$120.46Available, ships in 3-6 days
2516101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
26835932Ferrari Screw - 835932$1.50Special order, ships in 7-14 days
27862824Ferrari Front Camera Cover - 862824$56.52Available, ships in 3-6 days
2814447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
2985833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
30818615Ferrari Surround Camera - 818615$1,967.03Special order, ships in 7-14 days
31839085Ferrari Front Camera Bracket - 839085$73.73Special order, ships in 7-14 days
3216082301Ferrari Screw - 16082301$1.49Available, ships in 3-6 days
3314417921Ferrari Screw M3 x 6 - 14417921$4.54Available, ships in 3-6 days
34826105Ferrari Front Camera Cable - 826105$132.94Special order, ships in 7-14 days
3581591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
36939883Ferrari Compl. Bumper Lower Front Cr - 939883$270.44Special order, ships in 7-14 days
3716287124Ferrari Flanged Bolt - 16287124$2.38Available, ships in 3-6 days
3814305428Ferrari Screw - 14305428$0.82Special order, ships in 7-14 days
39905082Ferrari Medium Range Radar - 905082$2,224.61Special order, ships in 7-14 days
40898684Ferrari Compl. Radar Cover - 898684$31.99Special order, ships in 7-14 days
41848849Ferrari Clip - 848849$5.65Special order, ships in 7-14 days
4287329500Ferrari LH Front Side Marker - 87329500$122.36Available, ships in 3-6 days
4287329600Ferrari RH Front Side Marker - 87329600$122.36Special order, ships in 7-14 days
4389241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
4488819800Ferrari Upper Front Impact Absorber - 88819800$238.82Special order, ships in 7-14 days
4588819900Ferrari Lower Front Impact Absorber - 88819900$226.49Special order, ships in 7-14 days
4689321800Ferrari RH Headlamp Crash Bracket - 89321800$64.00Special order, ships in 7-14 days
4789321700Ferrari LH Headlamp Crash Bracket - 89321700$64.00Special order, ships in 7-14 days
48920721Ferrari Clip Fix Cavo 14Mm Foro Fix - 920721$0.86Special order, ships in 7-14 days
