Ferrari Portofino M — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- (diagram 0149)

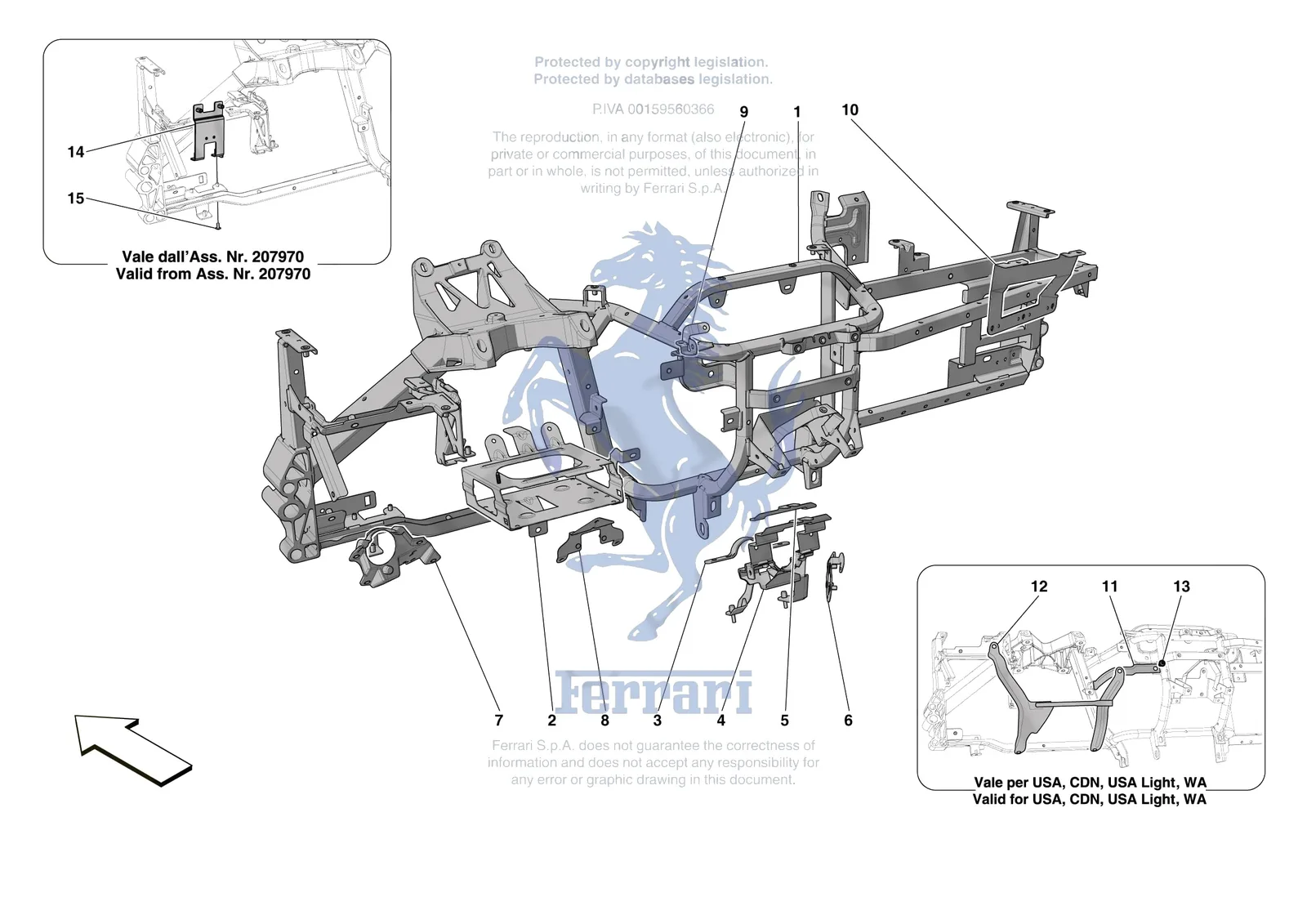

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure -not for rhd- on the Ferrari Portofino M, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0149.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 89060900 | Ferrari Dashboard Cross Member - 89060900 | $3,496.38 | Special order, ships in 7-14 days |
| 2 | 750057 | Ferrari NIT DIP Bracket - Navigation Unit - 750057 | $179.73 | Special order, ships in 7-14 days |
| 3 | 86431600 | Ferrari Bracket On Lower Steering Column - 86431600 | $23.08 | Special order, ships in 7-14 days |
| 4 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 4 | 88527400 | Ferrari Lower Steering Column Trim B - 88527400 | $565.49 | Special order, ships in 7-14 days |
| 5 | 88133500 | Ferrari Upper Steering Column Trim B - 88133500 | $39.31 | Special order, ships in 7-14 days |
| 6 | 88490300 | Ferrari Engine Button Mounting Brack - 88490300 | $66.35 | Special order, ships in 7-14 days |
| 7 | 758866 | Ferrari Supporto Comando Luci E E - 758866 | $49.22 | Special order, ships in 7-14 days |
| 8 | 89341500 | Ferrari Mounting Bracket for Engine Lid Handle - 89341500 | $39.37 | Special order, ships in 7-14 days |
| 9 | 89179500 | Ferrari Bag Cover - Diffuser Vent Su - 89179500 | $664.78 | Special order, ships in 7-14 days |
| 10 | 766818 | Ferrari Passenger Side Cover Mounting Bracket - 766818 | $86.15 | Special order, ships in 7-14 days |
| 11 | 89171500 | Ferrari Knee Guard Bracket Mount - 89171500 | $566.30 | Special order, ships in 7-14 days |
| 12 | 802525 | Ferrari Bracket - 802525 | $344.69 | Special order, ships in 7-14 days |
| 13 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 15 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
