Ferrari Portofino M — [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- (diagram 0150)

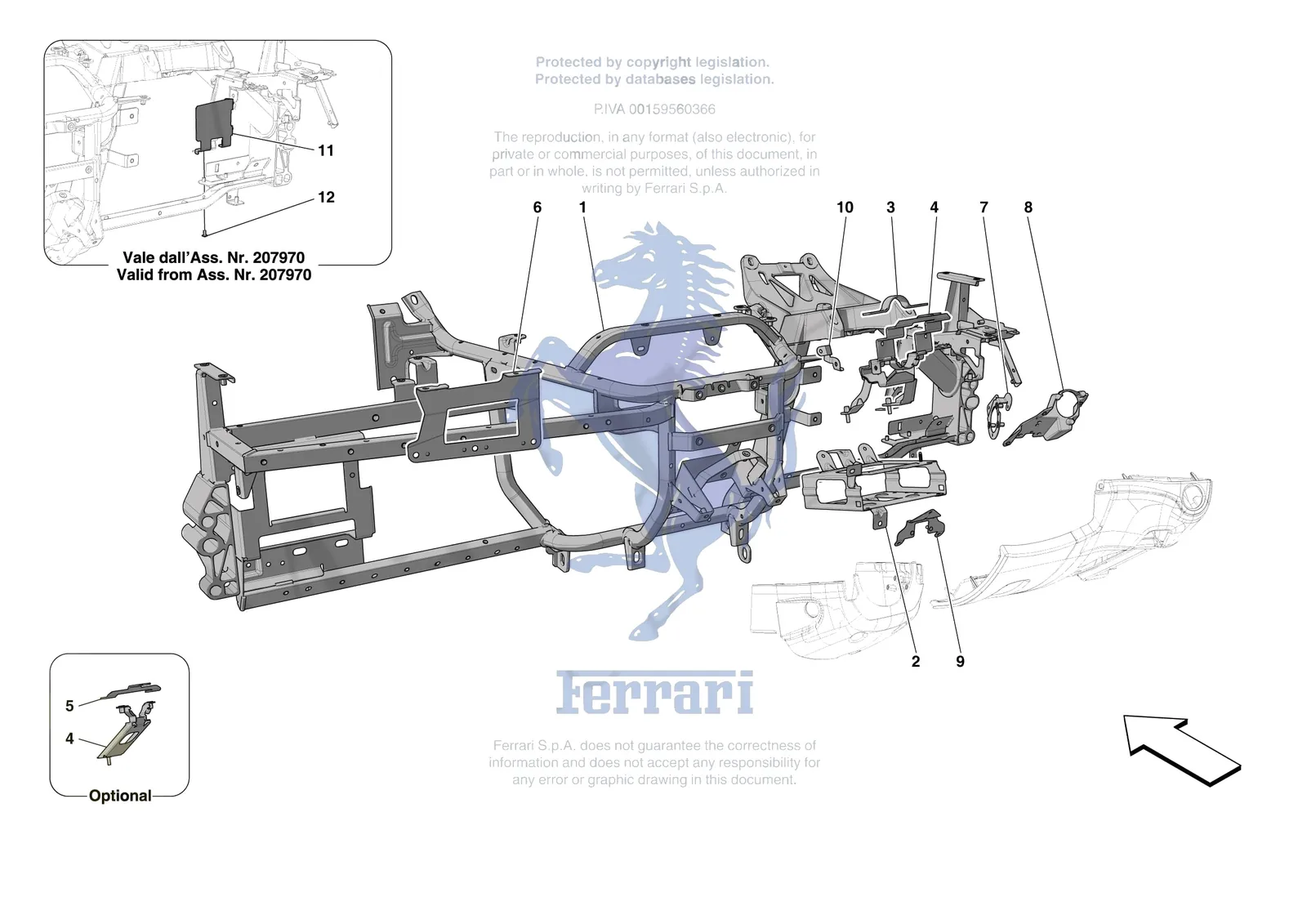

Exploded view of the [vehicle trim] - e.47.02 - dashboard - substructure -applicable for rhd- on the Ferrari Portofino M, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0150.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 895554 | Ferrari Myferrari Connect ECU Bracke - 895554 | $115.02 | Special order, ships in 7-14 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 89387300 | Ferrari Dashboard Cross Member - 89387300 | $4,434.40 | Special order, ships in 7-14 days |
| 2 | 749325 | Ferrari Nit Dip Bracket - 749325 | $270.83 | Special order, ships in 7-14 days |
| 3 | 86431600 | Ferrari Bracket On Lower Steering Column - 86431600 | $23.08 | Special order, ships in 7-14 days |
| 4 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 4 | 88527400 | Ferrari Lower Steering Column Trim B - 88527400 | $565.49 | Special order, ships in 7-14 days |
| 5 | 88133500 | Ferrari Upper Steering Column Trim B - 88133500 | $39.31 | Special order, ships in 7-14 days |
| 6 | 89392300 | Ferrari Passenger Side Cover Mountin - 89392300 | $91.08 | Special order, ships in 7-14 days |
| 7 | 88490300 | Ferrari Engine Button Mounting Brack - 88490300 | $66.35 | Special order, ships in 7-14 days |
| 8 | 761911 | Ferrari Lights And Epb Controls Moun - 761911 | $64.00 | Special order, ships in 7-14 days |
| 9 | 89341500 | Ferrari Mounting Bracket for Engine Lid Handle - 89341500 | $39.37 | Special order, ships in 7-14 days |
| 10 | 89391100 | Ferrari Bag Cover - Diffuser Vent Su - 89391100 | $467.80 | Special order, ships in 7-14 days |
| 11 | 902153 | Ferrari Myferrari Connect ECU Bracke - 902153 | Superseded | Order 895554 instead |
| 12 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
