Ferrari Portofino M — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)

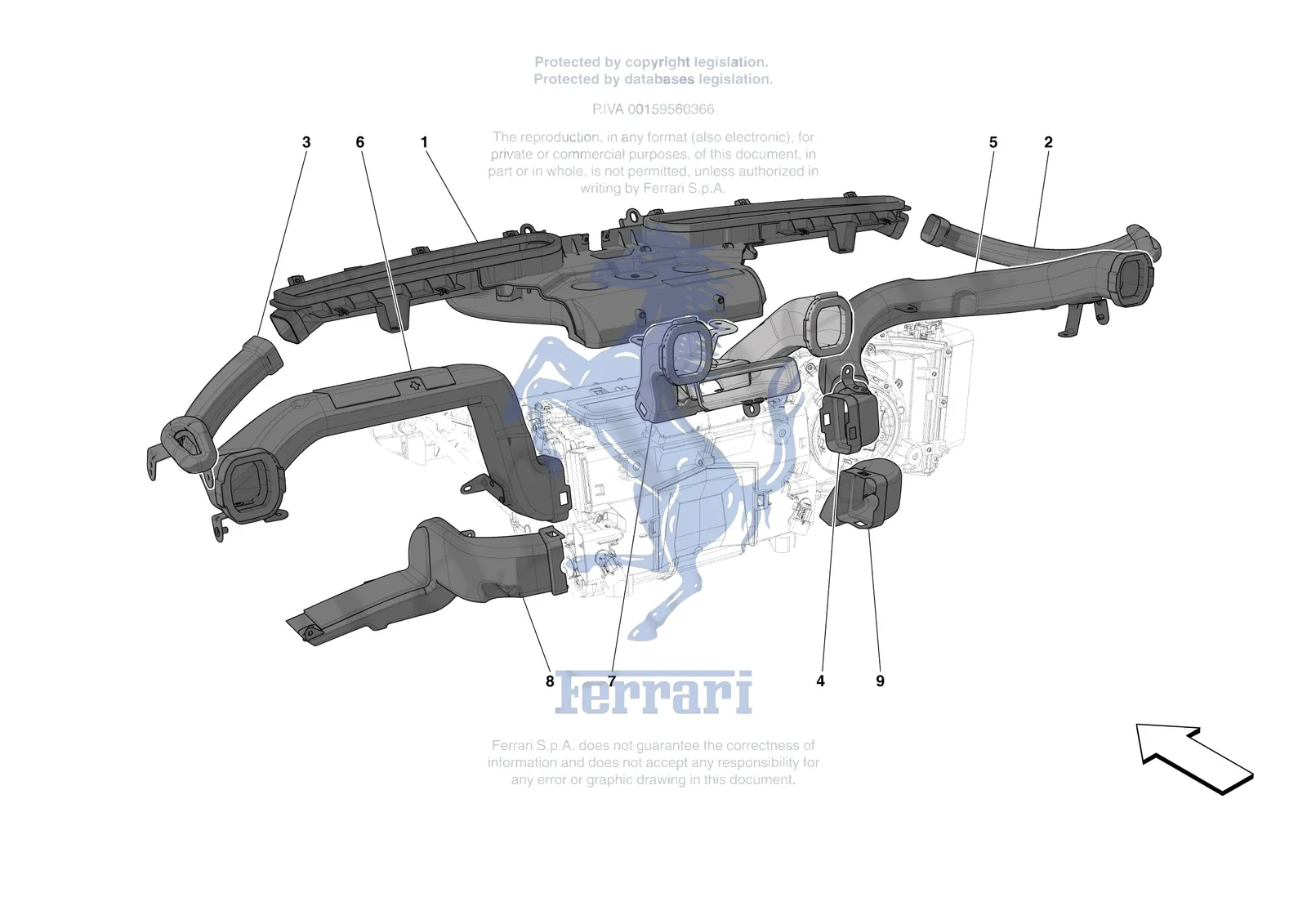

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari Portofino M, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0153.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 89067700 | Ferrari Condotto Defroster Cpl - 89067700 | $418.56 | Special order, ships in 7-14 days |
| 2 | 89068000 | Ferrari RH Demister Duct - 89068000 | $128.01 | Special order, ships in 7-14 days |
| 3 | 89067900 | Ferrari LH Demister Duct - 89067900 | $128.01 | Special order, ships in 7-14 days |
| 4 | 88656200 | Ferrari RH Passenger Ventilation Con - 88656200 | $128.01 | Special order, ships in 7-14 days |
| 5 | 89097300 | Ferrari RH Passenger Side Ventilatio - 89097300 | $206.81 | Special order, ships in 7-14 days |
| 6 | 89083400 | Ferrari LH Driver Side Ventilation D - 89083400 | $238.82 | Special order, ships in 7-14 days |
| 7 | 89068200 | Ferrari Centre Ventilation Duct - 89068200 | $216.66 | Special order, ships in 7-14 days |
| 8 | 89223100 | Ferrari Driver Side Footwell Ventila - 89223100 | $219.11 | Special order, ships in 7-14 days |
| 9 | 89223200 | Ferrari Passenger Side Footwell Vent - 89223200 | $149.96 | Special order, ships in 7-14 days |
