Ferrari Portofino M — [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- (diagram 0154)

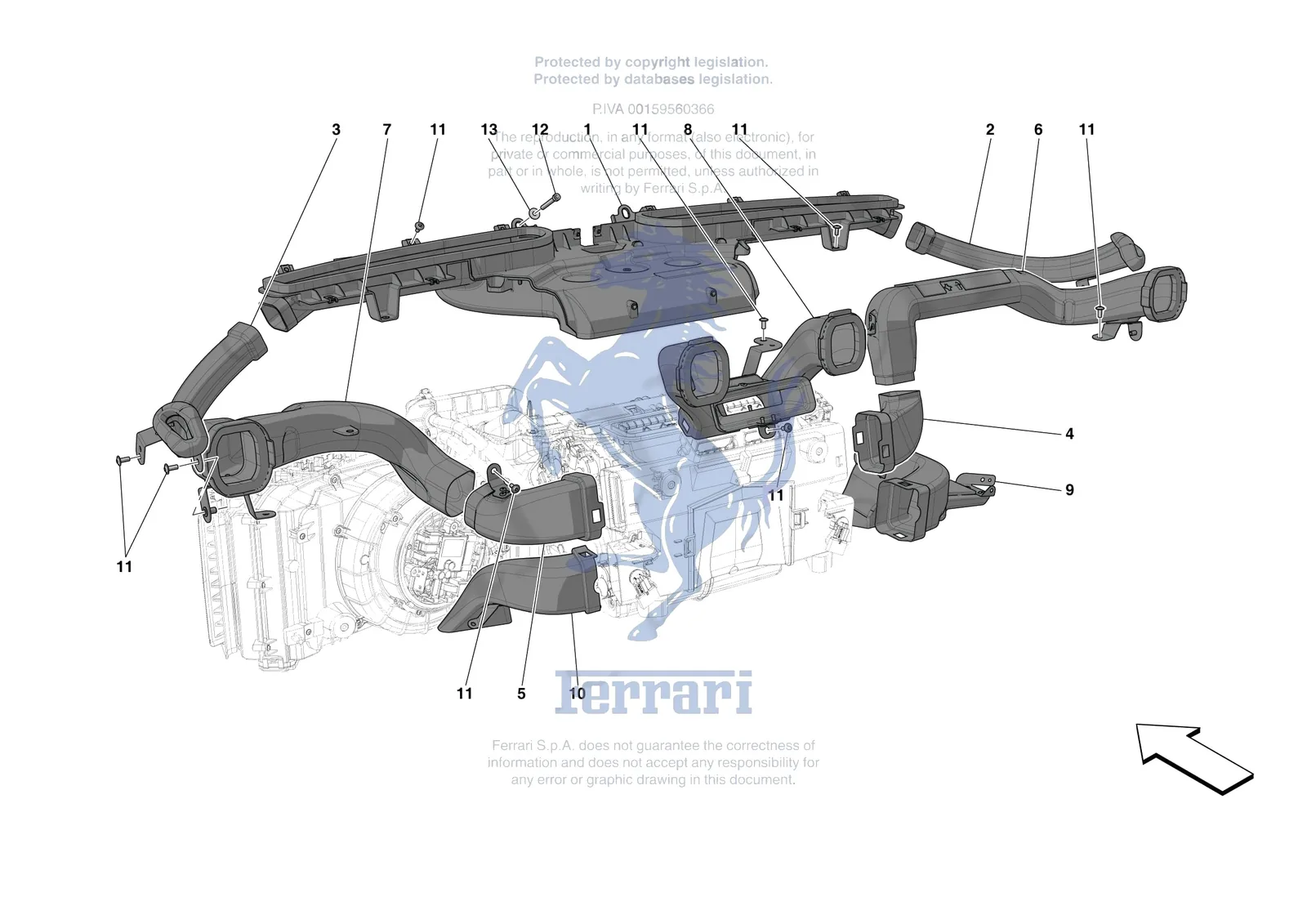

Exploded view of the [vehicle trim] - e.47.06 - dashboard - ducts -applicable for rhd- on the Ferrari Portofino M, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0154.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14304821 | Ferrari Allen Screw 6x55 - 14304821 | Superseded | Order 14304824 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 89067700 | Ferrari Condotto Defroster Cpl - 89067700 | $418.56 | Special order, ships in 7-14 days |
| 2 | 89068000 | Ferrari RH Demister Duct - 89068000 | $128.01 | Special order, ships in 7-14 days |
| 3 | 89067900 | Ferrari LH Demister Duct - 89067900 | $128.01 | Special order, ships in 7-14 days |
| 4 | 89387600 | Ferrari Driver Side Ventilation Duct - 89387600 | $184.65 | Special order, ships in 7-14 days |
| 5 | 89388300 | Ferrari Passenger Ventilation Connec - 89388300 | $369.30 | Special order, ships in 7-14 days |
| 6 | 89387500 | Ferrari Driver Side Ventilation Duct - 89387500 | $418.56 | Special order, ships in 7-14 days |
| 7 | 89388200 | Ferrari Passenger Side Ventilation D - 89388200 | $369.30 | Special order, ships in 7-14 days |
| 8 | 89387700 | Ferrari Centre Ventilation Duct - 89387700 | $467.80 | Special order, ships in 7-14 days |
| 9 | 89388400 | Ferrari Driver Side Footwell Ventila - 89388400 | $393.93 | Special order, ships in 7-14 days |
| 10 | 89388500 | Ferrari Passenger Side Footwell Vent - 89388500 | $270.44 | Special order, ships in 7-14 days |
| 11 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 12 | 14304824 | Ferrari Allen Screw 6x55 - 14304824 | $0.50 | Available, ships in 3-6 days |
| 13 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
