Ferrari Portofino M — [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0181)

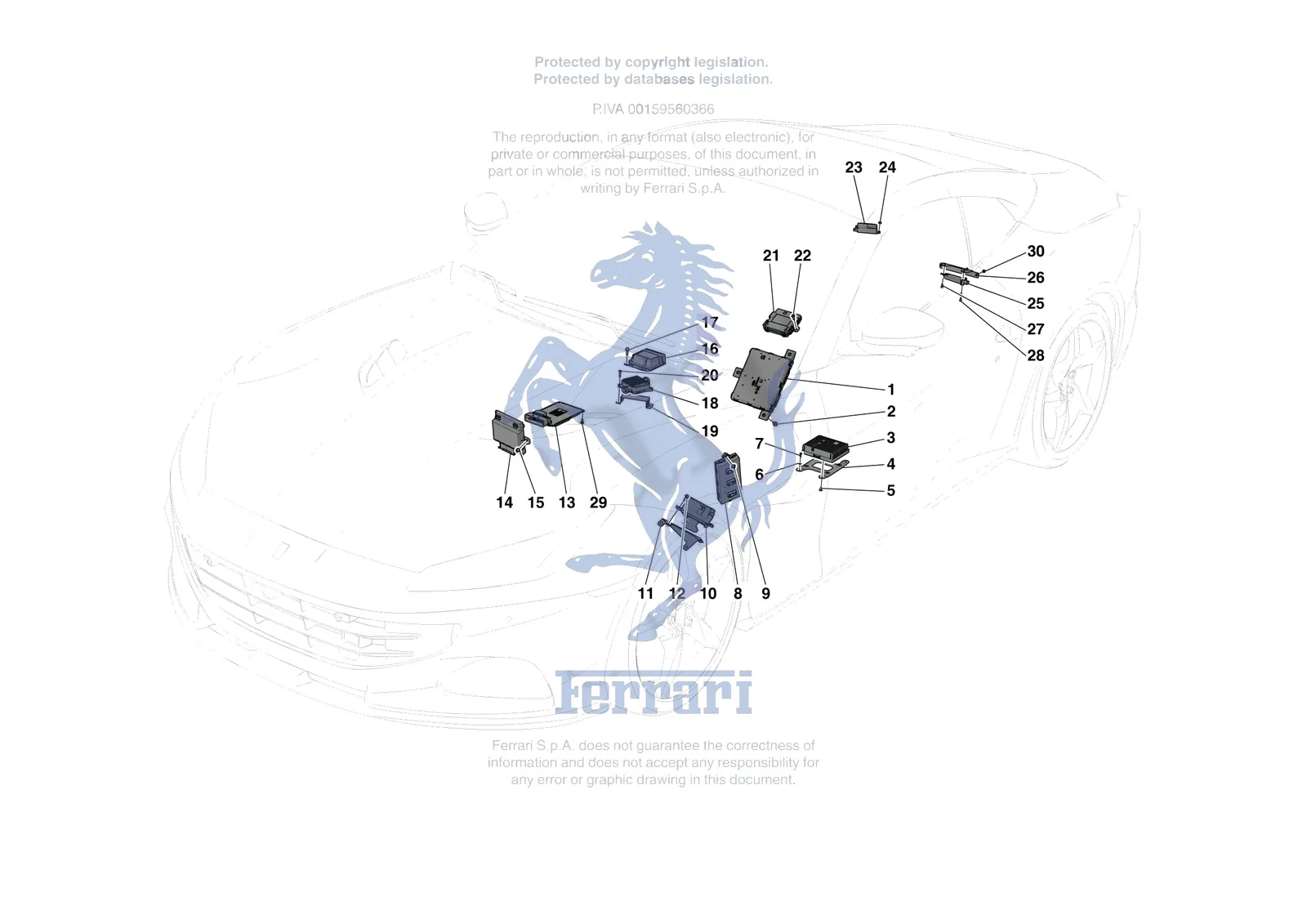

Exploded view of the [electrical system] - f.6 - electrical system control units on the Ferrari Portofino M, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0181.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 807409 | Ferrari Body Computer F164 L10 Dpi - 807409 | Superseded | Order 878632 instead | |
| 813747 | Ferrari Body Computer F164 L10 Dpi - 813747 | Superseded | Order 878632 instead | |
| 335121 | Ferrari Centralina Airbag F164 - 335121 | Superseded | Order 865078 instead | |
| 815023 | Ferrari Hvac Ecu - 815023 | Superseded | Order 898729 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 310779 | Ferrari Passive Start Control Unit - 310779 | Superseded | Order 328097 instead | |
| 317012 | Ferrari Passive Start ECU - 317012 | Superseded | Order 328098 instead | |
| 294559 | Ferrari PWM Command Signal For Fuel - 294559 | Superseded | Order 849386 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 878632 | Ferrari Body Computer - 878632 | $1,354.22 | Special order, ships in 7-14 days |
| 2 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
| 3 | 912726 | Ferrari ESE ECU - 912726 | $1,649.69 | Special order, ships in 7-14 days |
| 4 | 927790 | Ferrari ESE ECU Bracket - 927790 | $59.07 | Special order, ships in 7-14 days |
| 5 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 6 | 12642801 | Ferrari Washer - 12642801 | $0.19 | Available, ships in 3-6 days |
| 7 | 14303024 | Ferrari Allen Screw M4 x 12 TCEI - 14303024 | $1.63 | Available, ships in 3-6 days |
| 8 | 898729 | Ferrari HVAC Ecu - 898729 | $1,846.67 | Special order, ships in 7-14 days |
| 9 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 10 | 315386 | Ferrari Adaptive Headlight Node Ecu - 315386 | $491.74 | Special order, ships in 7-14 days |
| 11 | 277468 | Ferrari Node Fixing Bracket - 277468 | $46.75 | Available, ships in 3-6 days |
| 12 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 13 | 792306 | Ferrari Magneride ECU - 792306 | $1,871.30 | Special order, ships in 7-14 days |
| 14 | 264097 | Ferrari Voltage Stabilizer - 264097 | $969.98 | In stock |
| 15 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 16 | 865078 | Ferrari Airbag ECU - 865078 | $960.25 | Special order, ships in 7-14 days |
| 16 | 965034 | Ferrari Airbag Ecu - 965034 | $984.88 | Special order, ships in 7-14 days |
| 17 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 18 | 849386 | Ferrari PWM Command Signal for Fuel Pumps - 849386 | $688.45 | Special order, ships in 7-14 days |
| 19 | 815770 | Ferrari PWM ECU Shield Bracket - 815770 | $31.99 | Special order, ships in 7-14 days |
| 20 | 85834000 | Ferrari Screw M5 x 25 - 85834000 | $0.71 | Special order, ships in 7-14 days |
| 21 | 328097 | Ferrari Passive Start ECU - 328097 | $614.67 | Special order, ships in 7-14 days |
| 21 | 328098 | Ferrari Passive Start ECU - 328098 | $614.67 | Special order, ships in 7-14 days |
| 22 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 23 | 922522 | Ferrari Parking Sensor ECU - 922522 | $393.93 | Special order, ships in 7-14 days |
| 24 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 25 | 314815 | Ferrari Tpms ECU Antenna - 314815 | $983.50 | Special order, ships in 7-14 days |
| 25 | 314817 | Ferrari Tpms ECU Antenna - 314817 | $983.50 | Special order, ships in 7-14 days |
| 26 | 760499 | Ferrari TPMS Bracket - 760499 | $81.23 | Special order, ships in 7-14 days |
| 27 | 14304124 | Ferrari Screw TCEI M5 x 12 - 14304124 | $0.31 | Special order, ships in 7-14 days |
| 28 | 14358721 | Ferrari Screw 5x35 - 14358721 | $2.13 | Special order, ships in 7-14 days |
