Ferrari Portofino M — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari Portofino M, with 80 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

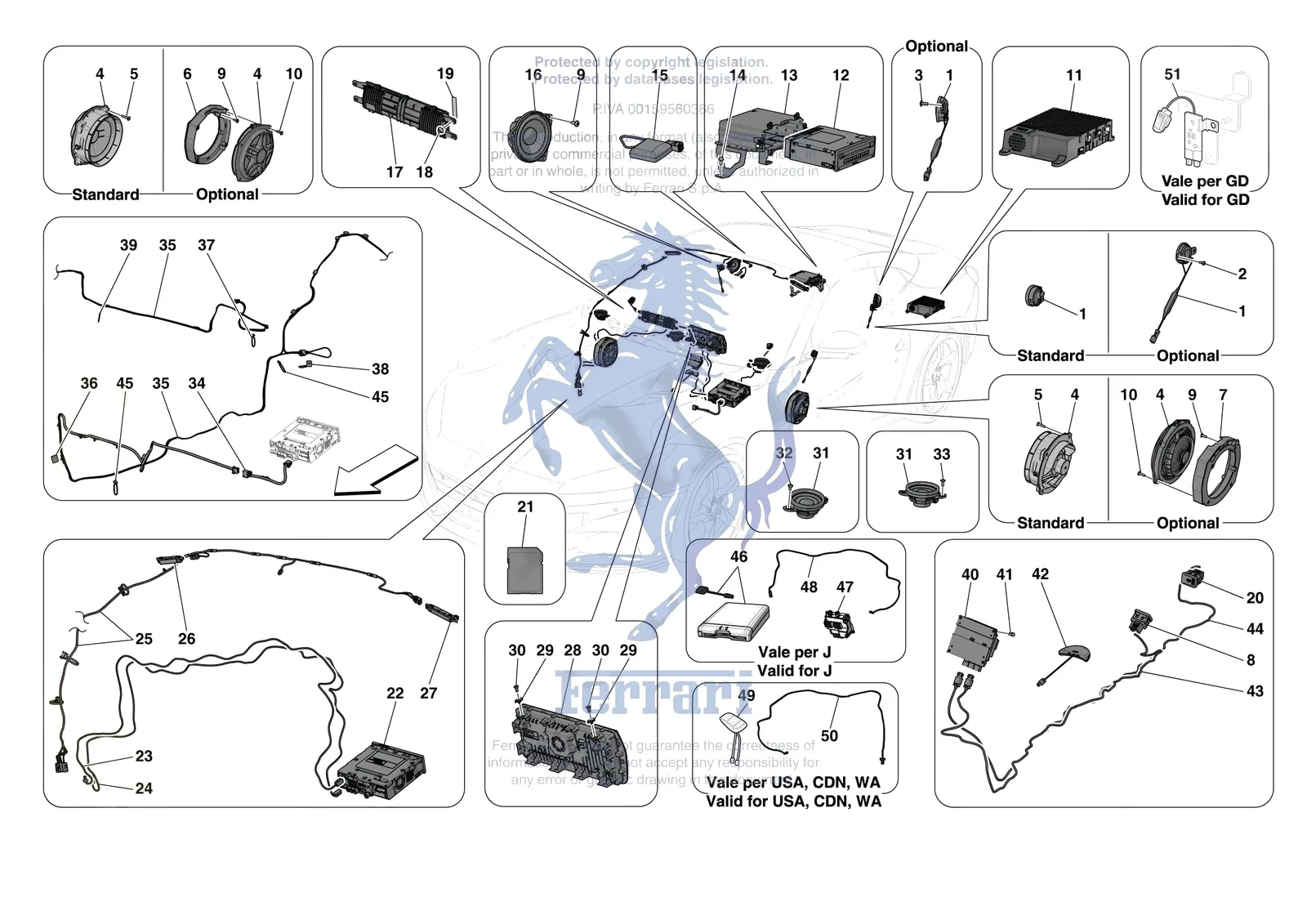

Ferrari Portofino M [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
84832400Ferrari Adhesive Plug - 84832400$2.59Special order, ships in 7-14 days
331727Ferrari Centre Dashboard Display - 331727SupersededOrder 334588 instead
337859Ferrari Dash Gps Extension - 337859SupersededOrder 341519 instead
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
334587Ferrari Passenger Display - 334587SupersededOrder 343169 instead
342785Ferrari Passenger Display - 342785SupersededOrder 343169 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
14303324Ferrari/Maserati Screw - 14303324$0.29In stock
1251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
1321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
215643975Ferrari Screw - 15643975$2.38Available, ships in 3-6 days
385692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
4328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
4334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
585833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
6260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
7260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
8303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
985692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
1085834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
11780726Ferrari 12-Channel Amplifier - 780726$8,629.62Special order, ships in 7-14 days
12318551Ferrari Dvd Reader - 318551$7,679.90Special order, ships in 7-14 days
13783004Ferrari Bracket - 783004$566.30Special order, ships in 7-14 days
1416296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
15789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
16253861Ferrari Twiddler - 253861$415.82Special order, ships in 7-14 days
17343169Ferrari Passenger Display - 343169$4,102.69Special order, ships in 7-14 days
1814039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
20848476Ferrari Presa Usb Smartphone Project - 848476$211.43Special order, ships in 7-14 days
22319084Ferrari Nit - 319084$7,250.75Special order, ships in 7-14 days
22319086Ferrari Nit - 319086$9,227.60Special order, ships in 7-14 days
22336645Ferrari Nit - 336645$7,154.61Special order, ships in 7-14 days
23783018Ferrari Dashboard DAB Antenna Cable - 783018$137.87Special order, ships in 7-14 days
24341519Ferrari Dash Gps Extension - 341519$98.46Special order, ships in 7-14 days
24783017Ferrari Dashboard GPS Antenna Cable - 783017$137.87Special order, ships in 7-14 days
25341517Ferrari Am/Fm/Fm2 Cable - 341517$270.83Special order, ships in 7-14 days
25342711Ferrari Am/Fm/Fm2/Dab/G Ps Cable - 342711$492.43Special order, ships in 7-14 days
25341156Ferrari Am/Fm/Fm2/Gps Cable - 341156$393.93Special order, ships in 7-14 days
25849356Ferrari Am/Fm/Fm2/Gps Cable - 849356$393.93Special order, ships in 7-14 days
26331962Ferrari Am/Fm Amplifier - 331962$189.31Special order, ships in 7-14 days
26771349Ferrari Am/Fm Amplifier - 771349$240.94Special order, ships in 7-14 days
27771350Ferrari Fm2/Dab Amplifier - 771350$344.21Special order, ships in 7-14 days
27771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
27771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
28334588Ferrari Centre Dashboard Display - 334588$10,379.01Contact us to order
2967278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
3014440634Ferrari SCREW - 14440634$0.31Available, ships in 3-6 days
31324658Ferrari Midrange - 324658$306.38Special order, ships in 7-14 days
3285692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
3385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
34769094Ferrari Dashboard Fibre Optic Cable - 769094$125.54Special order, ships in 7-14 days
34860077Ferrari Dashboard Fibre Optic Cable - 860077$123.09Special order, ships in 7-14 days
35771185Ferrari Fibra Ott.Abi.Dvd+Hifi F164 - 771185$984.88Special order, ships in 7-14 days
35860080Ferrari Passenger Compartment Fibre - 860080$763.27Special order, ships in 7-14 days
35771184Ferrari Passenger Compartment Fibre Optic Cable - 771184$812.51Special order, ships in 7-14 days
35771187Ferrari Passenger Compartment Fibre Optic Cable - 771187$812.51Special order, ships in 7-14 days
35860078Ferrari Passenger Compartment Fibre Optic Cable - 860078$615.54Special order, ships in 7-14 days
35860079Ferrari Passenger Compartment Fibre Optic Cable - 860079$566.30Special order, ships in 7-14 days
3684841400Ferrari Adhesive Plug - 84841400SupersededOrder 84832400 instead
37338182Ferrari Ring Clamp - 338182$0.17Special order, ships in 7-14 days
38756963Ferrari Fibre Optic Cable Mounting Bracket - 756963$19.42Special order, ships in 7-14 days
39338181Ferrari Retaining Clip - 338181$0.17Special order, ships in 7-14 days
40875005Ferrari USB Splitter - Apple Car Play Version - 875005$1,598.19Contact us to order
4114303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
42286160Ferrari Bluetooth Antenna - 286160$961.65Special order, ships in 7-14 days
43790254Ferrari Cavo Usb Splitter-Presa Base - 790254$517.04Special order, ships in 7-14 days
44790255Ferrari Cavo Usb Splitter-Pres.Carpl - 790255$615.54Special order, ships in 7-14 days
46867280Ferrari Dsrc Kit - 867280$4,362.61Special order, ships in 7-14 days
46887994Ferrari Dsrc Kit - 887994SupersededOrder 867280 instead
46336234Ferrari Dsrc/Vics Kit - 336234Price on requestContact us for price and availability
47875004Ferrari 4-WAY USB HUB - 875004Price on requestContact us for price and availability
48334358Ferrari Dsrc/Hub Cable - 334358$1,009.51Special order, ships in 7-14 days
49326887Ferrari SDARS/GNSS COMBO ANTENNA - 326887Price on requestContact us for price and availability
50341521Ferrari Dashboard Sdars Cable - 341521$98.46Special order, ships in 7-14 days
51325390Ferrari Bumper DAB Amplifier - 325390$443.17Special order, ships in 7-14 days
