Ferrari Portofino M — [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM (diagram 0186)

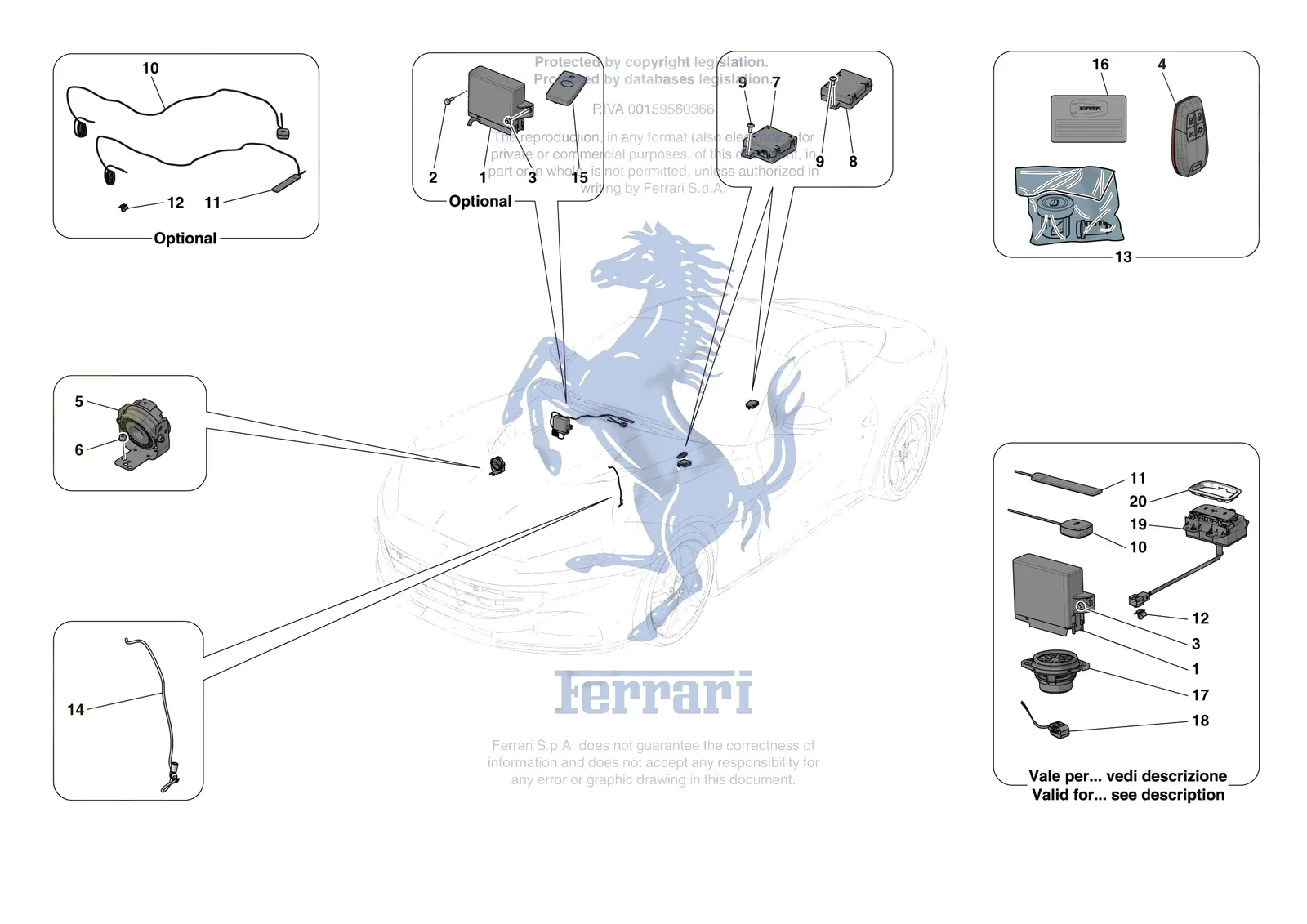

Exploded view of the [electrical system] - f.11 - anti-theft system on the Ferrari Portofino M, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0186.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 956025 | Ferrari E-Call TCU - 956025 | $3,526.61 | Special order, ships in 7-14 days |
| 1 | 330644 | Ferrari GLONASS ECU - 330644 | $5,109.76 | Special order, ships in 7-14 days |
| 1 | 855471 | Ferrari Glonass Ecu - 855471 | $5,149.63 | Special order, ships in 7-14 days |
| 1 | 824396 | Ferrari TCU Ecall / Svr - 824396 | $3,514.91 | Special order, ships in 7-14 days |
| 2 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 3 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 3 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 4 | 328404 | Ferrari Keyless Key Kit - 328404 | $1,549.03 | Special order, ships in 7-14 days |
| 5 | 336779 | Ferrari Compl. Anti-Theft System Siren - 336779 | $262.24 | Special order, ships in 7-14 days |
| 6 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 7 | 293416 | Ferrari Master Dipole Anti-Lift Sensor - 293416 | $721.22 | Special order, ships in 7-14 days |
| 8 | 294011 | Ferrari Slave Dipole Sensor - 294011 | $437.71 | Special order, ships in 7-14 days |
| 9 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 10 | 336506 | Ferrari Glonass Gps Antenna - 336506 | $102.69 | Special order, ships in 7-14 days |
| 11 | 336507 | Ferrari Glonass Gsm Antenna - 336507 | $102.69 | Special order, ships in 7-14 days |
| 12 | 11223887 | Ferrari Clip - 11223887 | $1.02 | Special order, ships in 7-14 days |
| 13 | 866260 | Ferrari Key And Block Kit - 866260 | $2,807.70 | Special order, ships in 7-14 days |
| 13 | 866261 | Ferrari Key And Block Kit - 866261 | $2,807.70 | Special order, ships in 7-14 days |
| 14 | 824398 | Ferrari RF Antenna For Svr - 824398 | $72.10 | Special order, ships in 7-14 days |
| 15 | 824397 | Ferrari Driver Card For Svr - 824397 | $491.74 | Special order, ships in 7-14 days |
| 16 | 6326163 | Ferrari Secret Card Label For Keys - 6326163 | $4.39 | Special order, ships in 7-14 days |
| 17 | 332825 | Ferrari Glonass Speaker - 332825 | $78.66 | Special order, ships in 7-14 days |
| 18 | 333337 | Ferrari Gsm Microphone - 333337 | $319.62 | Special order, ships in 7-14 days |
| 19 | 343201 | Ferrari Switch Glonass 142M Vs - 343201 | $2,905.45 | Special order, ships in 7-14 days |
| 20 | 792528 | Ferrari Era Glonass Switch Surround - 792528 | $110.78 | Special order, ships in 7-14 days |
