Ferrari Portofino — Engine Suspension (diagram 005)

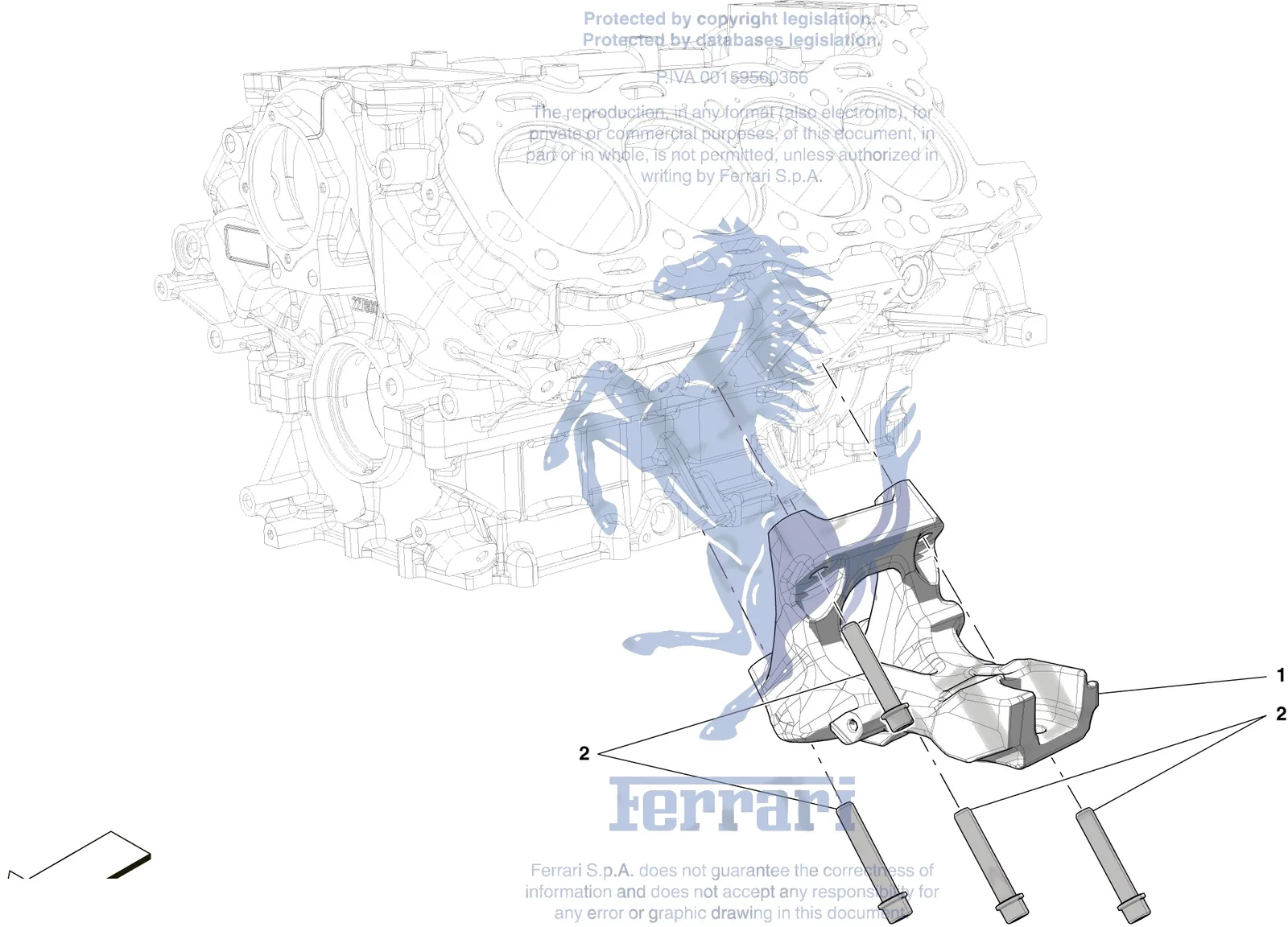

Exploded view of the engine suspension on the Ferrari Portofino, with 3 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 792282 | Ferrari LH Engine Strut - 792282 | $590.91 | Special order, ships in 7-14 days |
| 1 | 792276 | Ferrari RH Engine Strut - 792276 | $566.30 | Special order, ships in 7-14 days |
| 2 | 769538 | Ferrari Screw M12 x 1.5 x 65 - 769538 | $5.04 | Available, ships in 3-6 days |
