Ferrari Portofino — Engine Cooling System Pipes (diagram 030)

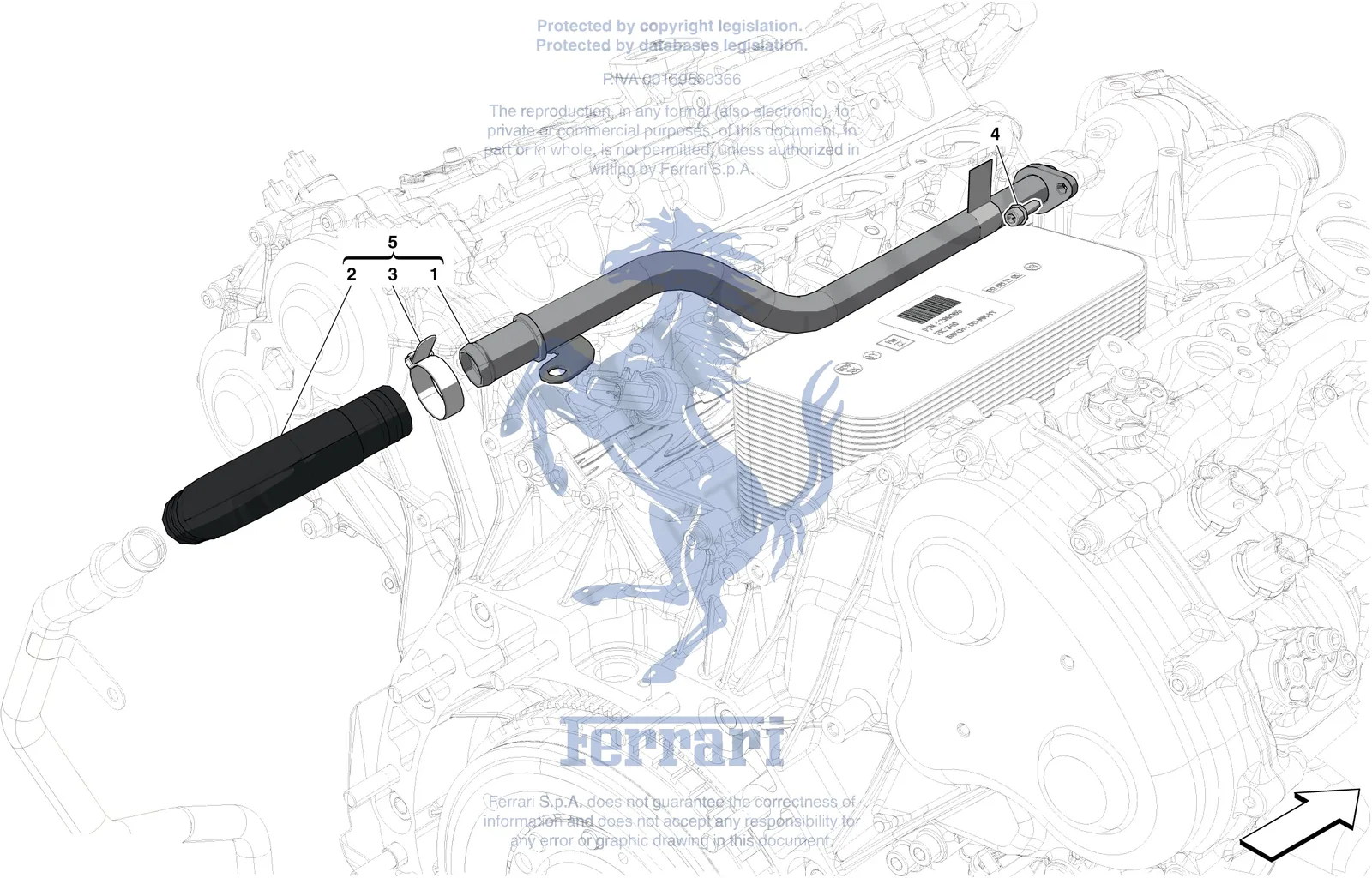

Exploded view of the engine cooling system pipes on the Ferrari Portofino, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 328729 | Ferrari Compl. Piping - 328729 | Superseded | Order 770867 instead |
| 2 | 766922 | Ferrari Compl. Piping - 766922 | Superseded | Order 770867 instead |
| 3 | 262109 | Ferrari Screw Collar - 262109 | $2.01 | Available, ships in 3-6 days |
| 4 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 5 | 770867 | Ferrari Compl. Piping - 770867 | $369.30 | Special order, ships in 7-14 days |
| 10860270 | Ferrari Screw Collar - 10860270 | $1.94 | Available, ships in 3-6 days |
