Ferrari Portofino — Exhaust System - Front Section (diagram 055)

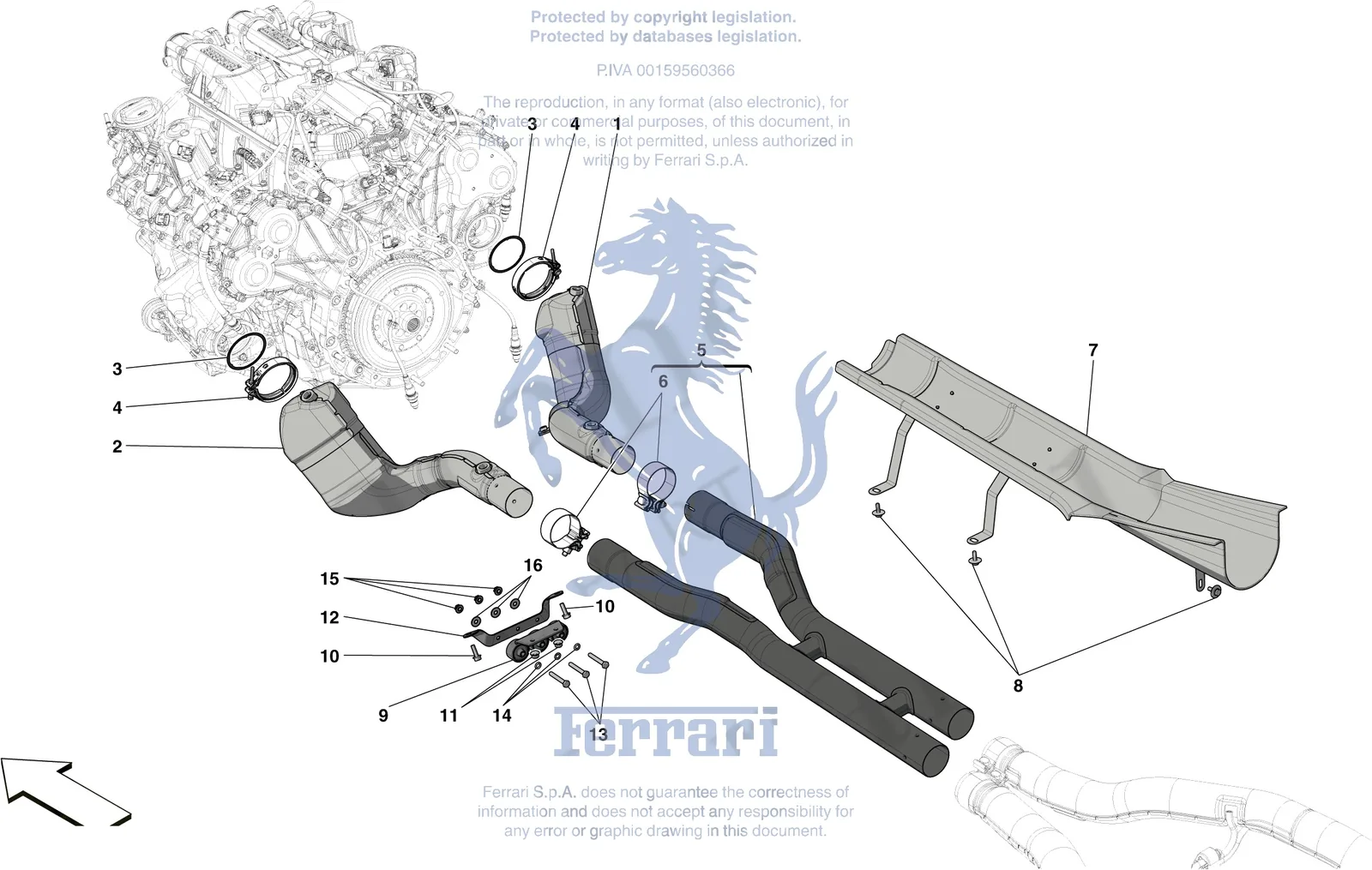

Exploded view of the exhaust system - front section on the Ferrari Portofino, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | LA5416SCAT | Ferrari Portofino - Larini 'Sports' Exhaust Catalysts - LA5416SCAT | $5,356.86 | In stock |
| 1 | LA5417RACEP | Ferrari Portofino - Larini 'Race' Exhaust Pipes - LA5417RACEP | $2,731.34 | In stock |
| 1 | 760975 | Ferrari Catalizzatore Dx Cpl - 760975 | $9,401.76 | Special order, ships in 7-14 days |
| 2 | 760978 | Ferrari Catalizzatore Sx Cpl - 760978 | $9,401.76 | Special order, ships in 7-14 days |
| 3 | 283172 | Ferrari Gasket - 283172 | $37.18 | Special order, ships in 7-14 days |
| 4 | 287210 | Ferrari V-Clamp For Fastening Catalytic Converter To Turbo - 287210 | $83.15 | Available, ships in 3-6 days |
| 5 | LA5428CSCENT | Ferrari Portofino - Larini 'Club Sport' Exhaust Center Section - LA5428CSCENT | $1,756.45 | In stock |
| 6 | 296892 | Ferrari Ring Clamp - 296892 | $161.94 | Special order, ships in 7-14 days |
| 7 | 749045 | Ferrari Riparo Calore Alberotrasmiss - 749045 | $489.54 | Special order, ships in 7-14 days |
| 8 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 9 | 334913 | Ferrari Compl. Catalytic Converter Mounting Bracket - 334913 | $369.30 | Special order, ships in 7-14 days |
| 10 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
| 11 | 14040711 | Ferrari Nut M8 - 14040711 | $0.79 | Available, ships in 3-6 days |
| 12 | 765427 | Ferrari Catalytic Converter Mounting Bracket - 765427 | $86.15 | Special order, ships in 7-14 days |
| 13 | 16044321 | Ferrari Screw M8 x 55 - 16044321 | $1.05 | Available, ships in 3-6 days |
| 14 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 15 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 16 | 11193974 | Ferrari Washer - 11193974 | $0.13 | Available, ships in 3-6 days |
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead |
