Ferrari Portofino — Engine Cooling Radiators (diagram 062)

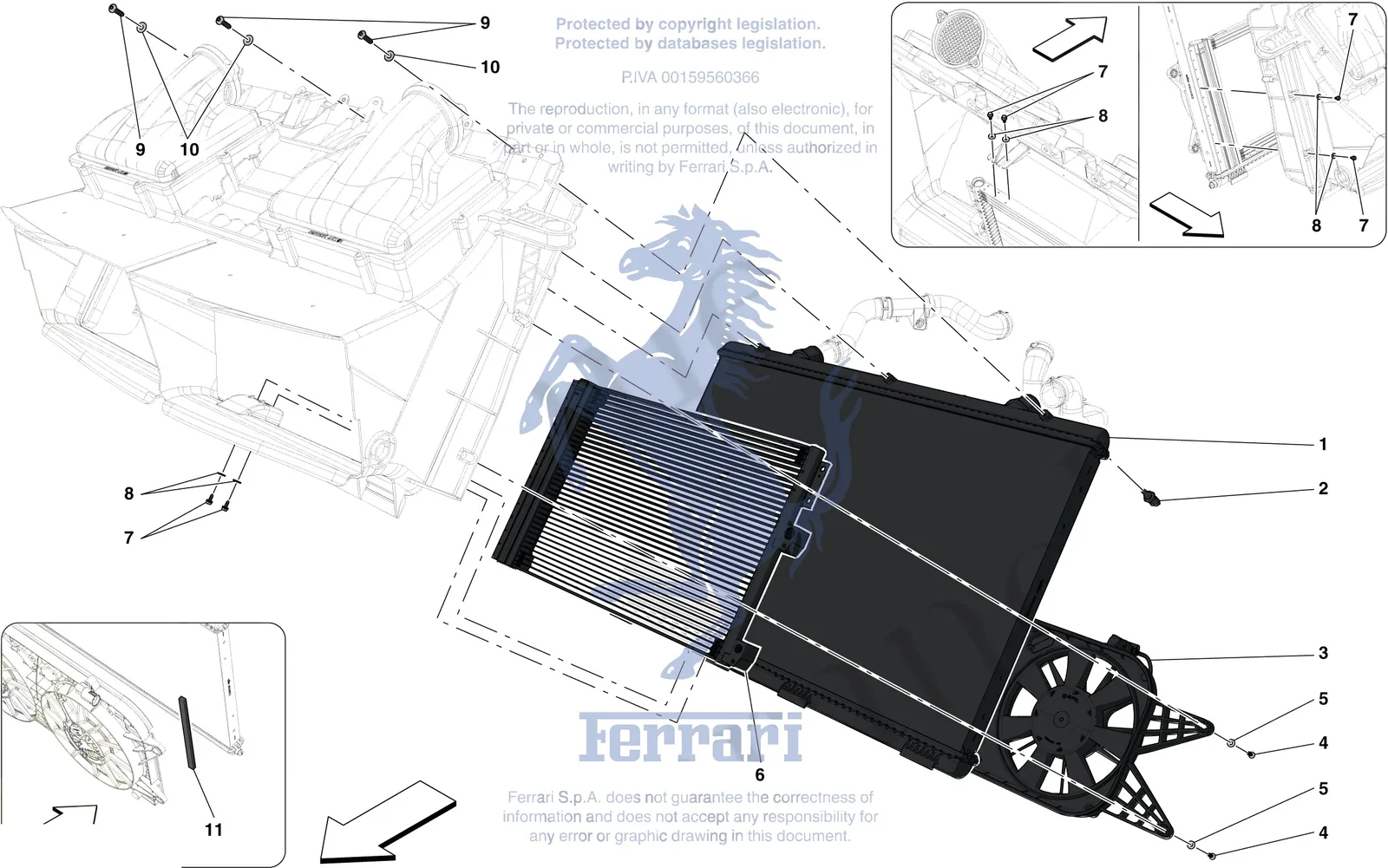

Exploded view of the engine cooling radiators on the Ferrari Portofino, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 336011 | Ferrari Radiatore Acqua Core Sp. - 336011 | $1,899.43 | Special order, ships in 7-14 days |
| 2 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 3 | 299048 | Ferrari Electric Fan Cowl - 299048 | $2,924.21 | Special order, ships in 7-14 days |
| 4 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 5 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 6 | 240590 | Ferrari AC Condenser - 240590 | $546.04 | In stock |
| 7 | 81973300 | Ferrari Screw M4.5 x 12 TBEI - 81973300 | $3.03 | Available, ships in 3-6 days |
| 7 | 242618 | Ferrari Screw - 242618 | Superseded | Order 829172 instead |
| 8 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 11 | 329291 | Ferrari Rubber Shim - 329291 | $4.56 | Special order, ships in 7-14 days |
