Ferrari Portofino — Front Lid Substructure (diagram 104)

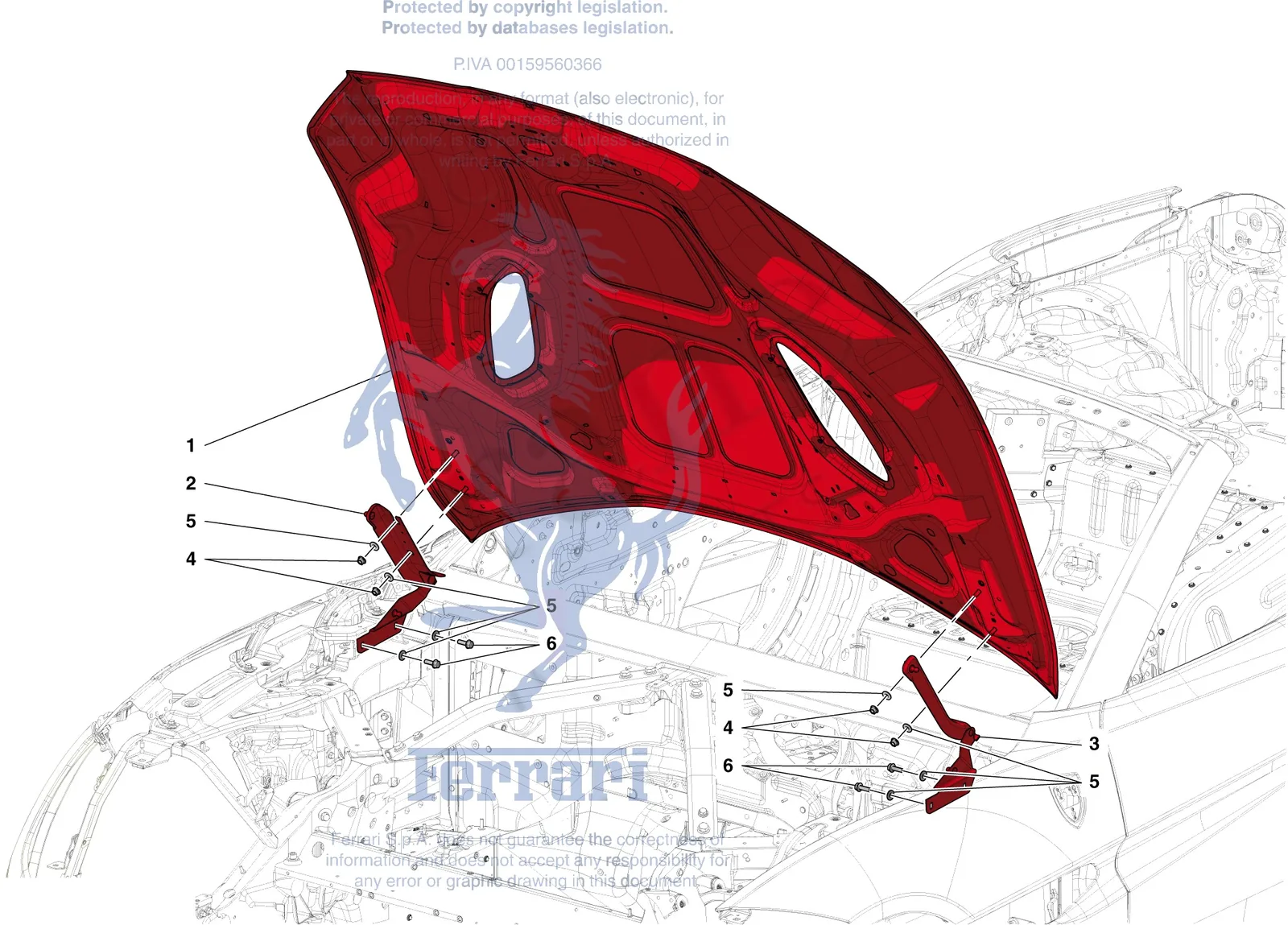

Exploded view of the front lid substructure on the Ferrari Portofino, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 88698411 | Ferrari Compl. Lid Skin And Substruc - 88698411 | $9,373.78 | Special order, ships in 7-14 days |
| 2 | 69994300 | Ferrari RH Hinge - 69994300 | $132.94 | Available, ships in 3-6 days |
| 3 | 69994200 | Ferrari LH Hinge - 69994200 | $132.94 | Available, ships in 3-6 days |
| 4 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 5 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 5 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 6 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead |
