Ferrari Portofino — DASHBOARD - DUCTS -Not for RHD- (diagram 152)

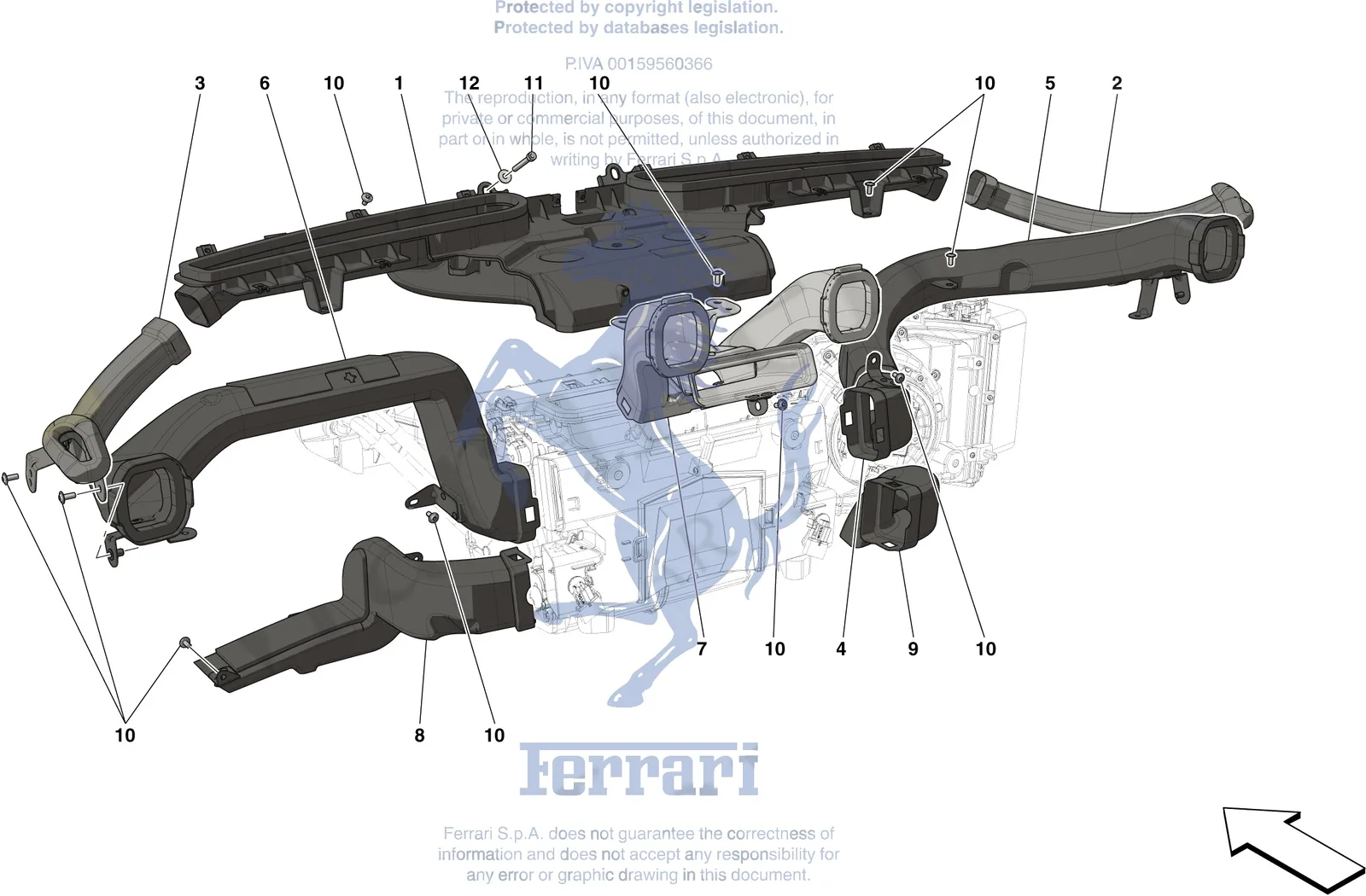

Exploded view of the dashboard - ducts -not for rhd- on the Ferrari Portofino, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 89067700 | Ferrari Condotto Defroster Cpl - 89067700 | $418.56 | Special order, ships in 7-14 days |
| 2 | 89068000 | Ferrari RH Demister Duct - 89068000 | $128.01 | Special order, ships in 7-14 days |
| 3 | 89067900 | Ferrari LH Demister Duct - 89067900 | $128.01 | Special order, ships in 7-14 days |
| 4 | 88656200 | Ferrari RH Passenger Ventilation Con - 88656200 | $128.01 | Special order, ships in 7-14 days |
| 5 | 89097300 | Ferrari RH Passenger Side Ventilatio - 89097300 | $206.81 | Special order, ships in 7-14 days |
| 6 | 89083400 | Ferrari LH Driver Side Ventilation D - 89083400 | $238.82 | Special order, ships in 7-14 days |
| 7 | 89068200 | Ferrari Centre Ventilation Duct - 89068200 | $216.66 | Special order, ships in 7-14 days |
| 8 | 89223100 | Ferrari Driver Side Footwell Ventila - 89223100 | $219.11 | Special order, ships in 7-14 days |
| 9 | 89223200 | Ferrari Passenger Side Footwell Vent - 89223200 | $149.96 | Special order, ships in 7-14 days |
| 10 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 11 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 11 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 12 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead |
