Ferrari Purosangue — [ENGINE] - B.5 - PISTONS AND CONNECTING RODS (diagram 0008)

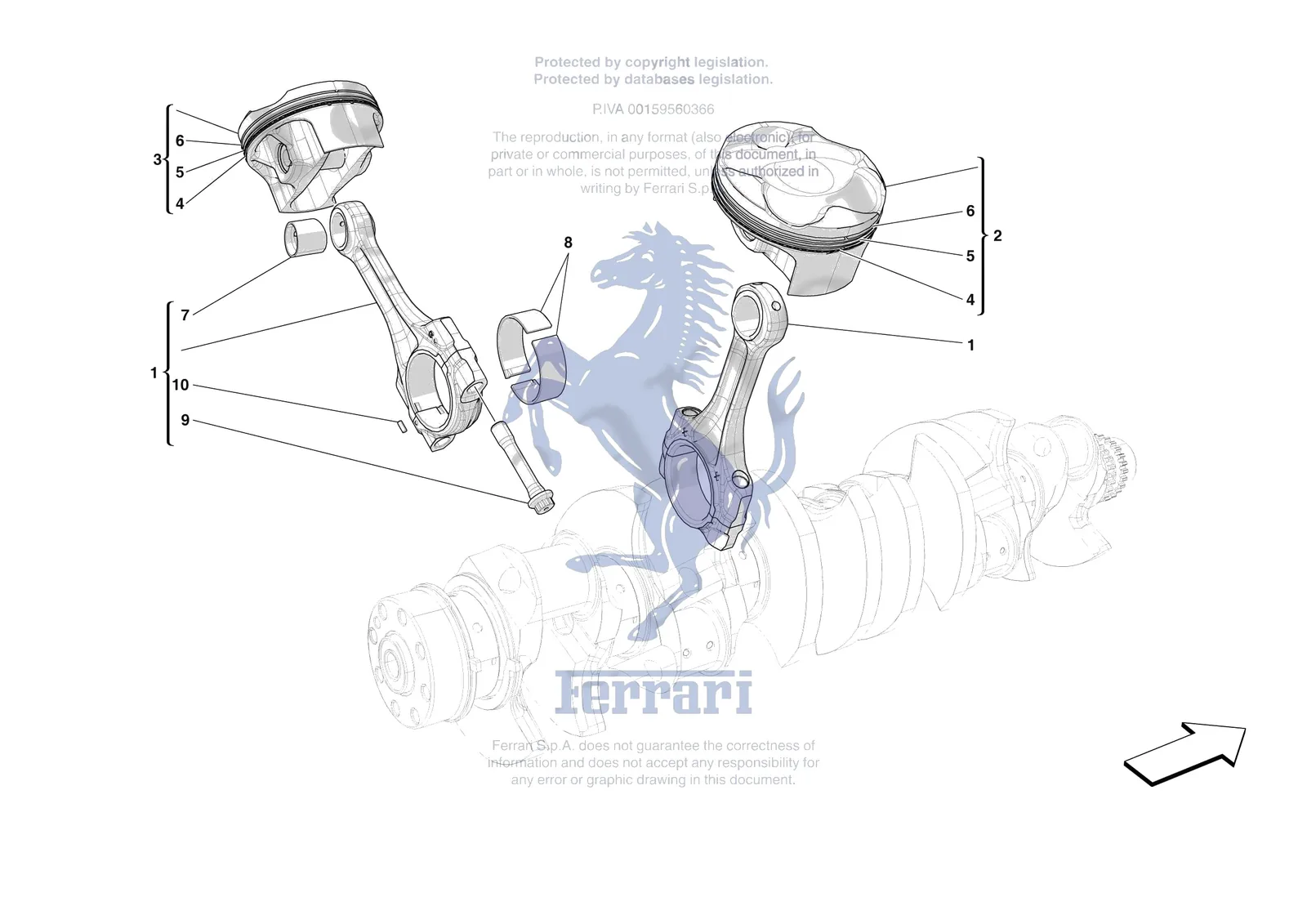

Exploded view of the [engine] - b.5 - pistons and connecting rods on the Ferrari Purosangue, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.5 - PISTONS AND CONNECTING RODS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0008.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 327386 | Ferrari Compl. Connecting Rod And Cap - 327386 | $490.90 | Special order, ships in 7-14 days | |
| 1 | 824391 | Ferrari Compl. Connecting Rod And Cap - 824391 | $493.10 | Special order, ships in 7-14 days |
| 2 | 857188 | Ferrari Compl. RH Piston - 857188 | $1,034.12 | Special order, ships in 7-14 days |
| 3 | 857189 | Ferrari Compl. LH Piston - 857189 | $1,034.12 | Special order, ships in 7-14 days |
| 4 | 292751 | Ferrari Alignment Pin - 292751 | $44.24 | Special order, ships in 7-14 days |
| 5 | 966897 | Ferrari Compl. Piston Ring Set - 966897 | $1,107.99 | Special order, ships in 7-14 days |
| 6 | 281320 | Ferrari Con Rod Bolt - 281320 | $295.03 | Special order, ships in 7-14 days |
| 7 | 300758 | Ferrari Bushing - 300758 | $66.35 | Special order, ships in 7-14 days |
| 8 | 304680 | Ferrari Con Rod Half-Bearing - 304680 | $31.93 | Special order, ships in 7-14 days |
| 8 | 304681 | Ferrari Connecting Rod Half-Bearing - 304681 | $34.40 | Special order, ships in 7-14 days |
| 8 | 823846 | Ferrari Connecting Rod Half-Bearing - 823846 | $31.93 | Special order, ships in 7-14 days |
| 8 | 910540 | Ferrari Connecting Rod Half-Bearing - 910540 | $34.40 | Special order, ships in 7-14 days |
| 8 | 910542 | Ferrari Connecting Rod Half-Bearing - 910542 | $34.44 | Special order, ships in 7-14 days |
