Ferrari Purosangue — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)

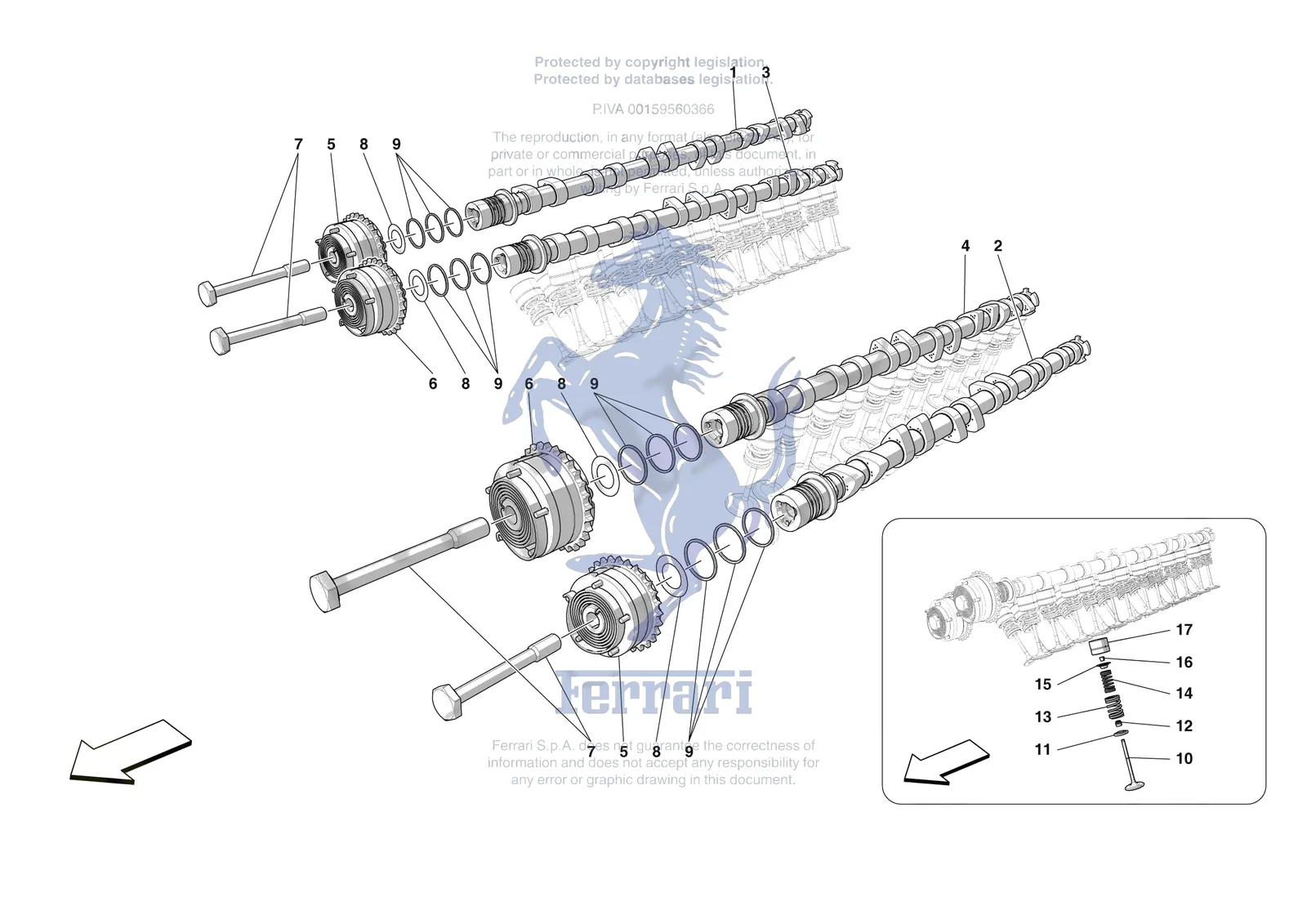

Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari Purosangue, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0013.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 321297 | Ferrari RH Exhaust Camshaft - 321297 | $856.46 | Special order, ships in 7-14 days |
| 2 | 321298 | Ferrari LH Exhaust Camshaft - 321298 | $856.46 | Special order, ships in 7-14 days |
| 3 | 874260 | Ferrari RH Intake Camshaft - 874260 | $1,143.56 | Special order, ships in 7-14 days |
| 4 | 874261 | Ferrari LH Intake Camshaft - 874261 | $1,143.56 | Special order, ships in 7-14 days |
| 5 | 248020 | Ferrari Exhaust Phase Variator - 248020 | $811.38 | Available, ships in 3-6 days |
| 6 | 241906 | Ferrari Intake Timing Variator - 241906 | $811.38 | Available, ships in 3-6 days |
| 7 | 254892 | Ferrari Screw M14 x 1.5 - 254892 | $26.20 | Available, ships in 3-6 days |
| 8 | 240559 | Ferrari Diamond Washer - 240559 | $17.90 | Available, ships in 3-6 days |
| 9 | 197975 | Ferrari Sealing Ring - 197975 | $14.62 | Available, ships in 3-6 days |
| 10 | 319636 | Ferrari Exhaust Valve - 319636 | $130.29 | Special order, ships in 7-14 days |
| 10 | 319722 | Ferrari Intake Valve - 319722 | $66.35 | Special order, ships in 7-14 days |
| 11 | 321017 | Ferrari Lower Valve Spring Cap - 321017 | $12.27 | Special order, ships in 7-14 days |
| 11 | 985548 | Ferrari Lower Valve Spring Cap - 985548 | $20.41 | Special order, ships in 7-14 days |
| 12 | 221473 | Ferrari Valve Stem Seal - 221473 | $2.22 | In stock |
| 13 | 789285 | Ferrari External Valve Return Spring - 789285 | $22.85 | Special order, ships in 7-14 days |
| 14 | 789304 | Ferrari Internal Valve Return Spring - 789304 | $17.19 | Special order, ships in 7-14 days |
| 15 | 320911 | Ferrari Upper Valve Spring Cap - 320911 | $15.72 | Special order, ships in 7-14 days |
| 16 | 179763 | Ferrari Valve Collets Per Half - 179763 | $1.40 | Available, ships in 3-6 days |
| 17 | 255431 | Ferrari Hydraulic Tappet Dia 35 - 255431 | $73.73 | Special order, ships in 7-14 days |
