Ferrari Purosangue — [ENGINE] - B.9 - TIMING SYSTEM DRIVE (diagram 0014)

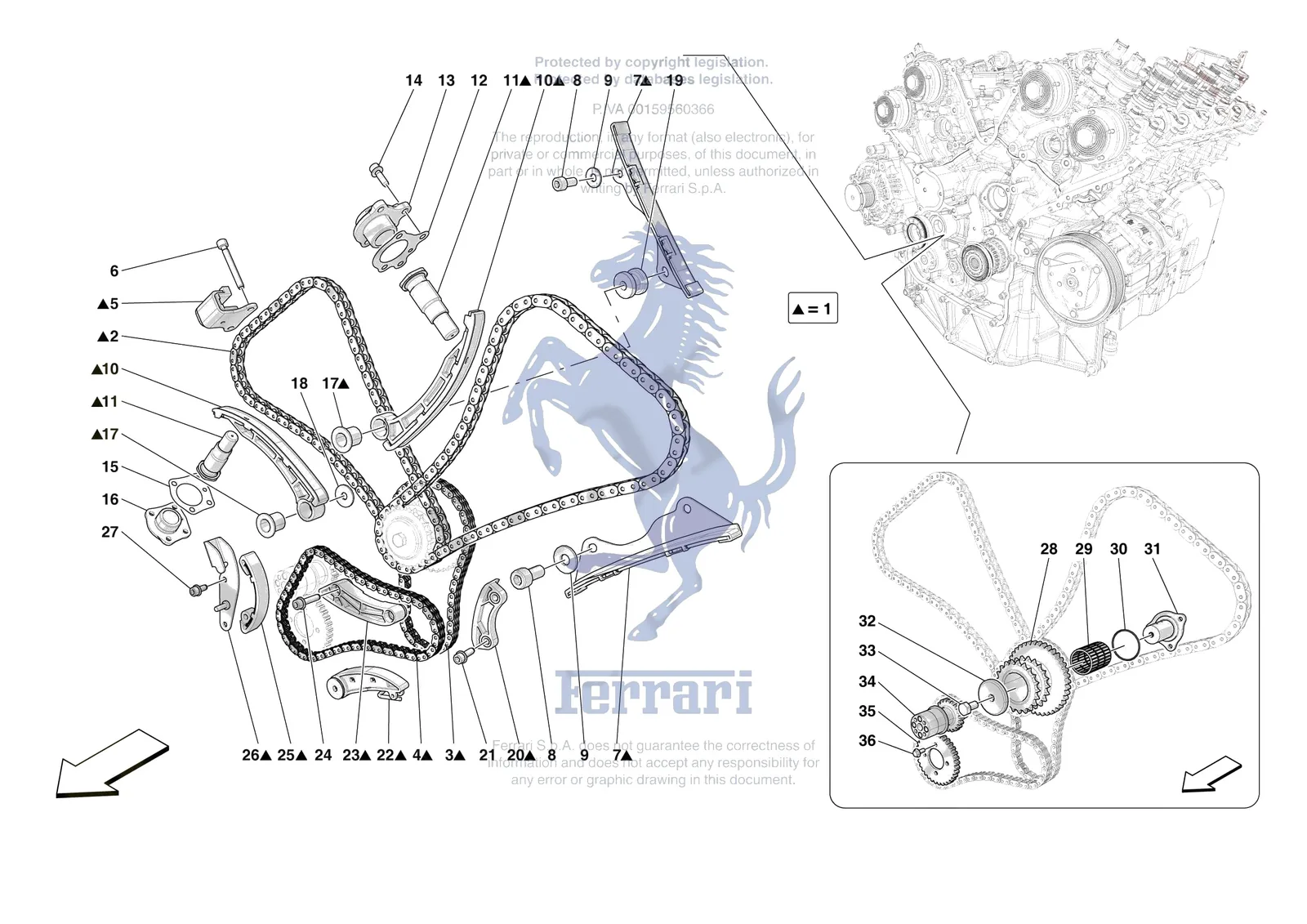

Exploded view of the [engine] - b.9 - timing system drive on the Ferrari Purosangue, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.9 - TIMING SYSTEM DRIVE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0014.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 16043121 | Ferrari Bolt 8X15 Uni 188 - 16043121 | Superseded | Order 16043124 instead | |
| 265105 | Ferrari Chain - 265105 | Price on request | Contact us for price and availability | |
| 295376 | Ferrari Chain - 295376 | $176.22 | Special order, ships in 7-14 days | |
| 286228 | Ferrari Drive Gear - 286228 | $611.91 | Special order, ships in 7-14 days | |
| 265178 | Ferrari Fixed Shoe - 265178 | $119.91 | Special order, ships in 7-14 days | |
| 267198 | Ferrari Gasket - 267198 | $15.91 | Special order, ships in 7-14 days | |
| 295397 | Ferrari Primary Chain - 295397 | $1,639.98 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 55038014 | Ferrari Compl. Valve Timing And Pump - 55038014 | $2,755.36 | Special order, ships in 7-14 days |
| 1 | 943605 | Ferrari Compl. Valve Timing And Pump - 943605 | $2,879.65 | Special order, ships in 7-14 days |
| 2 | 254263 | Ferrari Chain - 254263 | $168.67 | Special order, ships in 7-14 days |
| 3 | 312629 | Ferrari Chain - 312629 | $737.61 | Special order, ships in 7-14 days |
| 4 | 770471 | Ferrari Chain - 770471 | $1,280.35 | Special order, ships in 7-14 days |
| 5 | 239566 | Ferrari Fixed Shoe - 239566 | $76.19 | Special order, ships in 7-14 days |
| 6 | 243721 | Ferrari Screw With Washer M6 x 45 TCEI - 243721 | $0.98 | Available, ships in 3-6 days |
| 7 | 198034 | Ferrari Fixed Shoe Complete - 198034 | $113.08 | Special order, ships in 7-14 days |
| 8 | 14306224 | Ferrari Screw M8 x 16 - 14306224 | $0.38 | Available, ships in 3-6 days |
| 9 | 163759 | Ferrari Washer - 163759 | $26.20 | Special order, ships in 7-14 days |
| 10 | 260614 | Ferrari Mobile Shoe - 260614 | $663.86 | Special order, ships in 7-14 days |
| 11 | 55038015 | Ferrari Hydraulic Chain Tensioner - 55038015 | $615.54 | Special order, ships in 7-14 days |
| 11 | 856050 | Ferrari Hydraulic Chain Tensioner - 856050 | $393.93 | Special order, ships in 7-14 days |
| 12 | 317022 | Ferrari Gasket - 317022 | $5.14 | Available, ships in 3-6 days |
| 13 | 985132 | Ferrari Bush - 985132 | $145.25 | Special order, ships in 7-14 days |
| 14 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 15 | 317023 | Ferrari Gasket - 317023 | $15.72 | Special order, ships in 7-14 days |
| 16 | 268314 | Ferrari Bushing - 268314 | $77.84 | Special order, ships in 7-14 days |
| 17 | 175303 | Ferrari Bush For Timing Guide - 175303 | $56.52 | Special order, ships in 7-14 days |
| 18 | 175306 | Ferrari Washer - 175306 | $7.84 | Special order, ships in 7-14 days |
| 19 | 183929 | Ferrari Bush - 183929 | $15.28 | Special order, ships in 7-14 days |
| 20 | 309750 | Ferrari Fixed Shoe - 309750 | $120.46 | Special order, ships in 7-14 days |
| 21 | 282395 | Ferrari Screw M6 x 20 - 282395 | $1.36 | Special order, ships in 7-14 days |
| 22 | 904999 | Ferrari Mobile Shoe - 904999 | $639.27 | Special order, ships in 7-14 days |
| 23 | 747316 | Ferrari Fixed Shoe - 747316 | $393.93 | Special order, ships in 7-14 days |
| 24 | 282397 | Ferrari Screw 6x25 - 282397 | $1.02 | Available, ships in 3-6 days |
| 25 | 257626 | Ferrari Shoe - 257626 | $152.41 | Special order, ships in 7-14 days |
| 26 | 265180 | Ferrari Mounting - 265180 | $117.99 | Special order, ships in 7-14 days |
| 27 | 282392 | Ferrari Screw 6x14 - 282392 | $0.96 | Available, ships in 3-6 days |
| 28 | 299589 | Ferrari Drive Gear - 299589 | $737.61 | Special order, ships in 7-14 days |
| 29 | 187742 | Ferrari Roller Bearing - 187742 | $18.55 | Special order, ships in 7-14 days |
| 30 | 154191 | Ferrari O-Ring - 154191 | $1.42 | In stock |
| 31 | 289896 | Ferrari Mounting - 289896 | $319.62 | Special order, ships in 7-14 days |
| 32 | 194262 | Ferrari Spacer - 194262 | $63.90 | Special order, ships in 7-14 days |
| 33 | 16043124 | Ferrari Screw M8 x 14 - 16043124 | $0.33 | Special order, ships in 7-14 days |
| 34 | 811668 | Ferrari Gear Wheel - 811668 | $689.41 | Special order, ships in 7-14 days |
| 35 | 811659 | Ferrari Gear Wheel - 811659 | $566.30 | Special order, ships in 7-14 days |
| 36 | 186668 | Ferrari Screw M5 X 12 - 186668 | $28.39 | Special order, ships in 7-14 days |
