Ferrari Purosangue — [ENGINE] - B.12 - ENGINE OIL PUMP (diagram 0017)

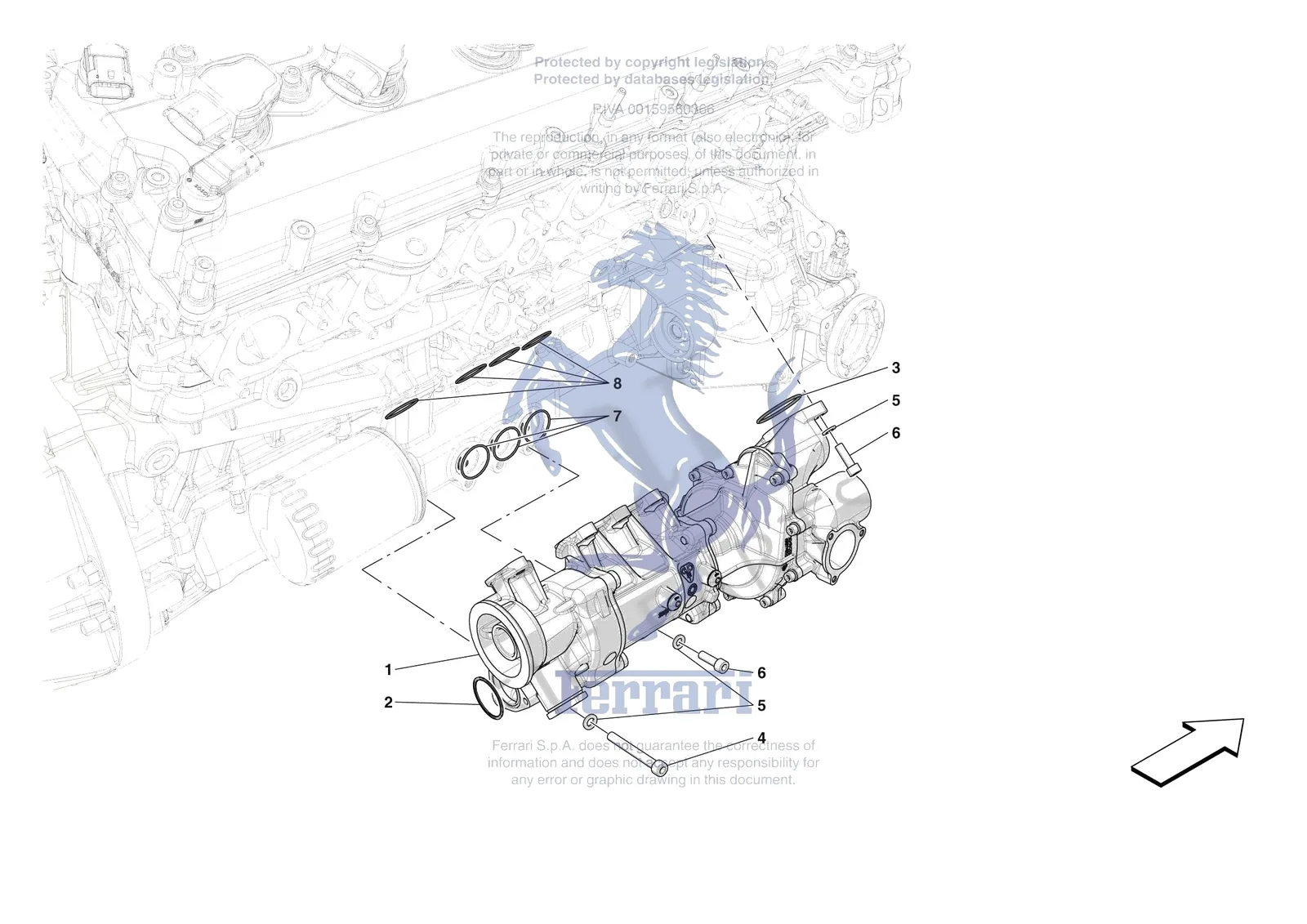

Exploded view of the [engine] - b.12 - engine oil pump on the Ferrari Purosangue, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.12 - ENGINE OIL PUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0017.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 55041089 | Ferrari Oil / Water Pumps - 55041089 | $7,841.70 | Special order, ships in 7-14 days |
| 1 | 741885 | Ferrari Oil / Water Pumps - 741885 | Superseded | Order 55041089 instead |
| 2 | 862084 | Ferrari Gasket - 862084 | $7.84 | Available, ships in 3-6 days |
| 3 | 132829 | Ferrari O-Ring - 132829 | $1.93 | Available, ships in 3-6 days |
| 3 | 851175 | Ferrari Q-RING GASKET - 851175 | Price on request | Contact us for price and availability |
| 4 | 14359324 | Ferrari Screw M8 x 65 TCEI - 14359324 | $1.61 | Available, ships in 3-6 days |
| 5 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 6 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 7 | 148225 | Ferrari O-Ring - 148225 | $1.42 | In stock |
| 7 | 851174 | Ferrari Q-RING GASKET - 851174 | $10.31 | Special order, ships in 7-14 days |
| 8 | 133938 | Ferrari O - Ring - 133938 | $1.93 | In stock |
| 8 | 851173 | Ferrari Q-RING GASKET - 851173 | $10.31 | Special order, ships in 7-14 days |
