Ferrari Purosangue — [ENGINE] - B.14 - ENGINE INTAKE DUCT (diagram 0019)
Exploded view of the [engine] - b.14 - engine intake duct on the Ferrari Purosangue, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

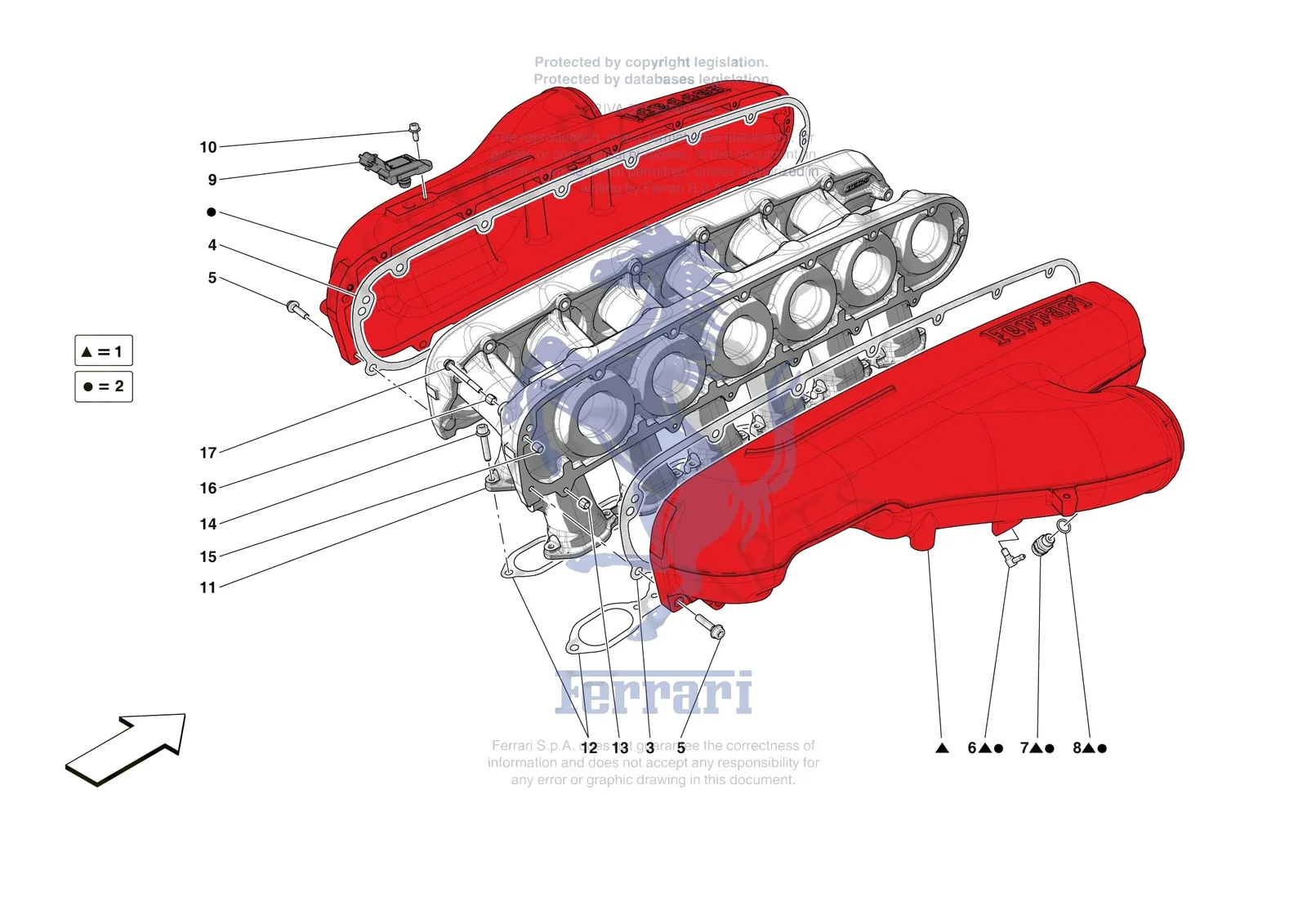

![Ferrari Purosangue [ENGINE] - B.14 - ENGINE INTAKE DUCT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0019.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 1 | 875927 | Ferrari Compl. RH Intake Plenum - 875927 | $2,778.82 | Special order, ships in 7-14 days |
| 2 | 874325 | Ferrari Compl. LH Intake Plenum - 874325 | $2,942.96 | Special order, ships in 7-14 days |
| 3 | 817068 | Ferrari RH Manifold Plenum Gasket - 817068 | Superseded | Order 898269 instead |
| 3 | 898269 | Ferrari RH Manifold Plenum Gasket - 898269 | $241.27 | Special order, ships in 7-14 days |
| 4 | 817069 | Ferrari LH Manifold Plenum Gasket - 817069 | Superseded | Order 898270 instead |
| 4 | 898270 | Ferrari LH Manifold Plenum Gasket - 898270 | $241.27 | Special order, ships in 7-14 days |
| 5 | 323493 | Ferrari Screw - 323493 | $2.13 | Special order, ships in 7-14 days |
| 6 | 268875 | Ferrari Connector - 268875 | $78.66 | Special order, ships in 7-14 days |
| 7 | 776285 | Ferrari CONNECTOR - 776285 | Price on request | Contact us for price and availability |
| 8 | 10261160 | Ferrari Washer - 10261160 | $3.26 | Available, ships in 3-6 days |
| 9 | 282849 | Ferrari Pressure Sensor - 282849 | $61.16 | Special order, ships in 7-14 days |
| 10 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
| 11 | 770720 | Ferrari Compl. Intake Manifold - 770720 | Price on request | Contact us for price and availability |
| 11 | 770721 | Ferrari Compl. Intake Manifold - 770721 | Price on request | Contact us for price and availability |
| 12 | 316503 | Ferrari Intake Manifold Gasket - 316503 | $34.99 | In stock |
| 13 | 329629 | Ferrari Plastic Bush - 329629 | $0.33 | Special order, ships in 7-14 days |
| 14 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 15 | 102725 | Ferrari/Maserati Dowel - 102725 | $2.79 | In stock |
| 17 | 812125 | Ferrari Screw - 812125 | $1.30 | Special order, ships in 7-14 days |
