Ferrari Purosangue — [ENGINE] - B.31 - ELECTRIC STARTER MOTOR (diagram 0036)

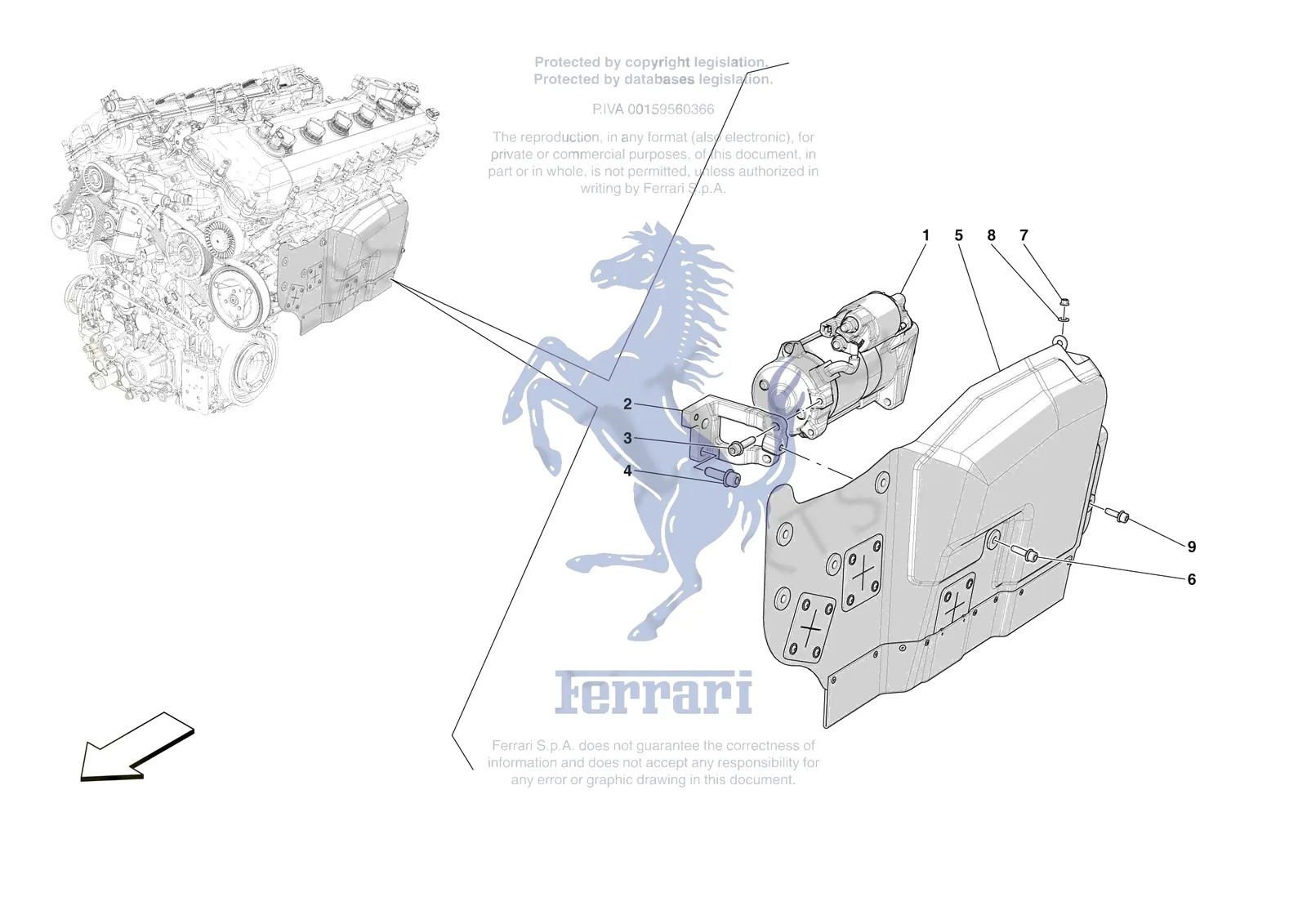

Exploded view of the [engine] - b.31 - electric starter motor on the Ferrari Purosangue, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.31 - ELECTRIC STARTER MOTOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 1 | 903853 | Ferrari Starter Motor - 903853 | $1,873.35 | Special order, ships in 7-14 days |
| 2 | 919664 | Ferrari Plate - 919664 | $226.19 | Special order, ships in 7-14 days |
| 3 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 4 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 5 | 817381 | Ferrari Compl. Starter Motor Heat Sh - 817381 | $738.64 | Special order, ships in 7-14 days |
| 6 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 7 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
| 8 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
| 9 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
