Ferrari Purosangue — [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES (diagram 0043)

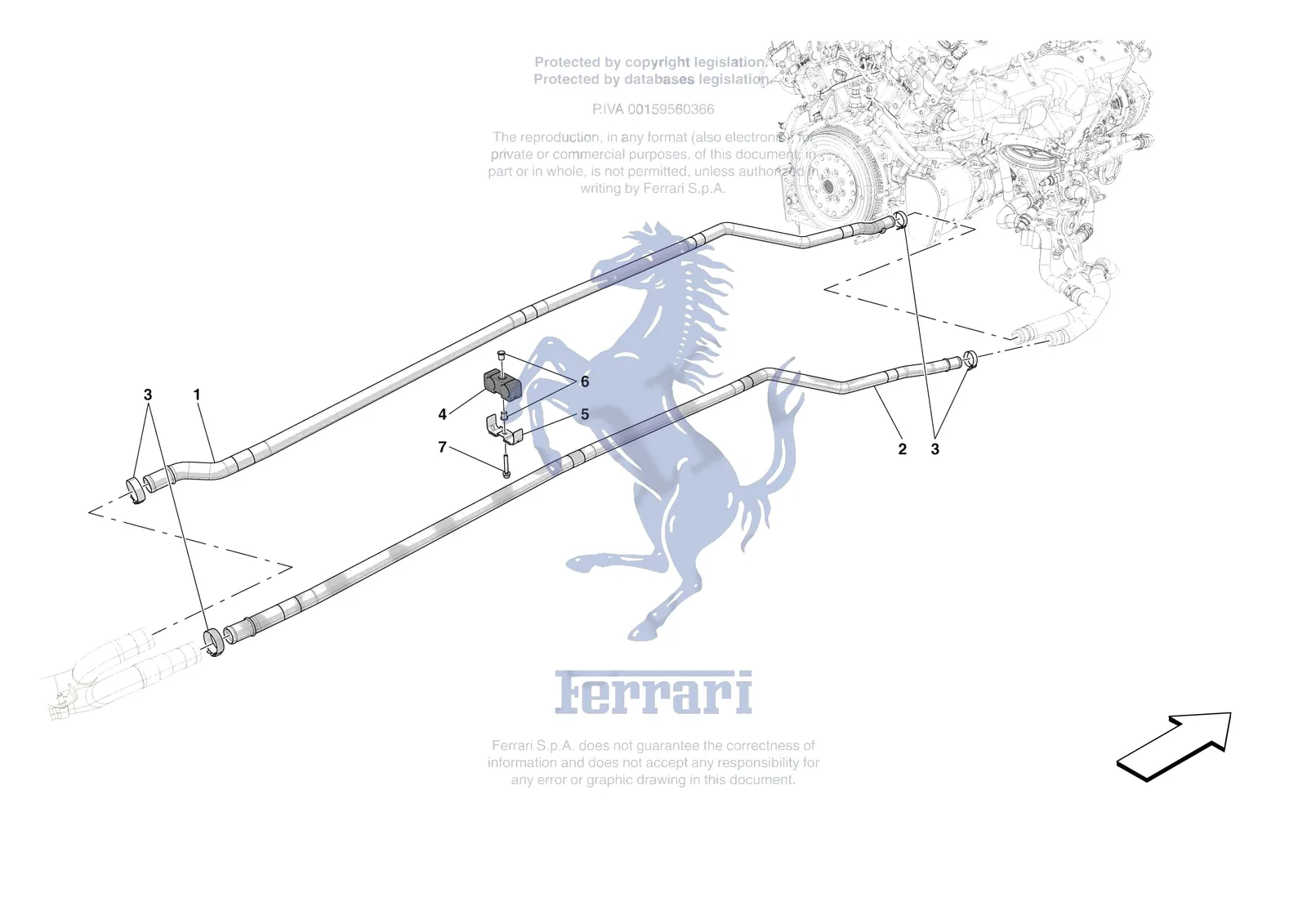

Exploded view of the [gearbox] - c.03.01 - gearbox oil heat exchanger and pipes - front-underbody pipes on the Ferrari Purosangue, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0043.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 1 | 785505 | Ferrari Underbody Water Delivery Pip - 785505 | $320.06 | Special order, ships in 7-14 days |
| 2 | 785503 | Ferrari Underbody Water Return Pipe - 785503 | $295.43 | Special order, ships in 7-14 days |
| 3 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 4 | 329367 | Ferrari Gogna Gomma X Tubi 2 - 329367 | $13.24 | Special order, ships in 7-14 days |
| 5 | 329366 | Ferrari Retainer Block Plate - 329366 | $13.74 | Available, ships in 3-6 days |
| 6 | 329368 | Ferrari Retainer Block Bush Diam.23 - 329368 | $1.49 | Available, ships in 3-6 days |
| 7 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
