Ferrari Purosangue — [GEARBOX] - C.5 - CLUTCH HOUSING (diagram 0047)

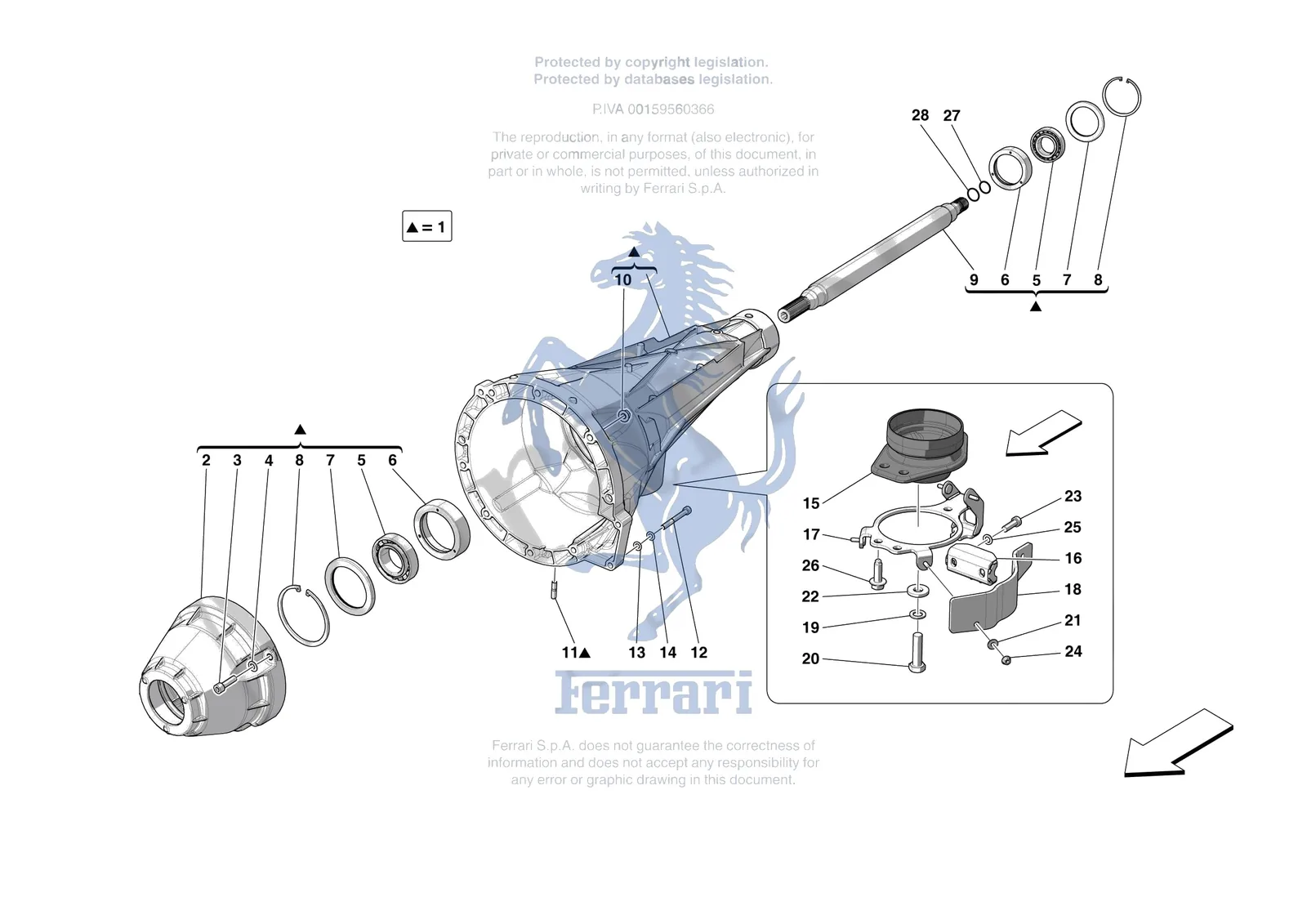

Exploded view of the [gearbox] - c.5 - clutch housing on the Ferrari Purosangue, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [GEARBOX] - C.5 - CLUTCH HOUSING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0047.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13543121 | Ferrari Stud - 13543121 | Superseded | Order 13543124 instead | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 777569 | Ferrari Compl. Transmission Housing - 777569 | $3,467.85 | Special order, ships in 7-14 days |
| 2 | 868810 | Ferrari Housing Bearing Mounting Fla - 868810 | $1,723.56 | Special order, ships in 7-14 days |
| 3 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 4 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 5 | 252524 | Ferrari Bearing Complete With Inner Race - 252524 | $1,349.58 | Special order, ships in 7-14 days |
| 6 | 318975 | Ferrari Snap Ring - 318975 | $524.51 | Special order, ships in 7-14 days |
| 7 | 253627 | Ferrari Containment Ring - 253627 | $393.38 | Special order, ships in 7-14 days |
| 8 | 11062474 | Ferrari Snap Ring - 11062474 | $10.46 | Available, ships in 3-6 days |
| 9 | 777115 | Ferrari GKN TRANSMISSION HOUSING SHAFT - 777115 | Price on request | Contact us for price and availability |
| 10 | 14059421 | Ferrari Flanged Nut 10x1.25 - 14059421 | $0.92 | Available, ships in 3-6 days |
| 11 | 13543124 | Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124 | $13.53 | Special order, ships in 7-14 days |
| 12 | 14309024 | Ferrari Allen Screw 8x70 - 14309024 | $2.82 | Available, ships in 3-6 days |
| 14 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 15 | 247141 | Ferrari Rubber Bushing - 247141 | $319.62 | Available, ships in 3-6 days |
| 16 | 269246 | Ferrari Retainer Bracket - 269246 | $152.62 | Available, ships in 3-6 days |
| 17 | 915290 | Ferrari Bush Travel Limiter Bracket - 915290 | $201.59 | Special order, ships in 7-14 days |
| 18 | 746950 | Ferrari LH Transmission Housing Bush - 746950 | $177.25 | Special order, ships in 7-14 days |
| 18 | 747430 | Ferrari RH Transmission Housing Bush - 747430 | $177.25 | Special order, ships in 7-14 days |
| 19 | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 20 | 11599524 | Ferrari Screw - 11599524 | Superseded | Order 11599534 instead |
| 20 | 11599534 | Ferrari Screw - 11599534 | $3.91 | Available, ships in 3-6 days |
| 21 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 22 | 12648524 | Ferrari Washer - 12648524 | $1.09 | Available, ships in 3-6 days |
| 23 | 13028734 | Ferrari Allen Screw M8 x 25 - 13028734 | $0.92 | Available, ships in 3-6 days |
| 24 | 14058311 | Ferrari Flanged Nut M5 x 5 - 14058311 | $0.46 | Available, ships in 3-6 days |
| 25 | 14499401 | Ferrari Washer - 14499401 | $0.54 | Available, ships in 3-6 days |
| 25 | 14499424 | Ferrari Washer - 14499424 | Superseded | Order 14499401 instead |
| 26 | 18754324 | Ferrari Screw M10 x 1.25 x 32 - 18754324 | $3.03 | Available, ships in 3-6 days |
| 27 | 777627 | Ferrari O-Ring Black - 777627 | $3.91 | Special order, ships in 7-14 days |
| 28 | 777631 | Ferrari O-Ring Green - 777631 | $1.23 | Special order, ships in 7-14 days |
