Ferrari Purosangue — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0052)

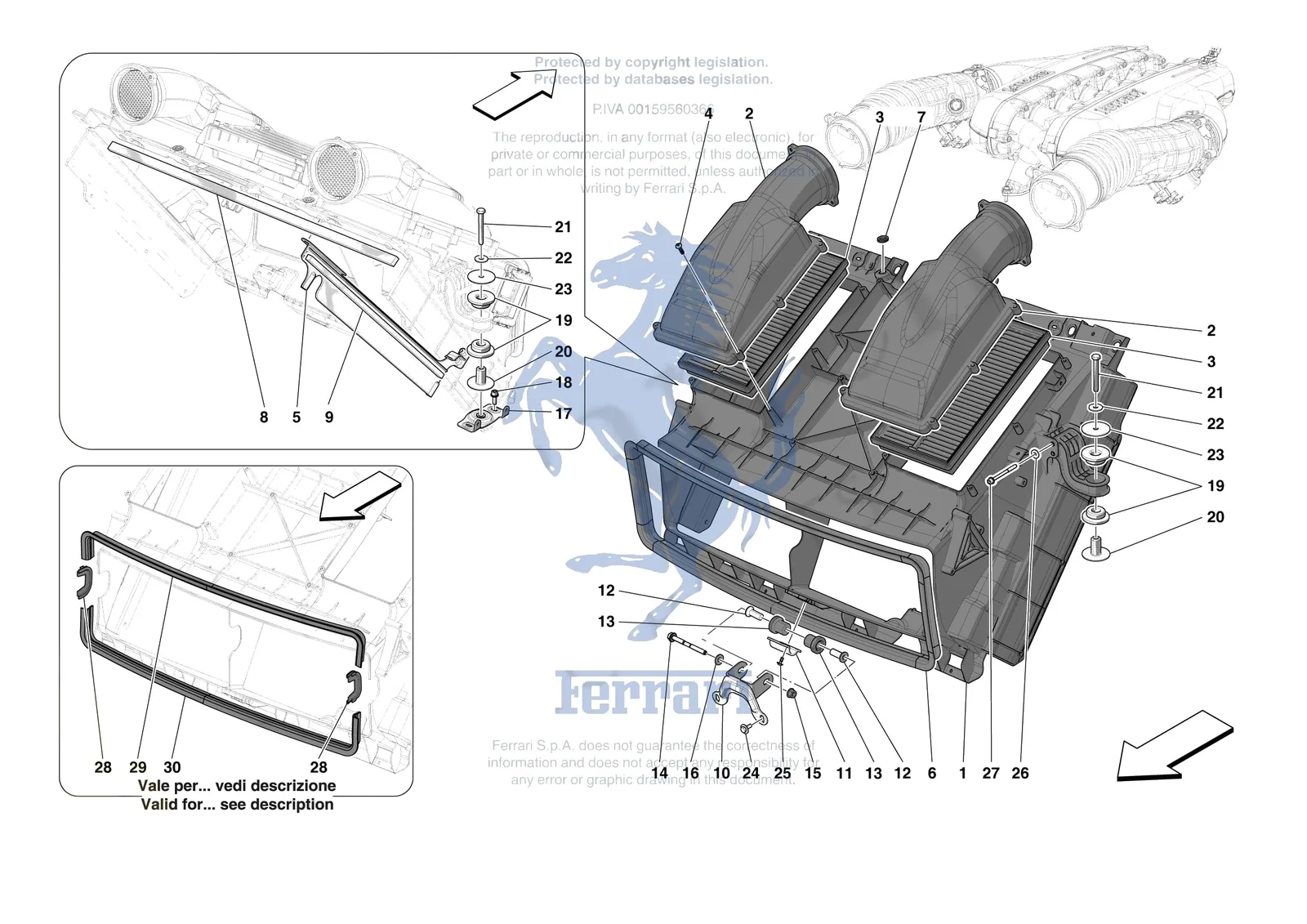

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari Purosangue, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
291689Ferrari Air Filter - 291689SupersededOrder 812789 instead
842754Ferrari Air Filter Element - 842754SupersededOrder 812789 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
55090546Ferrari Fender Mounting Seal - 55090546$73.95Available, ships in 3-6 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
1762680Ferrari Compl. Air Intake Duct - 762680$787.90Special order, ships in 7-14 days
1762737Ferrari Compl. Duct - 762737$787.90Special order, ships in 7-14 days
2850158Ferrari Filter Box Cover - 850158$123.09Special order, ships in 7-14 days
3802766Ferrari Air Filter - 802766$327.81Available, ships in 3-6 days
3812789Ferrari Air Filter - 812789$298.98In stock
4308398Ferrari Screw - 308398$0.92Special order, ships in 7-14 days
5850122Ferrari Centre Cowl Fastener Bridge - 850122$41.82Special order, ships in 7-14 days
6857217Ferrari Fender Mounting Seal - 857217SupersededOrder 55090546 instead
785663600Ferrari Rubber Seal - 85663600$17.19Special order, ships in 7-14 days
8868940Ferrari Upper Water Radiator Seal - 868940$54.68Special order, ships in 7-14 days
9944324Ferrari Lateral Radiator Seal - 944324$32.79Special order, ships in 7-14 days
10868985Ferrari Duct Lower Bracket Mount - 868985$64.00Special order, ships in 7-14 days
11333233Ferrari Lower Duct Fastener Bracket - 333233$27.06Special order, ships in 7-14 days
12197585Ferrari Bushing - 197585$9.07Special order, ships in 7-14 days
13197584Ferrari Rubber Bushing - 197584$5.44Available, ships in 3-6 days
1483743900Ferrari Screw M8 x 90 - 83743900$6.96Available, ships in 3-6 days
1514058511Ferrari Nut M8 x 8 - 14058511$0.40Special order, ships in 7-14 days
1612646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
17340839Ferrari Duct Adjuster - 340839$36.86Special order, ships in 7-14 days
18231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
19138926Ferrari Rubber Spacer - 138926$8.72Available, ships in 3-6 days
20343007Ferrari Bush for Upper Duct Brackets - 343007$36.86Special order, ships in 7-14 days
2116044534Ferrari Screw M8 x 65 - 16044534$3.03Available, ships in 3-6 days
2213578321Ferrari Washer D.8.15-24x2 - 13578321$1.04Available, ships in 3-6 days
23227430Ferrari Washer D.50-8.5 - 227430$4.12Available, ships in 3-6 days
24792394Ferrari Screw TE M6 x 18 - 792394$0.84Available, ships in 3-6 days
25332833Ferrari Screw - 332833$2.82Special order, ships in 7-14 days
2612647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
27231626Ferrari Screw M6 x 70 - 231626$1.61Available, ships in 3-6 days
29857219Ferrari Upper Duct Gasket - 857219$50.31Special order, ships in 7-14 days
30857220Ferrari Duct Lower Seal - 857220$52.50Special order, ships in 7-14 days
