Ferrari Purosangue — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0057)

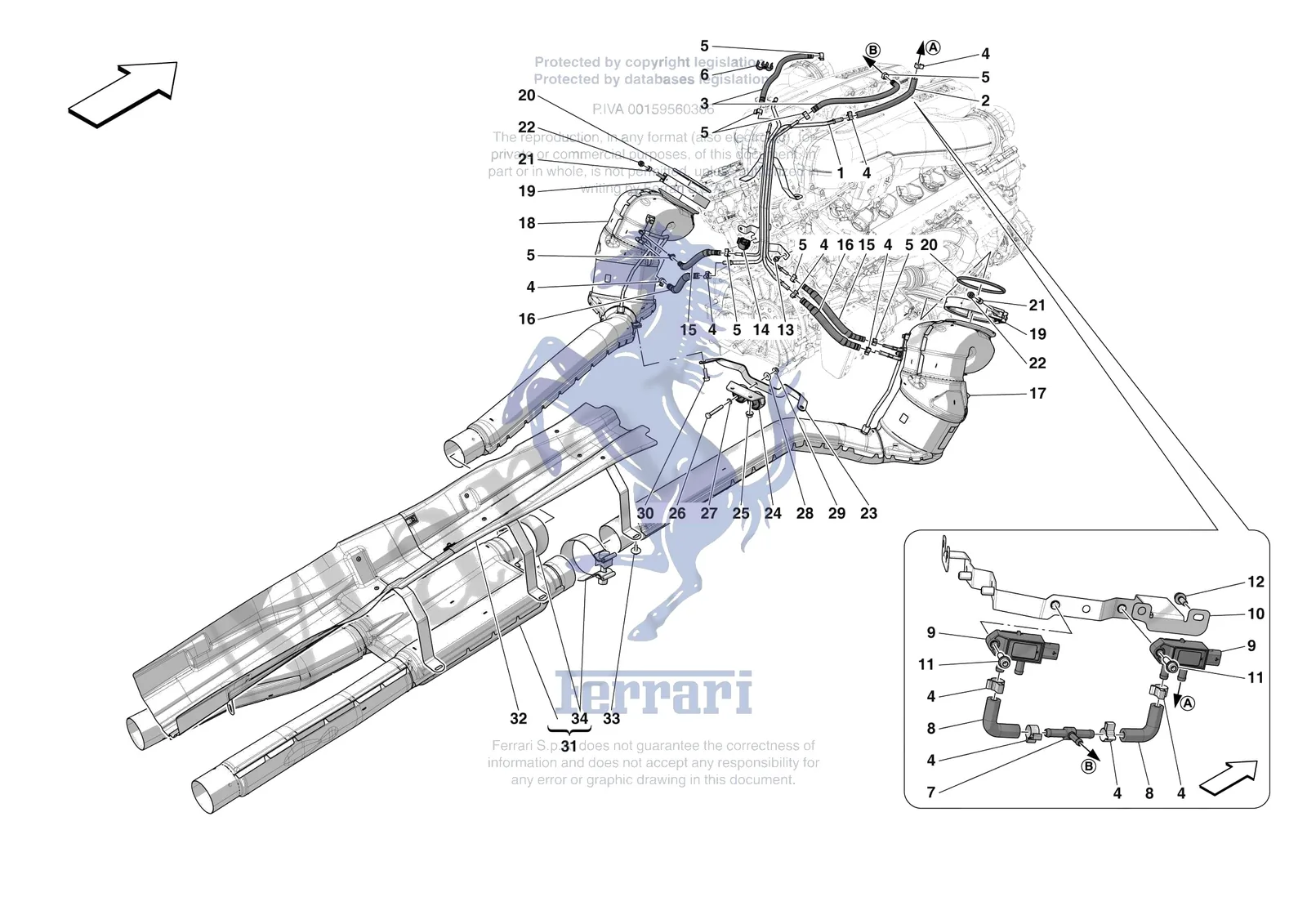

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari Purosangue, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0057.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 772706 | Ferrari Compl. Pipes - 772706 | $689.41 | Special order, ships in 7-14 days |
| 2 | 838804 | Ferrari Rubber Pipes - 838804 | Superseded | Order 880066 instead |
| 2 | 880066 | Ferrari Rubber Pipes - 880066 | $56.60 | Special order, ships in 7-14 days |
| 3 | 807845 | Ferrari Rubber Pipes - 807845 | $44.29 | Special order, ships in 7-14 days |
| 3 | 807902 | Ferrari Rubber Pipes - 807902 | Superseded | Order 807845 instead |
| 4 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 5 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 6 | 831711 | Ferrari Compl. Swivel Clip - 831711 | $1.72 | Special order, ships in 7-14 days |
| 7 | 807844 | Ferrari Three Way Connector 8-8-6 - 807844 | $120.46 | Special order, ships in 7-14 days |
| 8 | 340700 | Ferrari Tubo Gomma D. 7-14X 34 90G - 340700 | $29.52 | Special order, ships in 7-14 days |
| 9 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 10 | 808103 | Ferrari Gpf Sensor Bracket - 808103 | $172.33 | Special order, ships in 7-14 days |
| 11 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 12 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 13 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 14 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 15 | 868388 | Ferrari Compl. Rubber Pipe - 868388 | $73.85 | Special order, ships in 7-14 days |
| 16 | 868570 | Ferrari Compl. Rubber Pipe - 868570 | $76.30 | Special order, ships in 7-14 days |
| 17 | 824846 | Ferrari Catalytic Converter With Com - 824846 | $45,344.03 | Special order, ships in 7-14 days |
| 18 | 824858 | Ferrari Catalytic Converter With Com - 824858 | $45,333.17 | Special order, ships in 7-14 days |
| 19 | 290743 | Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743 | $164.72 | Special order, ships in 7-14 days |
| 20 | 275465 | Ferrari Gasket - 275465 | $103.25 | Available, ships in 3-6 days |
| 21 | 292946 | Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946 | $9.75 | In stock |
| 22 | 292945 | Ferrari Nut M8 x 1.25 - 292945 | $28.39 | Special order, ships in 7-14 days |
| 23 | 964534 | Ferrari Catalytic Converter Mounting - 964534 | $88.61 | Special order, ships in 7-14 days |
| 24 | 964539 | Ferrari Compl. Catalytic Converter M - 964539 | $320.06 | Special order, ships in 7-14 days |
| 25 | 14040711 | Ferrari Nut M8 - 14040711 | $0.79 | Available, ships in 3-6 days |
| 26 | 16044321 | Ferrari Screw M8 x 55 - 16044321 | $1.05 | Available, ships in 3-6 days |
| 27 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 28 | 11193974 | Ferrari Washer - 11193974 | $0.13 | Available, ships in 3-6 days |
| 29 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 30 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
| 31 | 834658 | Ferrari Compl. Centre Silencer - 834658 | $2,989.09 | Special order, ships in 7-14 days |
| 32 | 941988 | Ferrari Compl. Transmission Shaft Sh - 941988 | $640.17 | Special order, ships in 7-14 days |
| 33 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 34 | 282998 | Ferrari Ring Clamp - 282998 | $65.55 | Special order, ships in 7-14 days |
