Ferrari Purosangue — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0064)

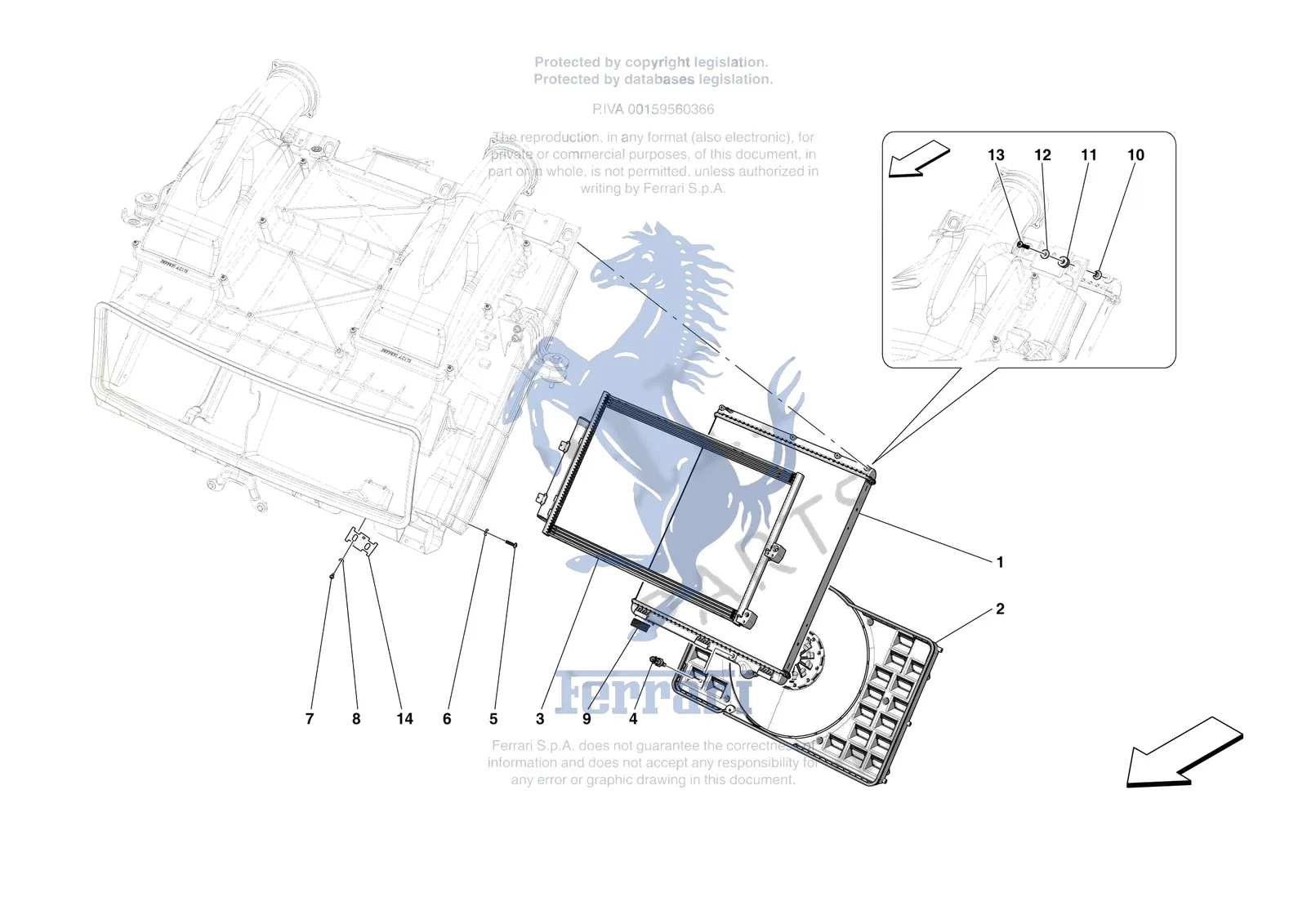

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari Purosangue, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0064.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 905876 | Ferrari Engine Water Radiator - 905876 | $2,251.19 | Special order, ships in 7-14 days |
| 2 | 871767 | Ferrari Cowl - 871767 | $2,157.38 | Special order, ships in 7-14 days |
| 2 | 821769 | Ferrari Fan Cowl - 821769 | $2,581.84 | Special order, ships in 7-14 days |
| 3 | 851018 | Ferrari Condenser - 851018 | $1,005.35 | Special order, ships in 7-14 days |
| 4 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 5 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 6 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 7 | 81973300 | Ferrari Screw M4.5 x 12 TBEI - 81973300 | $3.03 | Available, ships in 3-6 days |
| 8 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 9 | 750523 | Ferrari Lower Damper On Duct - 750523 | $16.94 | Special order, ships in 7-14 days |
| 10 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 11 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 12 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 13 | 750767 | Ferrari Screw - 750767 | $5.86 | Special order, ships in 7-14 days |
| 14 | 816589 | Ferrari Condenser Spacer - 816589 | $8.28 | Special order, ships in 7-14 days |
