Ferrari Purosangue — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0066)

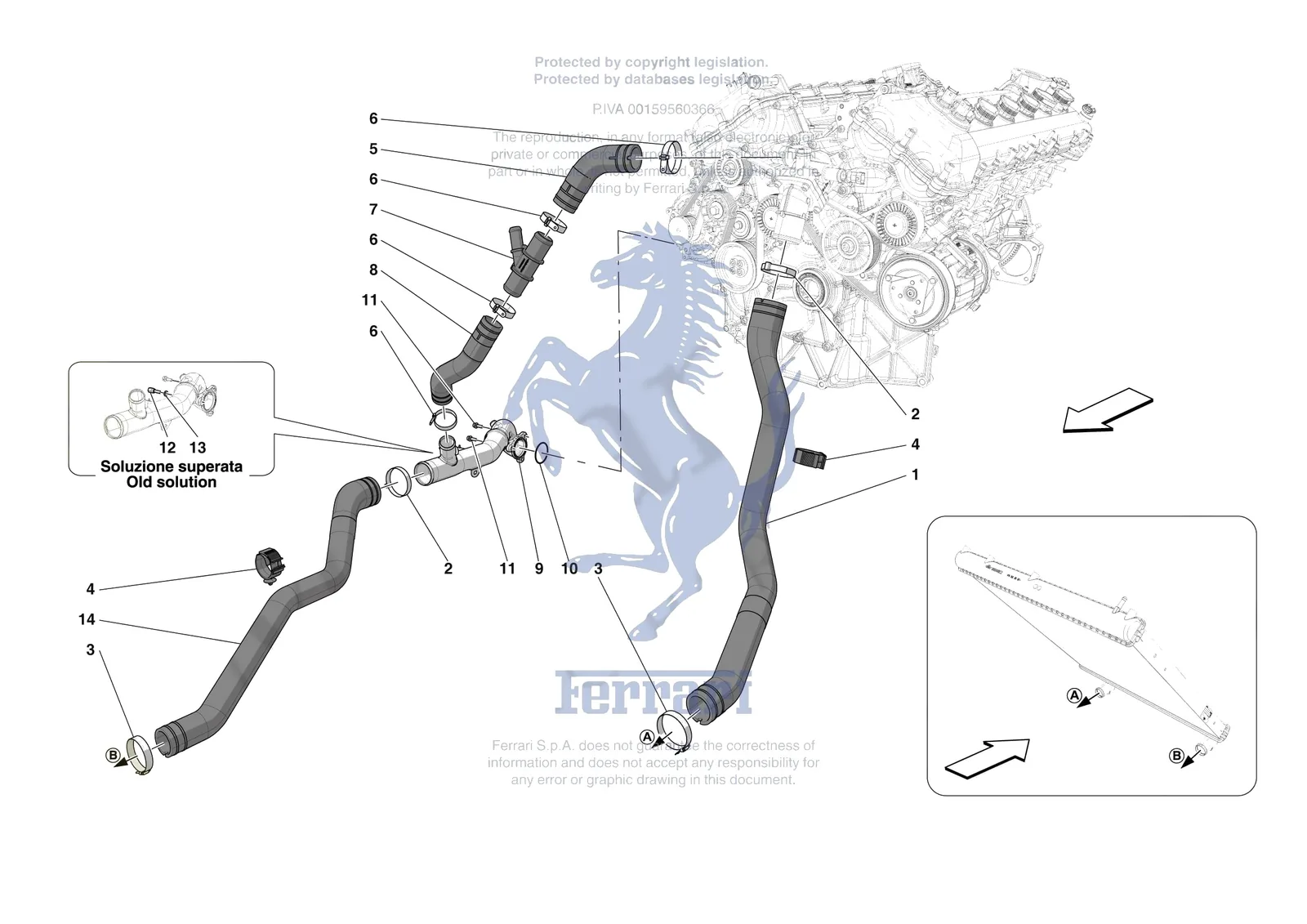

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari Purosangue, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1841341Ferrari Hose From Engine To Radiator - 841341$231.42Special order, ships in 7-14 days
2296345Ferrari Collar - 296345$5.00Special order, ships in 7-14 days
3262114Ferrari Collar - 262114$2.38Available, ships in 3-6 days
4278577Ferrari Tube Clamp D.30-40mm - 278577$3.68Special order, ships in 7-14 days
5861503Ferrari Pipe From Thermostat To 3-Wa - 861503$88.61Special order, ships in 7-14 days
6262113Ferrari Collar - 262113$3.68Special order, ships in 7-14 days
7982201Ferrari 3-Way Union - 982201$56.60Special order, ships in 7-14 days
8948881Ferrari Hose From Bypass - 948881$123.09Special order, ships in 7-14 days
9946572Ferrari Multiple Connector On Engine - 946572$1,428.09Special order, ships in 7-14 days
10154191Ferrari O-Ring - 154191$1.42In stock
11231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
12339948Ferrari Stud Bolt - 339948$31.99Special order, ships in 7-14 days
1311197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
14841340Ferrari Hose From Radiator To Multip - 841340$196.96Special order, ships in 7-14 days
