Ferrari Purosangue — [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- (diagram 0073)

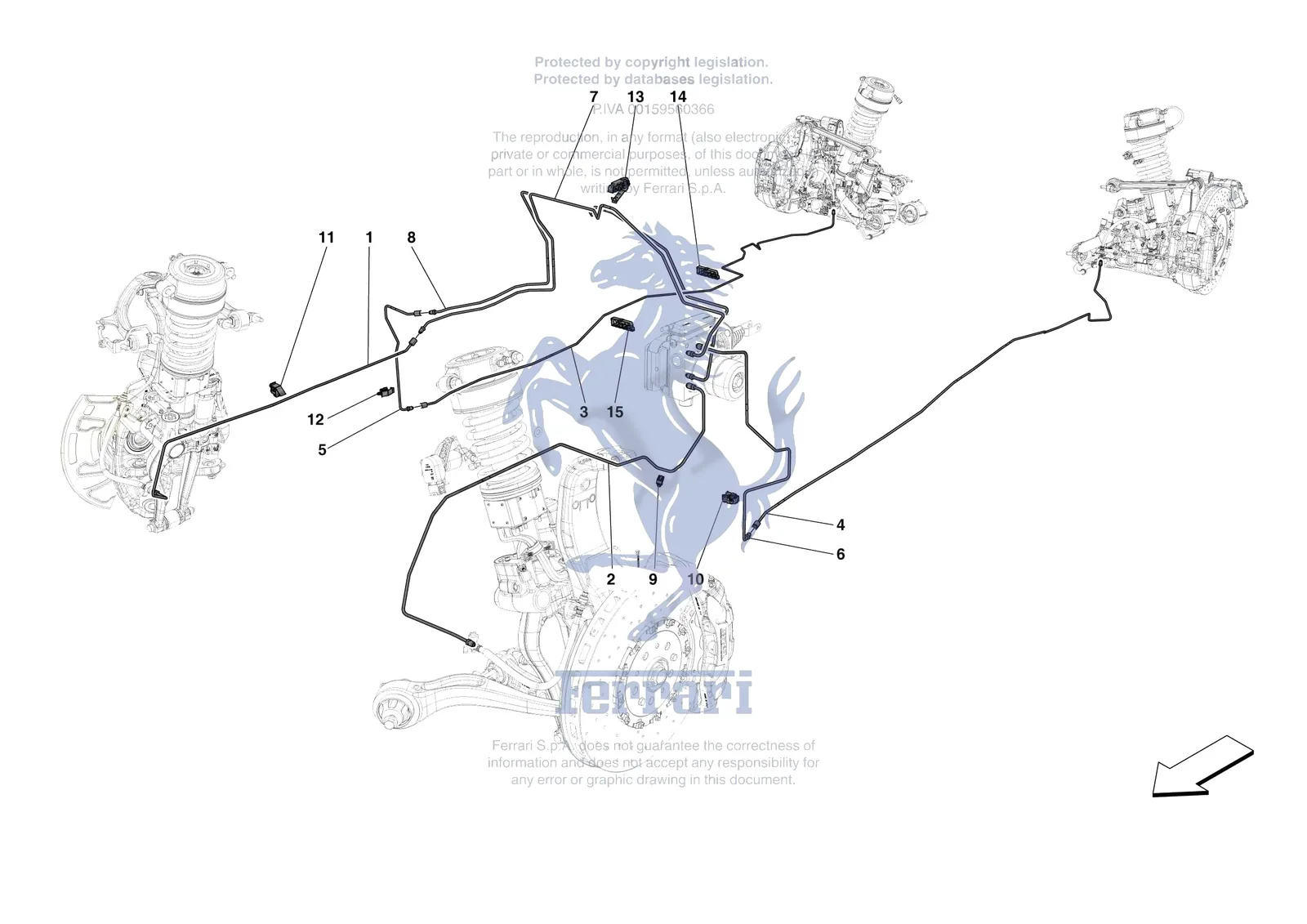

Exploded view of the [mechanical system] - d.23 - hydraulic brake control pipes -not for rhd- on the Ferrari Purosangue, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1788521Ferrari Front RH Brake Pipe - 788521$86.15Special order, ships in 7-14 days
2887262Ferrari Front LH Brake Pipe - 887262$100.93Special order, ships in 7-14 days
3887253Ferrari RH Rear Underbody Brake Pipe - 887253$137.87Special order, ships in 7-14 days
4788589Ferrari LH Rear Underbody Brake Pipe - 788589$150.17Special order, ships in 7-14 days
5788523Ferrari Rear RH Brake Pipe - 788523$68.92Special order, ships in 7-14 days
6862031Ferrari Rear LH Brake Pipe - 862031$81.23Special order, ships in 7-14 days
7868242Ferrari RH Front Brake Pipe On Firew - 868242$125.54Special order, ships in 7-14 days
8870570Ferrari RH Rear Brake Pipe On Firewa - 870570$123.09Special order, ships in 7-14 days
9256962Ferrari Clip D. 4.7X1 - 256962$1.36Special order, ships in 7-14 days
10234285Ferrari Clip - 234285$1.40Available, ships in 3-6 days
11234284Ferrari Clip - 234284$1.23Available, ships in 3-6 days
12301063Ferrari Clip - 301063$1.65Available, ships in 3-6 days
13234286Ferrari Clip - 234286$3.03Available, ships in 3-6 days
14280281Ferrari Clip - 280281$3.03Special order, ships in 7-14 days
15299493Ferrari Clip - 299493$2.13Special order, ships in 7-14 days
