Ferrari Purosangue — [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- (diagram 0074)

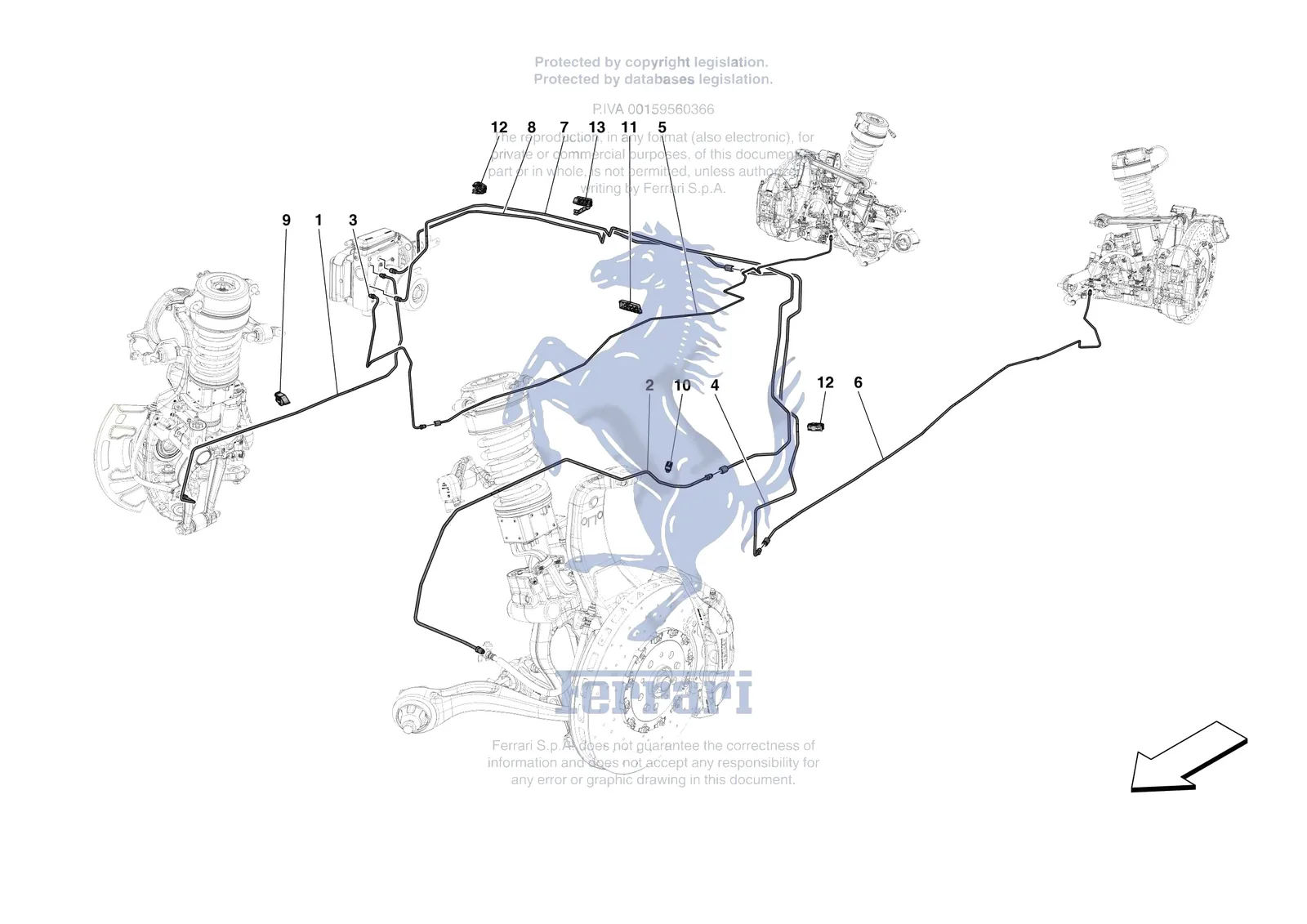

Exploded view of the [mechanical system] - d.23 - hydraulic brake control pipes -applicable for rhd- on the Ferrari Purosangue, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Applicable for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1950191Ferrari Front RH Brake Pipe - 950191$96.01Special order, ships in 7-14 days
2856319Ferrari Front LH Brake Pipe - 856319$88.61Special order, ships in 7-14 days
3917539Ferrari Rear RH Brake Pipe - 917539$76.30Special order, ships in 7-14 days
4950192Ferrari Rear LH Brake Pipe - 950192$100.93Special order, ships in 7-14 days
5887253Ferrari RH Rear Underbody Brake Pipe - 887253$137.87Special order, ships in 7-14 days
6788589Ferrari LH Rear Underbody Brake Pipe - 788589$150.17Special order, ships in 7-14 days
7856117Ferrari LH Front Brake Pipe On Firew - 856117$155.10Special order, ships in 7-14 days
8950193Ferrari LH Rear Brake Pipe On Firewa - 950193$125.54Special order, ships in 7-14 days
9301063Ferrari Clip - 301063$1.65Available, ships in 3-6 days
10256962Ferrari Clip D. 4.7X1 - 256962$1.36Special order, ships in 7-14 days
11299493Ferrari Clip - 299493$2.13Special order, ships in 7-14 days
12234285Ferrari Clip - 234285$1.40Available, ships in 3-6 days
13234286Ferrari Clip - 234286$3.03Available, ships in 3-6 days

All Purosangue diagrams
