Ferrari Purosangue — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0078)

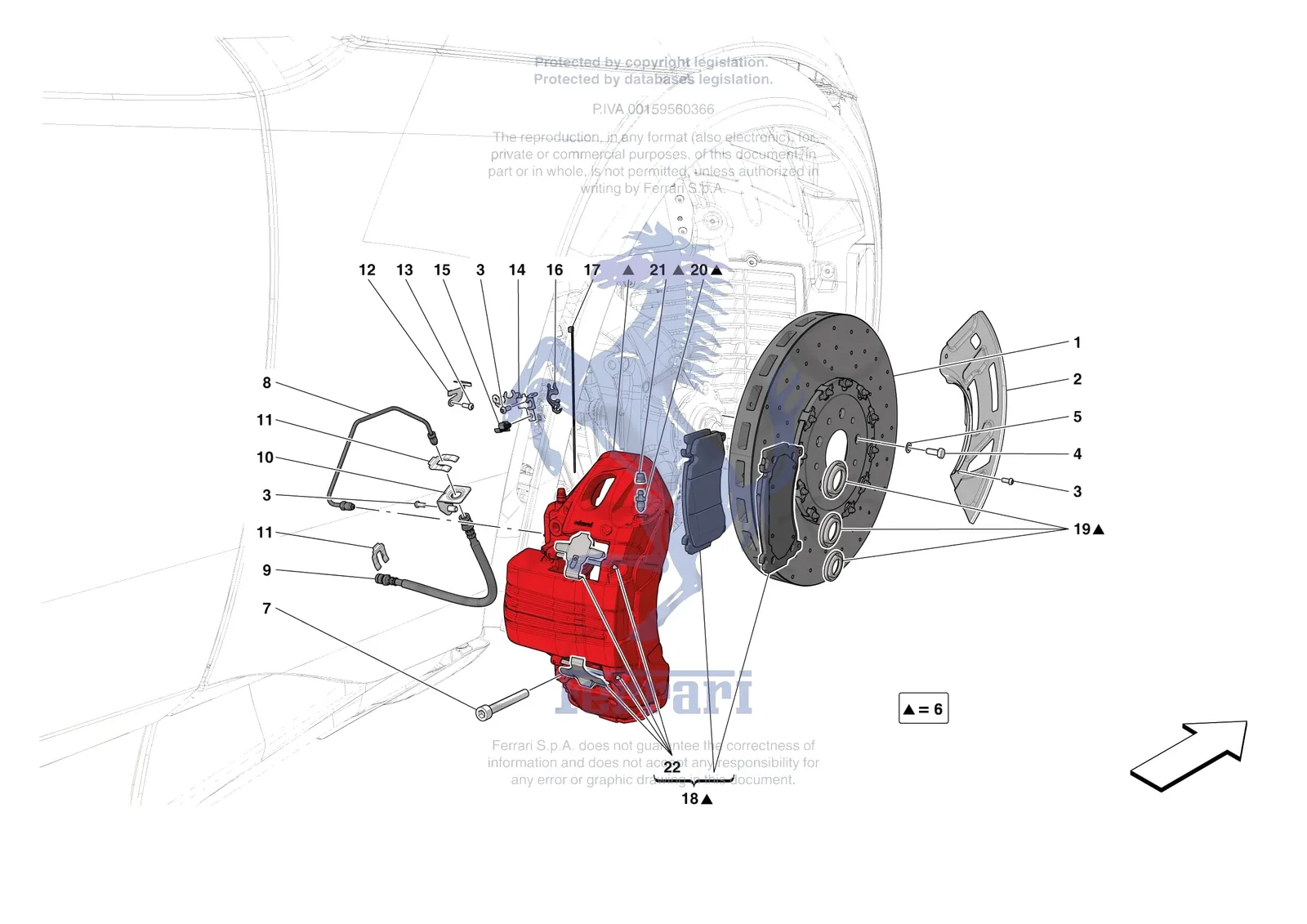

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari Purosangue, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0078.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 1 | 875028 | Ferrari FRONT BRAKE DISC - 875028 | Price on request | Contact us for price and availability |
| 1 | 763220 | Ferrari Front Brake Disc 398 X 38 12 Tr. R - 763220 | $9,950.66 | Special order, ships in 7-14 days |
| 2 | 850113 | Ferrari Front LH Disc Shield - 850113 | $91.08 | Special order, ships in 7-14 days |
| 2 | 850114 | Ferrari Front RH Disc Shield - 850114 | $91.08 | Special order, ships in 7-14 days |
| 3 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 4 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 5 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 6 | 763224 | Ferrari Compl. LH Front Calliper - 763224 | $8,048.07 | Special order, ships in 7-14 days |
| 6 | 763526 | Ferrari Compl. LH Front Calliper - 763526 | $8,200.23 | Special order, ships in 7-14 days |
| 6 | 763527 | Ferrari Compl. LH Front Calliper - 763527 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763528 | Ferrari Compl. LH Front Calliper - 763528 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763529 | Ferrari Compl. LH Front Calliper - 763529 | $9,086.13 | Special order, ships in 7-14 days |
| 6 | 763530 | Ferrari Compl. LH Front Calliper - 763530 | $9,086.13 | Special order, ships in 7-14 days |
| 6 | 763531 | Ferrari Compl. LH Front Calliper - 763531 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763532 | Ferrari Compl. LH Front Calliper - 763532 | $8,335.71 | Special order, ships in 7-14 days |
| 6 | 763533 | Ferrari Compl. LH Front Calliper - 763533 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763225 | Ferrari Compl. RH Front Calliper - 763225 | $8,048.07 | Special order, ships in 7-14 days |
| 6 | 763536 | Ferrari Compl. RH Front Calliper - 763536 | $8,200.23 | Special order, ships in 7-14 days |
| 6 | 763538 | Ferrari Compl. RH Front Calliper - 763538 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763541 | Ferrari Compl. RH Front Calliper - 763541 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763543 | Ferrari Compl. RH Front Calliper - 763543 | $9,086.13 | Special order, ships in 7-14 days |
| 6 | 763547 | Ferrari Compl. RH Front Calliper - 763547 | $9,086.13 | Special order, ships in 7-14 days |
| 6 | 763548 | Ferrari Compl. RH Front Calliper - 763548 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 763550 | Ferrari Compl. RH Front Calliper - 763550 | $8,335.71 | Special order, ships in 7-14 days |
| 6 | 763688 | Ferrari Compl. RH Front Calliper - 763688 | $8,519.15 | Special order, ships in 7-14 days |
| 6 | 887150 | Ferrari COMPLETE L.H. FRONT CALIPER - 887150 | Price on request | Contact us for price and availability |
| 6 | 887158 | Ferrari COMPLETE L.H. FRONT CALIPER - 887158 | Price on request | Contact us for price and availability |
| 6 | 887159 | Ferrari COMPLETE L.H. FRONT CALIPER - 887159 | Price on request | Contact us for price and availability |
| 6 | 887160 | Ferrari COMPLETE L.H. FRONT CALIPER - 887160 | Price on request | Contact us for price and availability |
| 6 | 887161 | Ferrari COMPLETE L.H. FRONT CALIPER - 887161 | Price on request | Contact us for price and availability |
| 6 | 887162 | Ferrari COMPLETE L.H. FRONT CALIPER - 887162 | Price on request | Contact us for price and availability |
| 6 | 887163 | Ferrari COMPLETE L.H. FRONT CALIPER - 887163 | Price on request | Contact us for price and availability |
| 6 | 887164 | Ferrari COMPLETE L.H. FRONT CALIPER - 887164 | Price on request | Contact us for price and availability |
| 6 | 887165 | Ferrari COMPLETE L.H. FRONT CALIPER - 887165 | Price on request | Contact us for price and availability |
| 6 | 887151 | Ferrari COMPLETE RH FRONT CALIPER - 887151 | Price on request | Contact us for price and availability |
| 6 | 887166 | Ferrari COMPLETE RH FRONT CALIPER - 887166 | Price on request | Contact us for price and availability |
| 6 | 887167 | Ferrari COMPLETE RH FRONT CALIPER - 887167 | Price on request | Contact us for price and availability |
| 6 | 887168 | Ferrari COMPLETE RH FRONT CALIPER - 887168 | Price on request | Contact us for price and availability |
| 6 | 887169 | Ferrari COMPLETE RH FRONT CALIPER - 887169 | Price on request | Contact us for price and availability |
| 6 | 887170 | Ferrari COMPLETE RH FRONT CALIPER - 887170 | Price on request | Contact us for price and availability |
| 6 | 887171 | Ferrari COMPLETE RH FRONT CALIPER - 887171 | Price on request | Contact us for price and availability |
| 6 | 887173 | Ferrari COMPLETE RH FRONT CALIPER - 887173 | Price on request | Contact us for price and availability |
| 6 | 887174 | Ferrari COMPLETE RH FRONT CALIPER - 887174 | Price on request | Contact us for price and availability |
| 7 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 8 | 832296 | Ferrari Brake Pipe From Caliper To R - 832296 | $46.75 | Special order, ships in 7-14 days |
| 8 | 832297 | Ferrari Brake Pipe From Caliper To R - 832297 | $46.75 | Special order, ships in 7-14 days |
| 9 | 777000 | Ferrari Brake Hose L.376 mm - 777000 | $103.25 | Available, ships in 3-6 days |
| 10 | 972908 | Ferrari Front Brake Hose Bracket - 972908 | $31.99 | Special order, ships in 7-14 days |
| 11 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 12 | 888053 | Ferrari LH Connector Bracket - 888053 | $36.92 | Special order, ships in 7-14 days |
| 12 | 888054 | Ferrari RH Connector Bracket - 888054 | $36.92 | Special order, ships in 7-14 days |
| 13 | 86001300 | Ferrari Screw - 86001300 | $4.14 | Special order, ships in 7-14 days |
| 14 | 866518 | Ferrari LH Cable Retainer Bracket - 866518 | $71.38 | Special order, ships in 7-14 days |
| 14 | 866519 | Ferrari RH Cable Retainer Bracket - 866519 | $71.38 | Special order, ships in 7-14 days |
| 15 | 303873 | Ferrari Clip D.6 - 303873 | $3.47 | Available, ships in 3-6 days |
| 16 | 310962 | Ferrari Clip - 310962 | $9.62 | Special order, ships in 7-14 days |
| 17 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 18 | 70005674 | Ferrari Front Brake Pad Set F175 - 70005674 | $4,695.60 | Available, ships in 3-6 days |
| 18 | 801636 | Ferrari SET OF FRONT PADS WITH SPRING - 801636 | Price on request | Contact us for price and availability |
| 19 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 20 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 21 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
| 22 | 70004533 | Ferrari Spring And Pin Kit - 70004533 | $238.47 | Special order, ships in 7-14 days |
