Ferrari Purosangue — [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS (diagram 0086)
Exploded view of the [mechanical system] - d.29 - complete wheels on the Ferrari Purosangue, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

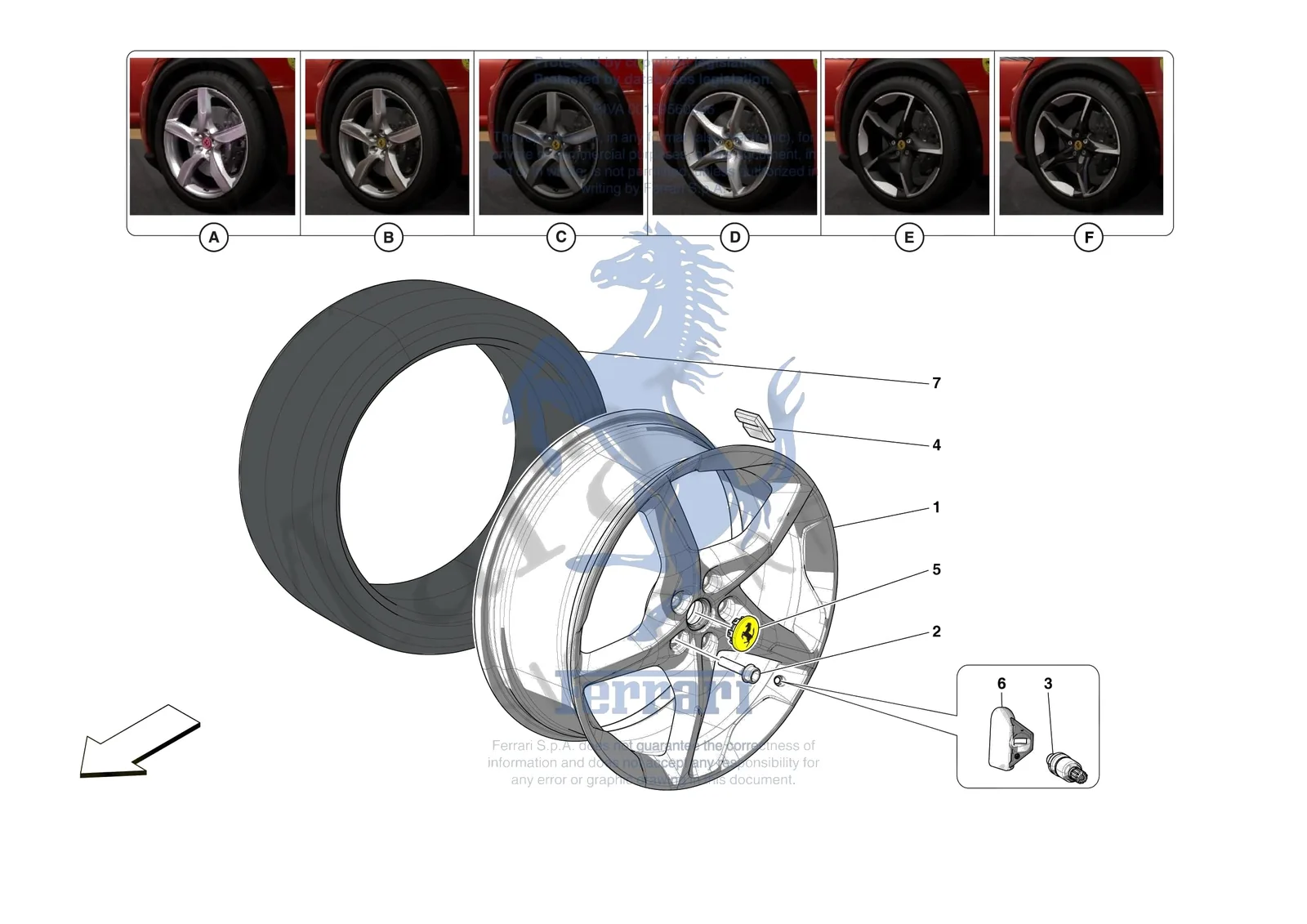

![Ferrari Purosangue [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0086.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 108947 | Ferrari Push In Hub Cap - 108947 | Superseded | Order 55059092 instead | |
| 226245 | Ferrari Push In Hub Cap - 226245 | Superseded | Order 55059092 instead | |
| 1 | 70007960 | Ferrari Front Wheel - 70007960 | $13,911.64 | Special order, ships in 7-14 days |
| 1 | 800813 | Ferrari Front Wheel - 800813 | $3,464.35 | Special order, ships in 7-14 days |
| 1 | 800815 | Ferrari Front Wheel - 800815 | $3,629.02 | Special order, ships in 7-14 days |
| 1 | 983055 | Ferrari Front Wheel - Glossy Silver - 983055 | $2,732.69 | Available, ships in 3-6 days |
| 1 | 70007961 | Ferrari LH Front Wheel - 70007961 | $16,811.12 | Special order, ships in 7-14 days |
| 1 | 895989 | Ferrari LH Front Wheel - 895989 | $8,385.75 | Special order, ships in 7-14 days |
| 1 | 895993 | Ferrari LH Front Wheel - 895993 | $8,385.75 | Special order, ships in 7-14 days |
| 1 | 983057 | Ferrari LH Front Wheel - 983057 | $7,543.62 | Special order, ships in 7-14 days |
| 1 | 70007964 | Ferrari LH Rear Wheel - 70007964 | $17,651.15 | Special order, ships in 7-14 days |
| 1 | 895991 | Ferrari LH Rear Wheel - 895991 | $8,790.13 | Special order, ships in 7-14 days |
| 1 | 895995 | Ferrari LH Rear Wheel - 895995 | $8,790.13 | Special order, ships in 7-14 days |
| 1 | 983058 | Ferrari LH Rear Wheel - 983058 | $7,954.26 | Special order, ships in 7-14 days |
| 1 | 70007963 | Ferrari Rear Wheel - 70007963 | $17,707.04 | Special order, ships in 7-14 days |
| 1 | 800814 | Ferrari Rear Wheel - 800814 | $3,893.74 | Special order, ships in 7-14 days |
| 1 | 800816 | Ferrari Rear Wheel - 800816 | $3,941.69 | Special order, ships in 7-14 days |
| 1 | 983056 | Ferrari Rear Wheel - Glossy Silver - 983056 | $3,162.10 | Available, ships in 3-6 days |
| 1 | 70007962 | Ferrari RH Front Wheel - 70007962 | $17,651.15 | Special order, ships in 7-14 days |
| 1 | 895987 | Ferrari RH Front Wheel - 895987 | $7,479.00 | Special order, ships in 7-14 days |
| 1 | 895990 | Ferrari RH Front Wheel - 895990 | $8,385.75 | Special order, ships in 7-14 days |
| 1 | 895994 | Ferrari RH Front Wheel - 895994 | $8,385.75 | Special order, ships in 7-14 days |
| 1 | 70007965 | Ferrari RH Rear Wheel - 70007965 | $17,651.15 | Special order, ships in 7-14 days |
| 1 | 895988 | Ferrari RH Rear Wheel - 895988 | $7,883.40 | Special order, ships in 7-14 days |
| 1 | 895992 | Ferrari RH Rear Wheel - 895992 | $8,790.13 | Special order, ships in 7-14 days |
| 1 | 895996 | Ferrari RH Rear Wheel - 895996 | $8,790.13 | Special order, ships in 7-14 days |
| 2 | 854399 | Ferrari Titanium Wheel Bolts M14 Mo. - 854399 | $344.21 | Available, ships in 3-6 days |
| 2 | 55031814 | Ferrari Wheel Stud Bolt - 55031814 | Superseded | Order 854397 instead |
| 2 | 854397 | Ferrari Wheel Stud Bolt - 854397 | $108.16 | Available, ships in 3-6 days |
| 3 | 913102 | Ferrari Tyre Valve - 913102 | $30.57 | Available, ships in 3-6 days |
| 3 | 913104 | Ferrari Tyre Valve - 913104 | $37.13 | Special order, ships in 7-14 days |
| 4 | 11096693 | Ferrari Adhesive Wheel Balancer Weight - 11096693 | $24.32 | Special order, ships in 7-14 days |
| 4 | 308296 | Ferrari Adhesive Wheel Balancer Weight - 308296 | $24.32 | Special order, ships in 7-14 days |
| 5 | 70007943 | Ferrari HUB CAP - 70007943 | $3,342.94 | Special order, ships in 7-14 days |
| 5 | 744579 | Ferrari Hub Cap - 744579 | $58.05 | Available, ships in 3-6 days |
| 5 | 889561 | Ferrari Hub Cap - 889561 | $442.56 | Special order, ships in 7-14 days |
| 5 | 340066 | Ferrari Wheel Center Cap Set - 55059092/4 | Superseded | Order 55059092 instead |
| 5 | 55059092 | Ferrari Wheel Centre Cap - 55059092 | $44.11 | Available, ships in 3-6 days |
| 6 | 939581 | Ferrari Tyre Pressure Monitoring System Wheel Sensor - 939581 | $393.38 | Available, ships in 3-6 days |
| 6 | 939582 | Ferrari Tyre Pressure Monitoring System Wheel Sensor - 939582 | $393.38 | Available, ships in 3-6 days |
