Ferrari Purosangue — [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE (diagram 0096)

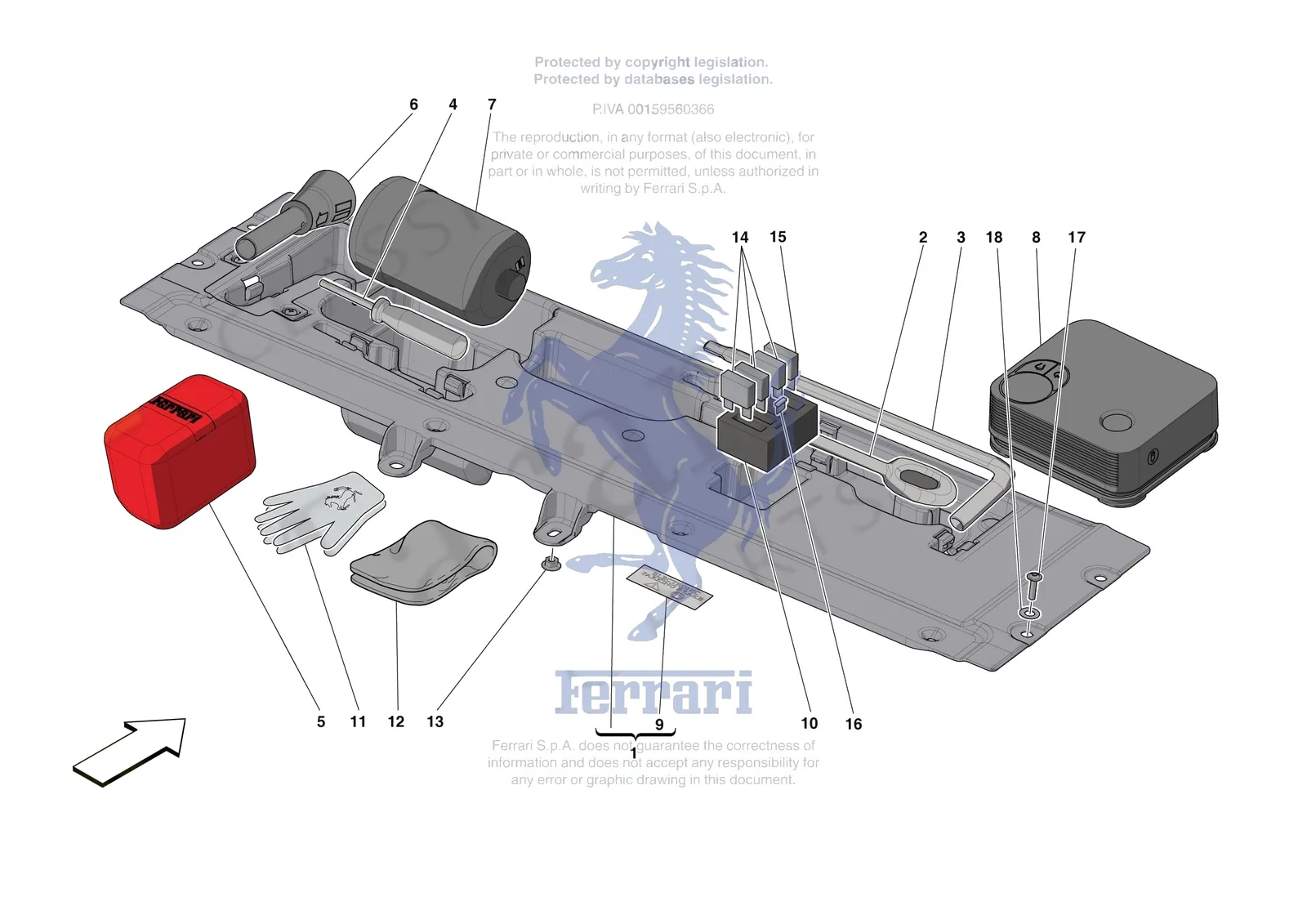

Exploded view of the [mechanical system] - d.38 - tools provided with vehicle on the Ferrari Purosangue, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0096.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 280164 | Ferrari Tyre Repair Kit Complete - 280164 | Superseded | Order 336277 instead | |
| 1 | 787295 | Ferrari Compl. Tool Kit Tray - 787295 | $295.43 | Special order, ships in 7-14 days |
| 2 | 155838 | Ferrari Tow Hook - 155838 | $98.87 | In stock |
| 3 | 343204 | Ferrari P. Lock and RHT Release Tool - 343204 | $83.57 | Special order, ships in 7-14 days |
| 4 | 225020 | Ferrari Screwdriver - 225020 | $56.52 | Special order, ships in 7-14 days |
| 5 | 65253000 | Ferrari Accessory Holder Wallet Complete - 65253000 | $179.46 | Special order, ships in 7-14 days |
| 6 | 260763 | Ferrari Emergency Refuelling Funnel - 260763 | $61.99 | Available, ships in 3-6 days |
| 7 | 322481 | Ferrari Repair Kit Refill Bottle - 322481 | $204.05 | Available, ships in 3-6 days |
| 8 | 336277 | Ferrari Tyre Repair Kit Complete - 336277 | $319.62 | Special order, ships in 7-14 days |
| 9 | 341813 | Ferrari DCT RELEASE PRECAUTIONS LABEL - 341813 | $34.40 | Special order, ships in 7-14 days |
| 10 | 815451 | Ferrari Fuse Compartment Foam Insert - 815451 | $44.29 | Special order, ships in 7-14 days |
| 11 | 65253300 | Ferrari White Gloves - 65253300 | $49.28 | In stock |
| 13 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 14 | 169438 | Ferrari Maxi Fuse 20A - 169438 | $26.24 | Available, ships in 3-6 days |
| 14 | 166835 | Ferrari Maxi Fuse 40A - 166835 | $17.46 | Available, ships in 3-6 days |
| 14 | 172871 | Ferrari Maxi Fuse 60A - 172871 | $28.42 | Available, ships in 3-6 days |
| 15 | 172879 | Ferrari Mini Fuse 20A - 172879 | $13.95 | Available, ships in 3-6 days |
| 16 | 178659 | Ferrari Fuse Pliers - 178659 | $4.89 | Special order, ships in 7-14 days |
| 17 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
