Ferrari Purosangue — [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE (diagram 0104)

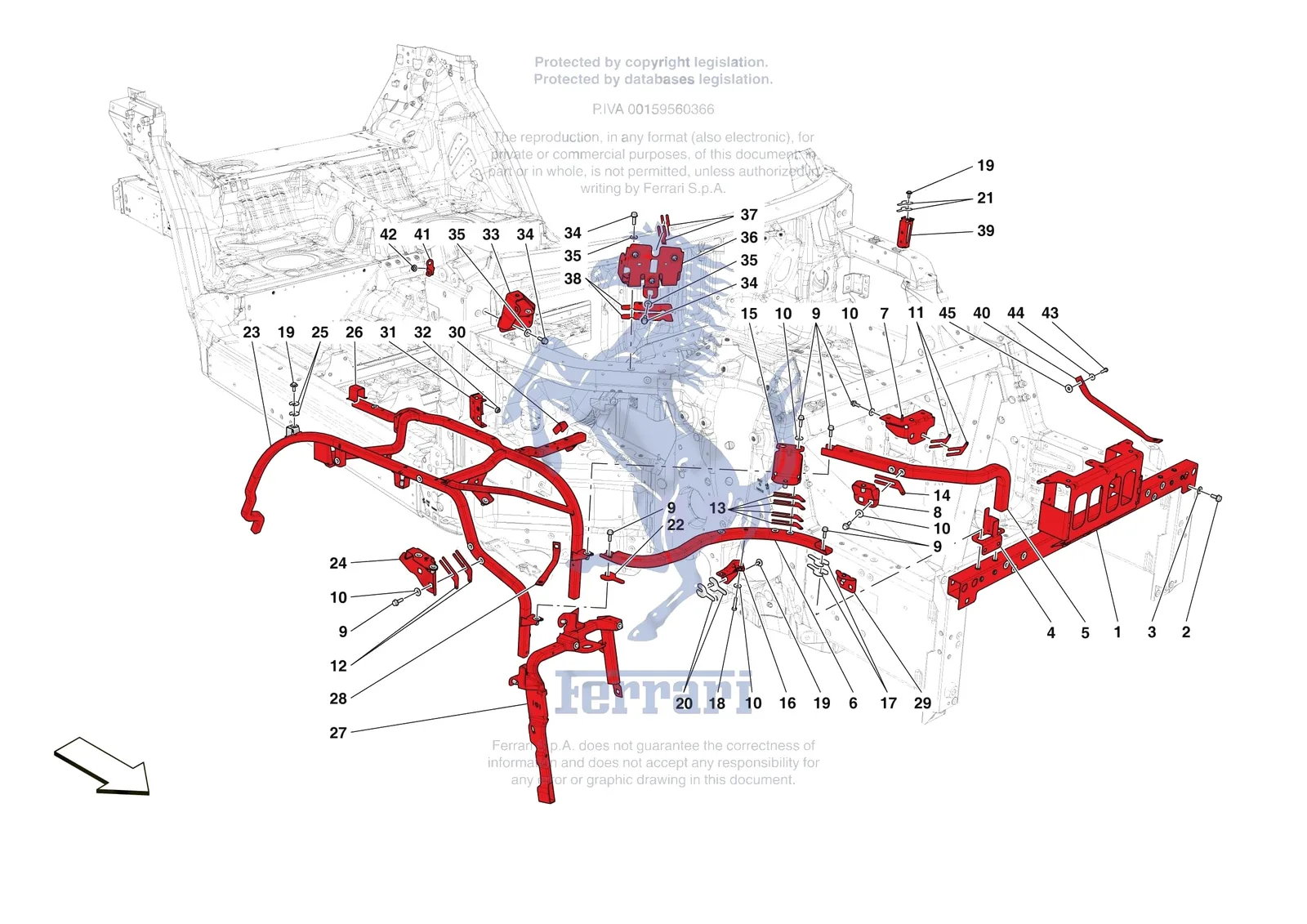

Exploded view of the [vehicle trim] - e.5 - front substructure on the Ferrari Purosangue, with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985822672Ferrari Compl. Bumper Shelf Cross Member - 985822672$1,452.72Special order, ships in 7-14 days
216287124Ferrari Flanged Bolt - 16287124$2.38Available, ships in 3-6 days
312646727Ferrari Washer D. 8.45 X 20 X 2 - 12646727$0.40Available, ships in 3-6 days
4857017Ferrari Compl. Fastener Bracket For - 857017$61.52Special order, ships in 7-14 days
4857016Ferrari Compl. Mounting Bracket For - 857016$61.52Special order, ships in 7-14 days
5985822677Ferrari Compl. RH Front Bumper Trellis - 985822677$1,403.46Special order, ships in 7-14 days
5985822613Ferrari Complete LH Front Bumper Trellis - 985822613$1,403.46Special order, ships in 7-14 days
6955063280Ferrari Compl. Upper Trellis Of LH M - 955063280SupersededOrder 985889516 instead
6985889516Ferrari Compl. Upper Trellis of LH Mounting Cross Member - 985889516$861.77Special order, ships in 7-14 days
6955063277Ferrari Compl. Upper Trellis Of RH M - 955063277SupersededOrder 985889518 instead
6985889518Ferrari Compl. Upper Trellis of RH Mounting Cross Member - 985889518$861.77Special order, ships in 7-14 days
7822578Ferrari Compl. LH Bumper Fastener Br - 822578$68.92Special order, ships in 7-14 days
7822648Ferrari Compl. RH Bumper Fastener Br - 822648$68.92Special order, ships in 7-14 days
8822593Ferrari Compl. Outer Fastener Bracke - 822593$66.45Special order, ships in 7-14 days
916286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
1012643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
1012643724Ferrari/Maserati Washer - 12643724$0.20In stock
11749929Ferrari Shim - 749929$13.26Special order, ships in 7-14 days
11852947Ferrari Spessore 1Mm - 852947$5.44Special order, ships in 7-14 days
12749919Ferrari Shim - 749919$14.51Special order, ships in 7-14 days
13822625Ferrari Shim - 822625$12.53Special order, ships in 7-14 days
14749925Ferrari Shim - 749925$14.51Special order, ships in 7-14 days
15749018Ferrari Compl. Headlamp Fastener Bra - 749018$78.76Special order, ships in 7-14 days
16955063283Ferrari Traliccio Sost. Proiet. Sx. - 955063283$714.03Special order, ships in 7-14 days
16985808255Ferrari Traliccio Sost. Proiettore D - 985808255$738.64Special order, ships in 7-14 days
16985807925Ferrari Traliccio Sost. Proiettore S - 985807925$738.64Special order, ships in 7-14 days
17749941Ferrari Adjustment Shim - 749941$13.01Special order, ships in 7-14 days
18781675Ferrari LH Underwindscreen Tray Moun - 781675$113.24Special order, ships in 7-14 days
19781698Ferrari RH Underwindscreen Tray Moun - 781698$113.24Special order, ships in 7-14 days
20749942Ferrari Adjustment Shim - 749942$12.04Special order, ships in 7-14 days
2088187600Ferrari Spessore Di Regolaz.Ant. Sp. - 88187600$8.82Special order, ships in 7-14 days
2188187400Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400$8.82Special order, ships in 7-14 days
22749946Ferrari Adjustment Shim - 749946$12.53Special order, ships in 7-14 days
23955063285Ferrari Compl. RH Front Trellis - 955063285SupersededOrder 985822583 instead
23985822617Ferrari Complete LH Front Trellis - 985822617$2,532.59Special order, ships in 7-14 days
23985822583Ferrari Complete RH Front Trellis - 985822583$2,680.32Special order, ships in 7-14 days
24822630Ferrari Compl. LH Front Bumper Faste - 822630$81.23Special order, ships in 7-14 days
24822584Ferrari Compl. RH Front Bumper Faste - 822584$81.23Special order, ships in 7-14 days
25105864Ferrari Spacer Washer D. 6.5-24 X 1.5 - 105864$2.82Available, ships in 3-6 days
26822671Ferrari Trellis Adjustment Cup - 822671$21.89Special order, ships in 7-14 days
27985893912Ferrari Compl. LH Radiator Casting - 985893912$1,354.22Special order, ships in 7-14 days
27985894443Ferrari Compl. RH Radiator Casting - 985894443$1,452.72Special order, ships in 7-14 days
28985822688Ferrari Trav. Colleg. Parafango Ant. - 985822688$664.78Special order, ships in 7-14 days
29852298Ferrari Compl. Rear Inner Bracket - 852298$23.86Special order, ships in 7-14 days
30833117Ferrari Trellis Adjustment Cup - 833117$21.89Special order, ships in 7-14 days
31822589Ferrari Pillar - RH Bulkhead Fastene - 822589$34.44Special order, ships in 7-14 days
3213046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
33750030Ferrari Compl. LH Front Lid Bush Bra - 750030$206.81Special order, ships in 7-14 days
33783853Ferrari Compl. RH Front Lid Bush Bra - 783853$206.81Special order, ships in 7-14 days
3483743800Ferrari Screw - 83743800$3.47Available, ships in 3-6 days
3512646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
36985822637Ferrari Compl. LH Lid Lock Fastener Bracket - 985822637$590.91Special order, ships in 7-14 days
36985822588Ferrari RH Bonnet Lock Bracket Complete - 985822588$590.91Special order, ships in 7-14 days
37887113Ferrari Shim - 887113$11.77Special order, ships in 7-14 days
37887114Ferrari Shim - 887114$12.52Special order, ships in 7-14 days
38822636Ferrari Shim - 822636$15.49Special order, ships in 7-14 days
38822642Ferrari SHIM - 822642Price on requestContact us for price and availability
39822610Ferrari Compl. Fender Fastener Brack - 822610$61.52Special order, ships in 7-14 days
40985822678Ferrari Tirante Supp. Radiatore Sx. - 985822678$393.93Special order, ships in 7-14 days
41904592Ferrari Front LH Fender Bracket - 904592$27.06Special order, ships in 7-14 days
41904593Ferrari Front RH Fender Bracket - 904593$27.06Special order, ships in 7-14 days
4214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
43205370Ferrari Screw M6 x 25 - 205370$0.96Special order, ships in 7-14 days
4412643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
4587944700Ferrari Washer - 87944700$0.57Special order, ships in 7-14 days
46985822586Ferrari Rear Trellis Cross Member Fo - 985822586$911.01Special order, ships in 7-14 days
46985822691Ferrari Rear Trellis Cross Member Fo - 985822691$911.01Special order, ships in 7-14 days
47953657Ferrari Front Fender Bracket - 953657$19.19Special order, ships in 7-14 days
