Ferrari Purosangue — [VEHICLE TRIM] - E.08.01 - FRONT DOOR SUBSTRUCTURE (diagram 0107)

Exploded view of the [vehicle trim] - e.08.01 - front door substructure on the Ferrari Purosangue, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

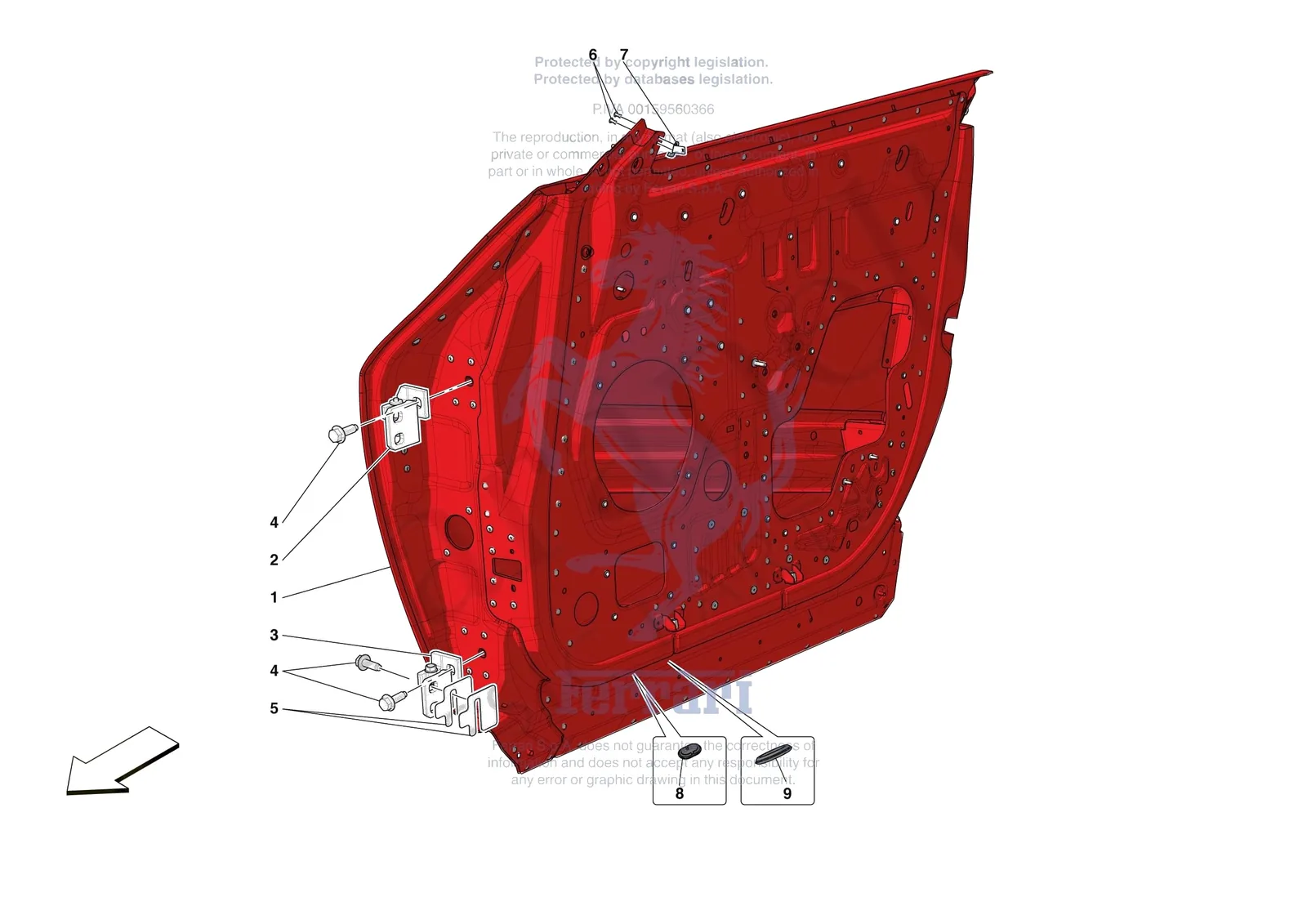

Ferrari Purosangue [VEHICLE TRIM] - E.08.01 - FRONT DOOR SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1985816769Ferrari Porta Lastrata Ant. Dx. Semi - 985816769$17,232.18Contact us to order
1985816564Ferrari Porta Lastrata Ant. Sx. Semi - 985816564$17,232.18Contact us to order
283865100Ferrari LH Upper Hinge - 83865100$78.66Available, ships in 3-6 days
283856100Ferrari RH Upper Hinge - 83856100$78.66Special order, ships in 7-14 days
383864900Ferrari LH Lower Door Hinge - 83864900$78.66Available, ships in 3-6 days
383856000Ferrari RH Lower Door Hinge - 83856000$78.66Special order, ships in 7-14 days
418754324Ferrari Screw M10 x 1.25 x 32 - 18754324$3.03Available, ships in 3-6 days
588927800Ferrari Shim - 88927800$4.35Special order, ships in 7-14 days
588927700Ferrari Shim 1.0mm - 88927700$4.56Special order, ships in 7-14 days
614641491Ferrari Rivet 3.2x10 - 14641491$0.19Available, ships in 3-6 days
7776785Ferrari LH Mirror Triangle Trim Brac - 776785$39.37Special order, ships in 7-14 days
7776788Ferrari RH Mirror Triangle Trim Brac - 776788$39.37Special order, ships in 7-14 days
8914814Ferrari Slotted Plug - 914814$4.91Special order, ships in 7-14 days
9276467Ferrari Cover - 276467$6.31Special order, ships in 7-14 days

All Purosangue diagrams
