Ferrari Purosangue — [VEHICLE TRIM] - E.9 - FRONT LID SUBSTRUCTURE (diagram 0109)

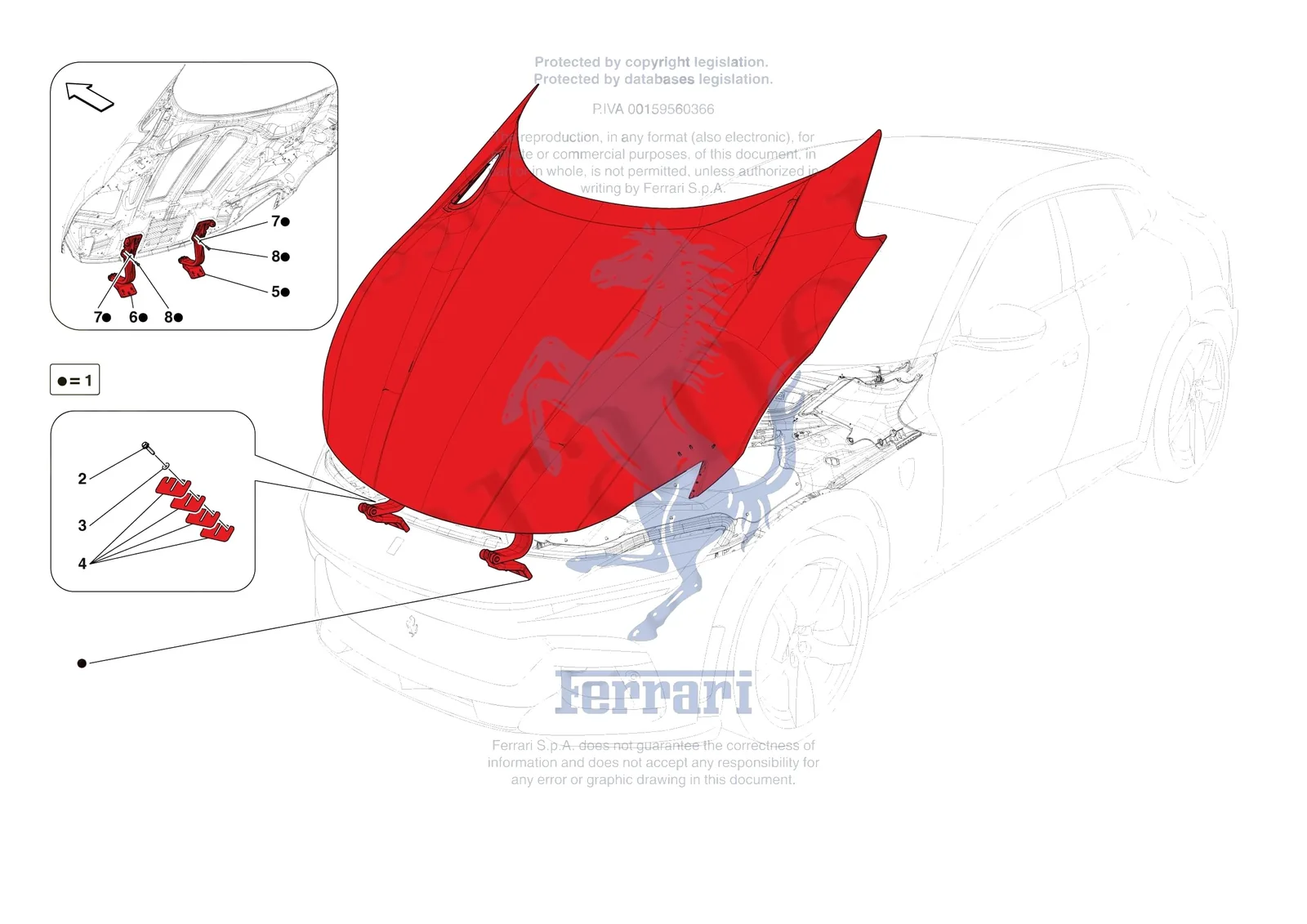

Exploded view of the [vehicle trim] - e.9 - front lid substructure on the Ferrari Purosangue, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.9 - FRONT LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0109.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| 1 | 985816231 | Ferrari Cofano Anteriore Semilav. - 985816231 | $28,828.76 | Contact us to order |
| 2 | 83743800 | Ferrari Screw - 83743800 | $3.47 | Available, ships in 3-6 days |
| 3 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 4 | 831370 | Ferrari Shim - 831370 | $14.26 | Special order, ships in 7-14 days |
| 4 | 831374 | Ferrari Shim - 831374 | $13.26 | Special order, ships in 7-14 days |
| 5 | 831614 | Ferrari RH Front Hinge - 831614 | $1,674.30 | Special order, ships in 7-14 days |
| 6 | 831613 | Ferrari LH Front Hinge - 831613 | $1,674.30 | Special order, ships in 7-14 days |
| 8 | 893581 | Ferrari Screw M8 x 25 - 893581 | $1.48 | Special order, ships in 7-14 days |
