Ferrari Purosangue — [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION (diagram 0123)

Exploded view of the [vehicle trim] - e.20 - engine compartment insulation on the Ferrari Purosangue, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

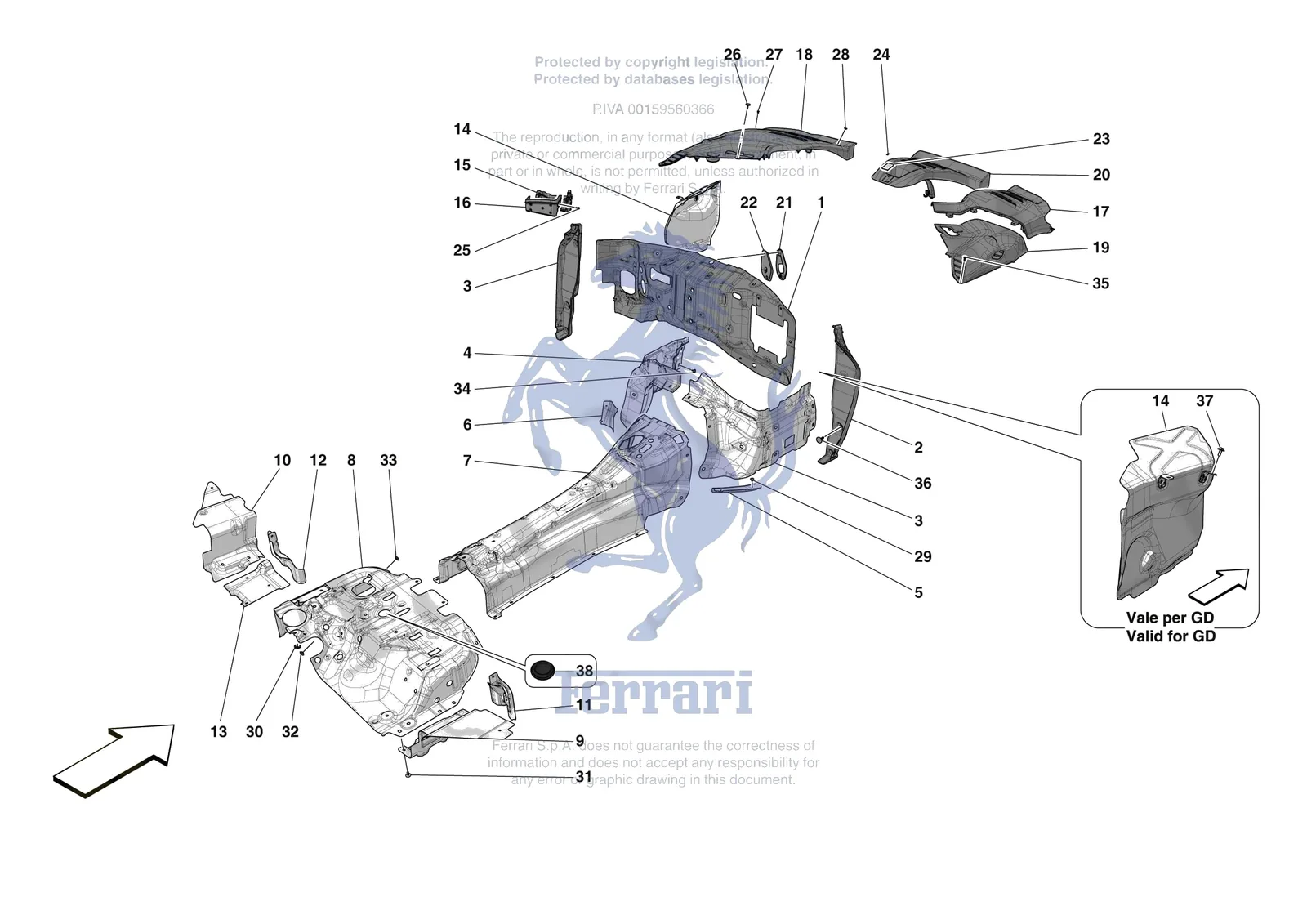

Ferrari Purosangue [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1793857Ferrari Engine Compartment Insulatio - 793857$738.64Special order, ships in 7-14 days
1884428Ferrari Engine Compartment Insulatio - 884428$664.78Special order, ships in 7-14 days
2882072Ferrari Front RH Fender Insulation - 882072$61.52Special order, ships in 7-14 days
3882077Ferrari Front LH Fender Insulation - 882077$61.52Special order, ships in 7-14 days
3884432Ferrari RH Catalytic Converter Heat - 884432$418.56Special order, ships in 7-14 days
4884431Ferrari LH Catalytic Converter Heat - 884431$418.56Special order, ships in 7-14 days
5884424Ferrari RH Underbody Catalytic Conve - 884424$130.47Special order, ships in 7-14 days
6884429Ferrari LH Underbody Catalytic Conve - 884429$130.47Special order, ships in 7-14 days
7884427Ferrari Tunnel Heat Shield - 884427$714.03Special order, ships in 7-14 days
8800600Ferrari Services Tub Heat Shield - 800600$492.43Special order, ships in 7-14 days
8884423Ferrari Services Tub Heat Shield - 884423$443.17Special order, ships in 7-14 days
9870469Ferrari RH Silencer Heat Shield - 870469$219.11Special order, ships in 7-14 days
9884426Ferrari RH Silencer Heat Shield - 884426SupersededOrder 870469 instead
10870468Ferrari LH Silencer Heat Shield - 870468$219.11Special order, ships in 7-14 days
10884430Ferrari LH Silencer Heat Shield - 884430SupersededOrder 870468 instead
11947703Ferrari RH Pipe Heat Shield - 947703$130.47Special order, ships in 7-14 days
12947701Ferrari LH Pipe Heat Shield - 947701$130.47Special order, ships in 7-14 days
13750099Ferrari Lift System Pump Heat Shield - 750099$150.17Special order, ships in 7-14 days
14812052Ferrari One Box Heat Shield - 812052$295.43Special order, ships in 7-14 days
14941534Ferrari One Box Heat Shield - 941534$320.06Special order, ships in 7-14 days
15810563Ferrari Compl. Front Heat Shield - 810563$113.24Special order, ships in 7-14 days
15953711Ferrari Compl. Front Heat Shield - 953711$100.93Special order, ships in 7-14 days
16810570Ferrari Compl. Rear Heat Shield - 810570$110.78Special order, ships in 7-14 days
16953709Ferrari Compl. Rear Heat Shield - 953709$98.46Special order, ships in 7-14 days
17944637Ferrari Compl. RH Engine Compartment - 944637SupersededOrder 975909 instead
17975909Ferrari Compl. RH Engine Compartment - 975909$320.06Special order, ships in 7-14 days
18944628Ferrari Paratia Estetica Vano Motore - 944628SupersededOrder 975905 instead
18975905Ferrari Paratia Estetica Vano Motore - 975905$369.30Special order, ships in 7-14 days
19944639Ferrari Compl. Oil Cover - 944639SupersededOrder 975918 instead
19975918Ferrari Compl. Oil Cover - 975918$214.19Special order, ships in 7-14 days
20748195Ferrari Complete Front Cosmetic Shie - 748195SupersededOrder 975893 instead
20975893Ferrari Complete Front Cosmetic Shie - 975893$443.17Special order, ships in 7-14 days
21840120Ferrari Steering Column Soundproofin - 840120$123.09Special order, ships in 7-14 days
21904919Ferrari Steering Column Soundproofin - 904919$93.53Special order, ships in 7-14 days
22904920Ferrari Steering Column Compartment - 904920$34.44Special order, ships in 7-14 days
22941450Ferrari Steering Column Compartment - 941450$44.29Special order, ships in 7-14 days
2414183376Ferrari Screw Clip - 14183376$0.19Available, ships in 3-6 days
25790361Ferrari Screw M5 x 16 - 790361$2.59Special order, ships in 7-14 days
26872926Ferrari Striker Fastener Screw M5 - 872926$30.57Special order, ships in 7-14 days
27900472Ferrari Fastener Button D.5 - 900472$0.98Special order, ships in 7-14 days
2814506587Ferrari Rubber Grommet - 14506587$0.38Available, ships in 3-6 days
2983222200Ferrari Fastener Button - 83222200$1.42Available, ships in 3-6 days
3067315400Ferrari Washer - 67315400$0.82Special order, ships in 7-14 days
31792394Ferrari Screw TE M6 x 18 - 792394$0.84Available, ships in 3-6 days
3284247300Ferrari Male Clip - 84247300$2.82Available, ships in 3-6 days
3384247400Ferrari Female Clip - 84247400$2.59Available, ships in 3-6 days
3481290900Ferrari Screw With Double Washer - 81290900$1.42In stock
3584436400Ferrari Fixing Button - 84436400$1.44Special order, ships in 7-14 days
3686232500Ferrari Button - 86232500$5.65Available, ships in 3-6 days
3781591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
3814507287Ferrari Rubber Plug - 14507287$30.57Special order, ships in 7-14 days
