Ferrari Purosangue — [VEHICLE TRIM] - E.24 - REAR AIR INTAKES (diagram 0127)

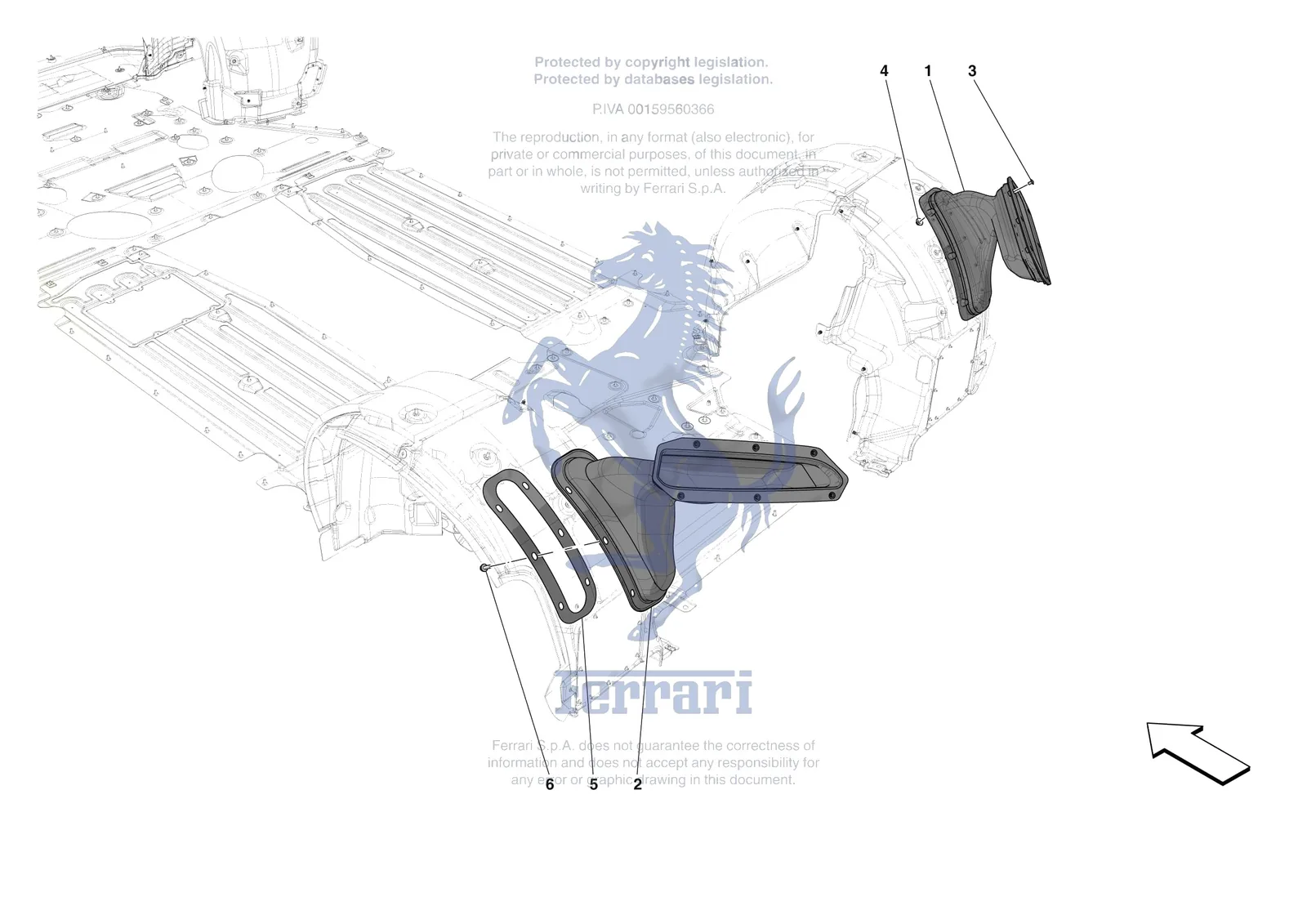

Exploded view of the [vehicle trim] - e.24 - rear air intakes on the Ferrari Purosangue, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.24 - REAR AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0127.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 1 | 742467 | Ferrari Compl. RH Rear Duct - 742467 | $689.41 | Special order, ships in 7-14 days |
| 2 | 744998 | Ferrari Compl. LH Rear Duct - 744998 | $270.83 | Special order, ships in 7-14 days |
| 3 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 4 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 5 | 948062 | Ferrari LH Duct Fastener Flange - 948062 | $71.38 | Special order, ships in 7-14 days |
| 6 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
