Ferrari Purosangue — [VEHICLE TRIM] - E.29.03 - FRONT DOORS - OPENING MECHANISMS AND HINGES (diagram 0134)

Exploded view of the [vehicle trim] - e.29.03 - front doors - opening mechanisms and hinges on the Ferrari Purosangue, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

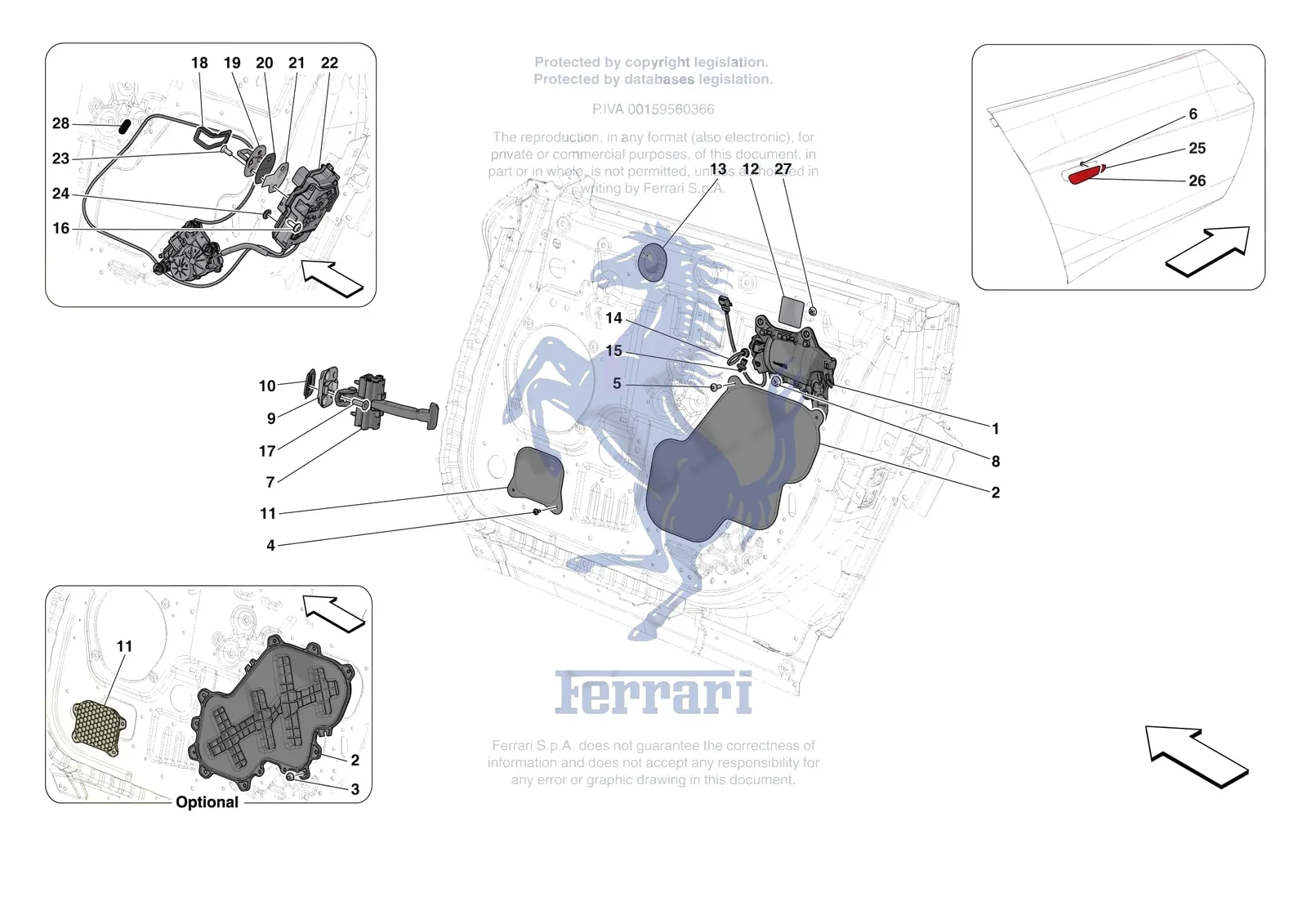

Ferrari Purosangue [VEHICLE TRIM] - E.29.03 - FRONT DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
82629100Ferrari Cable Grommet - 82629100SupersededOrder 898656 instead
848279Ferrari Door Striker Plate Shim - 848279SupersededOrder 802693 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
1868769Ferrari LH Outer Door Handle Module - 868769$713.04Special order, ships in 7-14 days
1868977Ferrari LH Outer Door Handle Module - 868977$516.33Available, ships in 3-6 days
1878004Ferrari LH Outer Door Handle Module - 878004SupersededOrder 868769 instead
1868970Ferrari RH Outer Door Handle Module - 868970$516.33Special order, ships in 7-14 days
1868974Ferrari RH Outer Door Handle Module - 868974$713.04Special order, ships in 7-14 days
1878164Ferrari RH Outer Door Handle Module - 878164SupersededOrder 868970 instead
2877997Ferrari Rear Plug For LH Front Water - 877997$226.49Special order, ships in 7-14 days
2878177Ferrari Rear Plug For RH Front Water - 878177$189.56Special order, ships in 7-14 days
2878157Ferrari Rear Waterproof Membrane For - 878157Price on requestContact us for price and availability
2878194Ferrari Rear Waterproof Membrane For - 878194Price on requestContact us for price and availability
314059118Ferrari Nut - 14059118$1.23Special order, ships in 7-14 days
485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
585833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
612578011Ferrari Flanged Nyloc Nut - 12578011$0.31Available, ships in 3-6 days
7878002Ferrari Door Check Strap - 878002$393.93Special order, ships in 7-14 days
813046111Ferrari Nut 6x6 - 13046111$0.73Special order, ships in 7-14 days
9878006Ferrari Gasket - 878006$39.37Special order, ships in 7-14 days
9995401Ferrari Gasket - 995401$65.63Special order, ships in 7-14 days
10913069Ferrari Seal On LH Flank - 913069SupersededOrder 995399 instead
10995399Ferrari Seal On LH Flank - 995399$37.13Special order, ships in 7-14 days
1055009600Ferrari Seal On RH Flank - 55009600$37.13Special order, ships in 7-14 days
10913074Ferrari Seal On RH Flank - 913074$37.18Special order, ships in 7-14 days
11878010Ferrari Front Plug For LH Front Wate - 878010$86.15Special order, ships in 7-14 days
11878025Ferrari Front Plug For RH Front Wate - 878025$130.47Special order, ships in 7-14 days
11878008Ferrari Front Waterproof Membrane Fo - 878008Price on requestContact us for price and availability
11878115Ferrari Front Waterproof Membrane Fo - 878115Price on requestContact us for price and availability
12942274Ferrari Adhesive Cap - 942274$5.44Special order, ships in 7-14 days
14786155Ferrari Clip - 786155$1.80Special order, ships in 7-14 days
15746595Ferrari Clip - 746595$3.47Special order, ships in 7-14 days
16889675Ferrari Screw - 889675$9.37Special order, ships in 7-14 days
1784872900Ferrari Screw - 84872900$0.82Available, ships in 3-6 days
18878020Ferrari Plate - 878020$26.24Special order, ships in 7-14 days
18995397Ferrari Plate - 995397$26.20Special order, ships in 7-14 days
19808736Ferrari Door Lock Striker Plate - 808736$29.48Special order, ships in 7-14 days
20802693Ferrari Door Striker Plate Shim - 802693$15.05Special order, ships in 7-14 days
21924578Ferrari Pellicola Per Scontrino Port - 924578$14.39Special order, ships in 7-14 days
22750616Ferrari Compl. LH Door Lock Unit - 750616$2,157.38Special order, ships in 7-14 days
22878007Ferrari Compl. LH Door Lock Unit - 878007$1,698.93Special order, ships in 7-14 days
22750619Ferrari Compl. RH Door Lock Unit - 750619$2,110.49Special order, ships in 7-14 days
22877994Ferrari Compl. RH Door Lock Unit - 877994$1,698.93Special order, ships in 7-14 days
2385133400Ferrari Screw TSEI M8 x 20 - 85133400$1.30Available, ships in 3-6 days
24896003Ferrari Cap - 896003$46.69Special order, ships in 7-14 days
25878116Ferrari LH Handle Button - 878116$21.85Special order, ships in 7-14 days
25878120Ferrari RH Handle Button - 878120$21.85Special order, ships in 7-14 days
26878178Ferrari LH Handle Two/Component Paddle - 878178$110.61Special order, ships in 7-14 days
26878117Ferrari RH Handle Two/Component Padd - 878117$110.61Special order, ships in 7-14 days
2714059328Ferrari Nut - 14059328$3.47Special order, ships in 7-14 days
28898656Ferrari Cable Grommet - 898656$6.10Special order, ships in 7-14 days
