Ferrari Purosangue — [VEHICLE TRIM] - E.29.04 - REAR DOORS - OPENING MECHANISMS AND HINGES (diagram 0135)

Exploded view of the [vehicle trim] - e.29.04 - rear doors - opening mechanisms and hinges on the Ferrari Purosangue, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

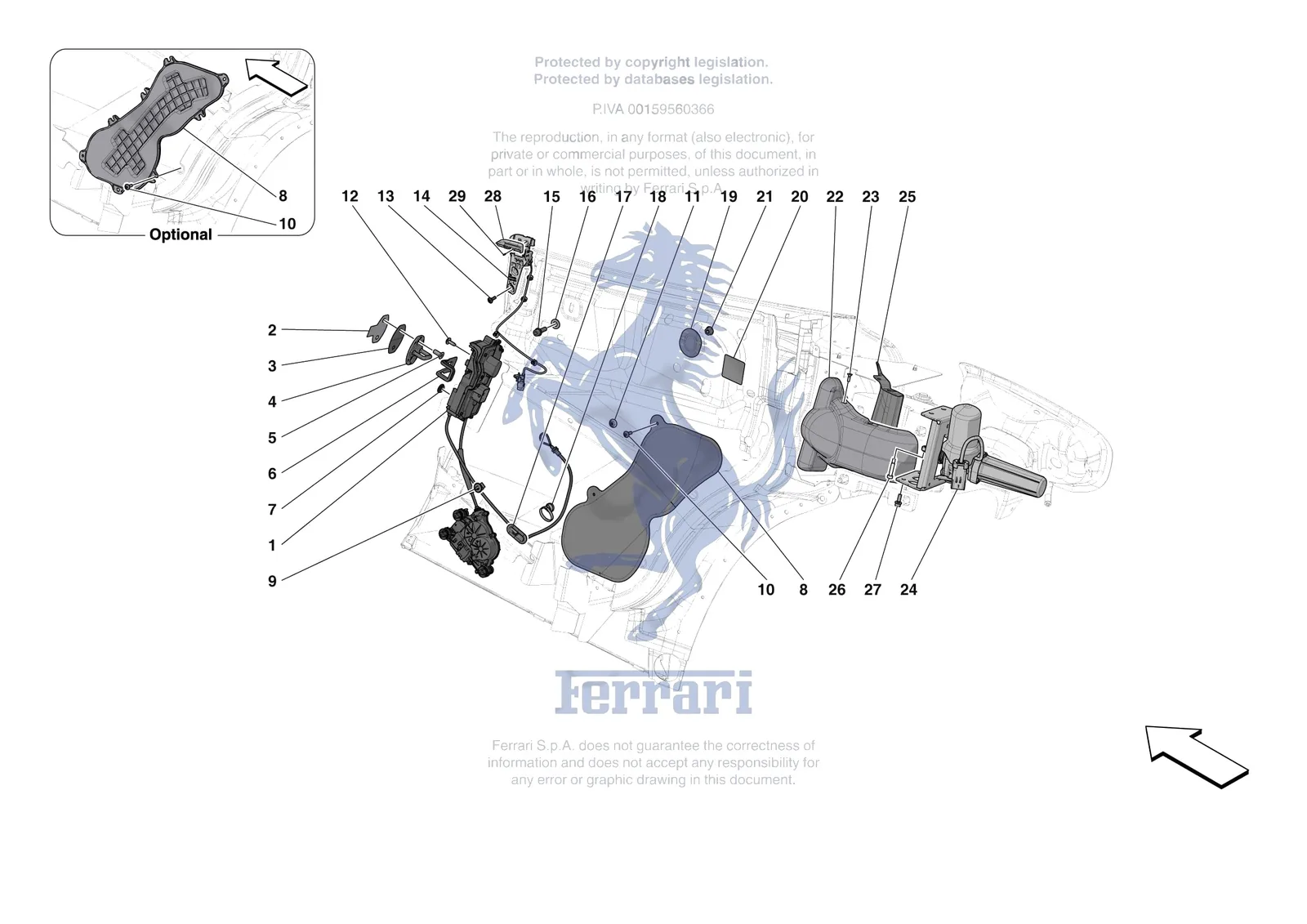

Ferrari Purosangue [VEHICLE TRIM] - E.29.04 - REAR DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
82629100Ferrari Cable Grommet - 82629100SupersededOrder 898656 instead
848279Ferrari Door Striker Plate Shim - 848279SupersededOrder 802693 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
1879620Ferrari Compl. LH Door Closing Syste - 879620$1,698.93Special order, ships in 7-14 days
1879858Ferrari Compl. RH Door Closing Syste - 879858$1,698.93Special order, ships in 7-14 days
2924578Ferrari Pellicola Per Scontrino Port - 924578$14.39Special order, ships in 7-14 days
3802693Ferrari Door Striker Plate Shim - 802693$15.05Special order, ships in 7-14 days
4808736Ferrari Door Lock Striker Plate - 808736$29.48Special order, ships in 7-14 days
585133400Ferrari Screw TSEI M8 x 20 - 85133400$1.30Available, ships in 3-6 days
6878020Ferrari Plate - 878020$26.24Special order, ships in 7-14 days
6995397Ferrari Plate - 995397$26.20Special order, ships in 7-14 days
7896003Ferrari Cap - 896003$46.69Special order, ships in 7-14 days
8879374Ferrari LH Rear Door Waterproof Memb - 879374$152.62Special order, ships in 7-14 days
8879830Ferrari LH Rear Door Waterproof Memb - 879830Price on requestContact us for price and availability
8879758Ferrari RH Rear Door Waterproof Memb - 879758$152.62Special order, ships in 7-14 days
8879798Ferrari RH Rear Door Waterproof Memb - 879798Price on requestContact us for price and availability
9822994Ferrari Clip - 822994$6.75Special order, ships in 7-14 days
1085833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1113832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
12889675Ferrari Screw - 889675$9.37Special order, ships in 7-14 days
1388004600Ferrari Screw 5x16 - 88004600$3.26Special order, ships in 7-14 days
1455008667Ferrari LH Door Handle - 55008667SupersededOrder 55057557 instead
1455057557Ferrari LH Door Handle - 55057557$615.54Available, ships in 3-6 days
14957492Ferrari LH Door Handle - 957492SupersededOrder 55057557 instead
1455057560Ferrari RH Door Handle - 55057560$615.54Special order, ships in 7-14 days
14957494Ferrari RH Door Handle - 957494SupersededOrder 55057560 instead
1455008682Ferrari RH Rear Door Handle - 55008682SupersededOrder 55057560 instead
15231628Ferrari Screw 8x25 - 231628$1.15Special order, ships in 7-14 days
15834367Ferrari Screw 8x25 - 834367SupersededOrder 231628 instead
1610730514Ferrari Plain Washer - 10730514SupersededOrder 10730521 instead
17898656Ferrari Cable Grommet - 898656$6.10Special order, ships in 7-14 days
18786155Ferrari Clip - 786155$1.80Special order, ships in 7-14 days
20942274Ferrari Adhesive Cap - 942274$5.44Special order, ships in 7-14 days
2114059328Ferrari Nut - 14059328$3.47Special order, ships in 7-14 days
22879467Ferrari Outer Cover Of LH Rear Door - 879467$41.82Special order, ships in 7-14 days
22879993Ferrari Outer Cover Of RH Rear Door - 879993$41.82Special order, ships in 7-14 days
2380365900Ferrari Screw M4 x 12 TSEI - 80365900$0.31Available, ships in 3-6 days
24902443Ferrari Compl. LH Power Door Hinge - 902443$2,298.08Available, ships in 3-6 days
24902446Ferrari Compl. RH Power Door Hinge - 902446$2,298.08Available, ships in 3-6 days
25741941Ferrari Inner Cover Of RH Rear Door - 741941$21.64Special order, ships in 7-14 days
26231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
27811810Ferrari Screw - 811810$13.76Special order, ships in 7-14 days
28957483Ferrari LH Handle Pull - 957483$15.49Special order, ships in 7-14 days
28957484Ferrari RH Handle Pull - 957484$15.49Special order, ships in 7-14 days
29957482Ferrari Pin - 957482$0.59Special order, ships in 7-14 days
