Ferrari Purosangue — [VEHICLE TRIM] - E.29.05 - FRONT DOORS - WINDOW AND WINDOW LIFTER (diagram 0136)
Exploded view of the [vehicle trim] - e.29.05 - front doors - window and window lifter on the Ferrari Purosangue, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

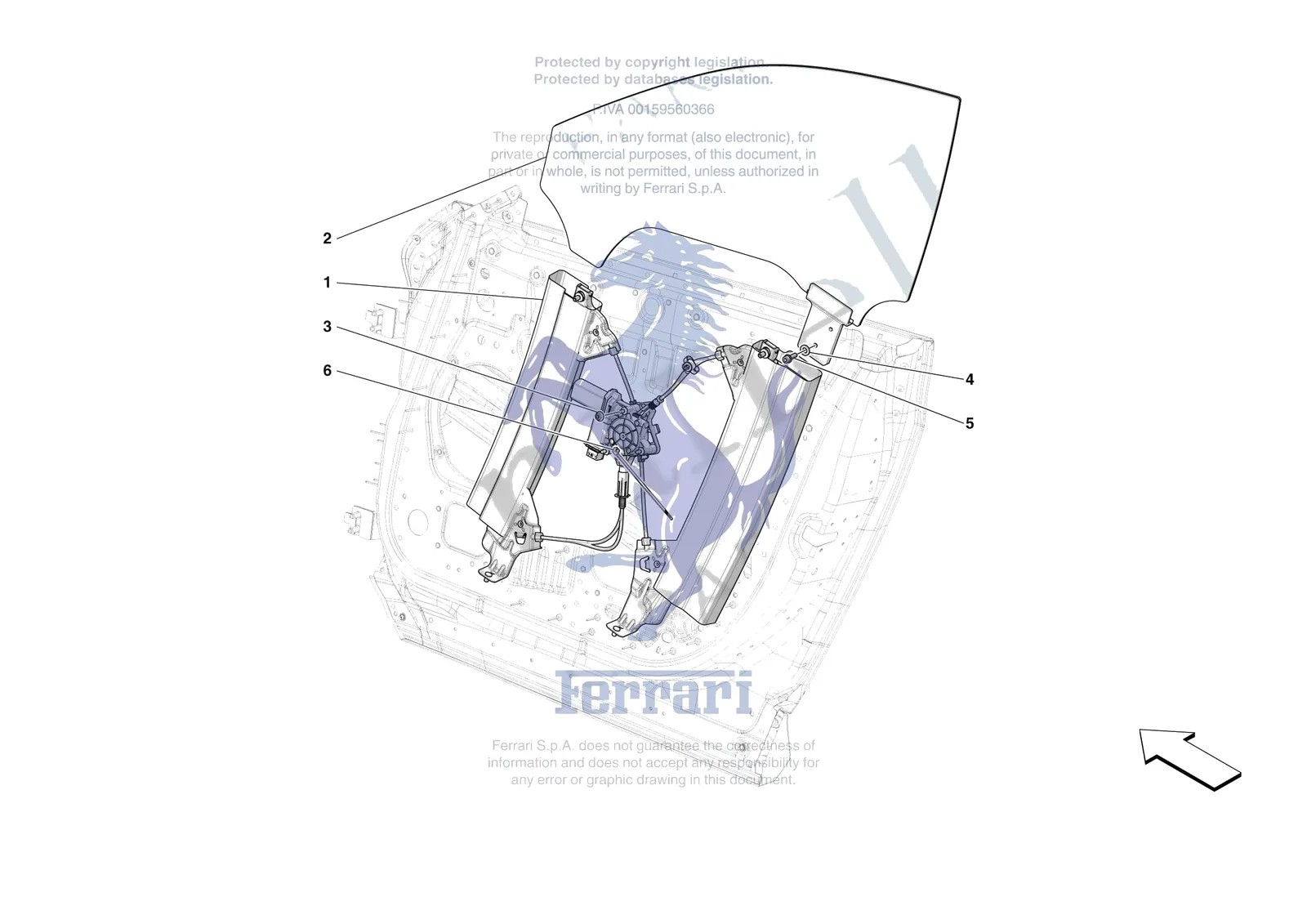

![Ferrari Purosangue [VEHICLE TRIM] - E.29.05 - FRONT DOORS - WINDOW AND WINDOW LIFTER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0136.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 878029 | Ferrari LH Window Lifter - 878029 | $1,225.63 | Special order, ships in 7-14 days |
| 1 | 878160 | Ferrari RH Window Lifter - 878160 | $1,225.63 | Special order, ships in 7-14 days |
| 2 | 55056664 | Ferrari Compl. RH Front Door Window Glass - 55056664 | $1,597.71 | Contact us to order |
| 2 | 878142 | Ferrari Cpl Cristallo Porta Ant. Dx - 878142 | Superseded | Order 55056664 instead |
| 2 | 55056653 | Ferrari Cpl Cristallo Porta Ant. Sx - 55056653 | $1,597.71 | Contact us to order |
| 2 | 878179 | Ferrari Cpl Cristallo Porta Ant. Sx - 878179 | Superseded | Order 55056653 instead |
| 3 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 4 | 10730514 | Ferrari Plain Washer - 10730514 | Superseded | Order 10730521 instead |
| 5 | 88770800 | Ferrari Screw - 88770800 | $7.63 | Special order, ships in 7-14 days |
| 5 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 5 | 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead |
| 6 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
