Ferrari Purosangue — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- (diagram 0156)

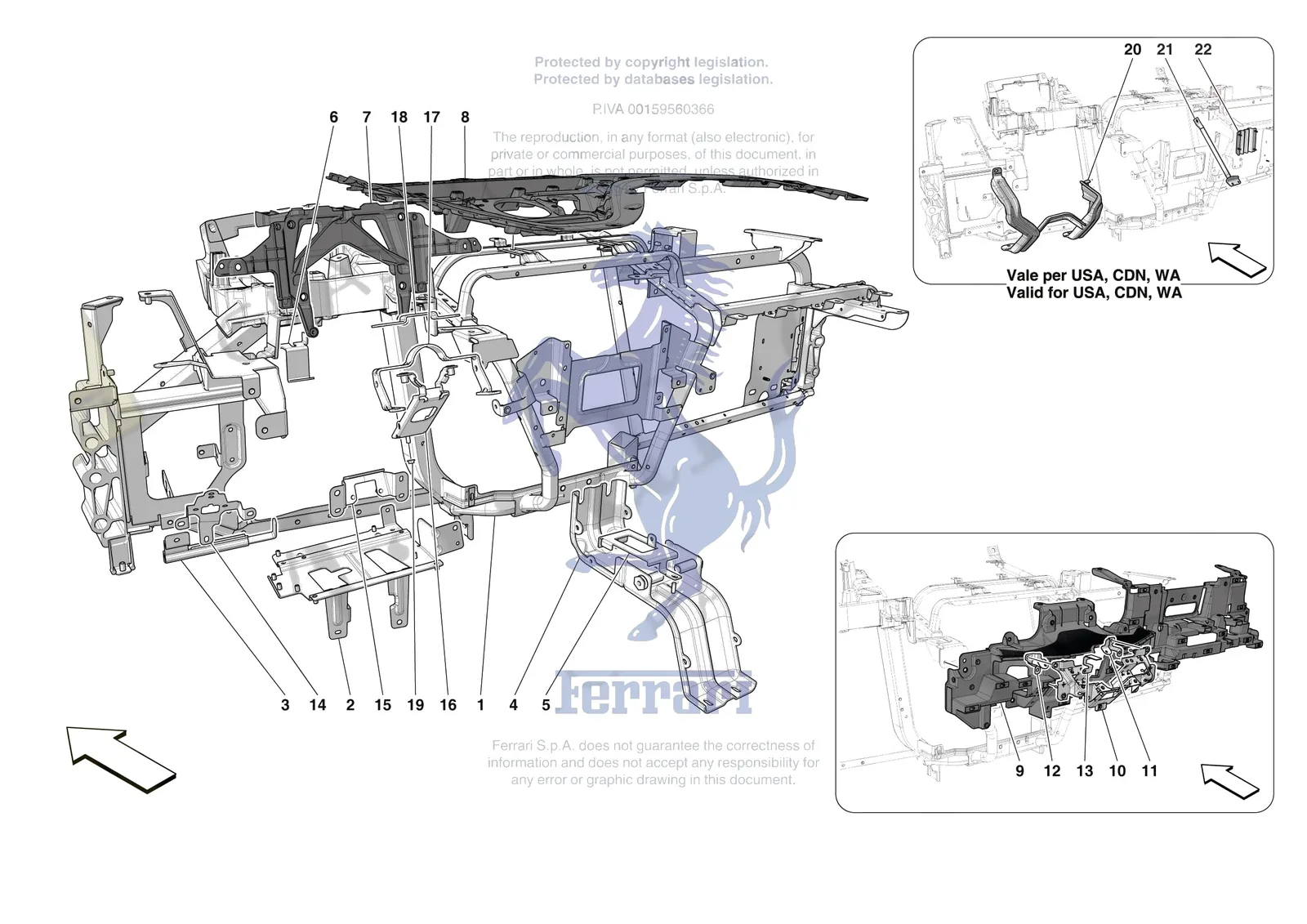

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure -not for rhd- on the Ferrari Purosangue, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0156.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 871125 | Ferrari Complete Cross Member - 871125 | $5,599.55 | Special order, ships in 7-14 days |
| 2 | 850041 | Ferrari Nit Bracket - 850041 | $141.95 | Special order, ships in 7-14 days |
| 3 | 850048 | Ferrari Lower Body Bracket - 850048 | $39.14 | Special order, ships in 7-14 days |
| 4 | 869707 | Ferrari Front Centre Console Unit Fa - 869707 | $200.69 | Special order, ships in 7-14 days |
| 5 | 850042 | Ferrari Ionising ECU Mounting Bracke - 850042 | $36.69 | Special order, ships in 7-14 days |
| 6 | 905945 | Ferrari Steering Column Clip Fastene - 905945 | $39.14 | Special order, ships in 7-14 days |
| 7 | 845744 | Ferrari INSTRUMENT BRACKET - 845744 | Price on request | Special order, ships in 7-14 days |
| 8 | 845946 | Ferrari Front Bag Cover Substructure - 845946 | Price on request | Special order, ships in 7-14 days |
| 8 | 901432 | Ferrari Front Bag Cover Substructure - 901432 | $856.69 | Special order, ships in 7-14 days |
| 9 | 847312 | Ferrari Dashboard Carrier - 847312 | $881.17 | Special order, ships in 7-14 days |
| 9 | 910242 | Ferrari Dashboard Carrier - 910242 | $979.09 | Special order, ships in 7-14 days |
| 10 | 849985 | Ferrari Magic Knob Spider - 849985 | $193.35 | Special order, ships in 7-14 days |
| 11 | 768573 | Ferrari RH MAGIC KNOB BRACKET - 768573 | Price on request | Special order, ships in 7-14 days |
| 12 | 768560 | Ferrari LH MAGIC KNOB BRACKET - 768560 | Price on request | Special order, ships in 7-14 days |
| 13 | 849355 | Ferrari Microphone Insulation Bracke - 849355 | $110.13 | Special order, ships in 7-14 days |
| 14 | 848418 | Ferrari Fastener Bracket - 848418 | $34.25 | Special order, ships in 7-14 days |
| 15 | 848413 | Ferrari Mounting Bracket For Engine - 848413 | $48.93 | Special order, ships in 7-14 days |
| 16 | 850045 | Ferrari Lower Steering Column Bracke - 850045 | $73.73 | Special order, ships in 7-14 days |
| 17 | 741636 | Ferrari Upper Steering Column Bracke - 741636 | $39.14 | Special order, ships in 7-14 days |
| 18 | 850050 | Ferrari Upper Steering Column Trim B - 850050 | $17.19 | Special order, ships in 7-14 days |
| 19 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 20 | 945536 | Ferrari Bracket - 945536 | $489.54 | Special order, ships in 7-14 days |
| 21 | 945544 | Ferrari Dashboard Cross Member Cross - 945544 | $48.93 | Special order, ships in 7-14 days |
| 22 | 945891 | Ferrari Hvac Buffer Bracket - 945891 | $95.43 | Special order, ships in 7-14 days |
