Ferrari Purosangue — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0160)

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari Purosangue, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

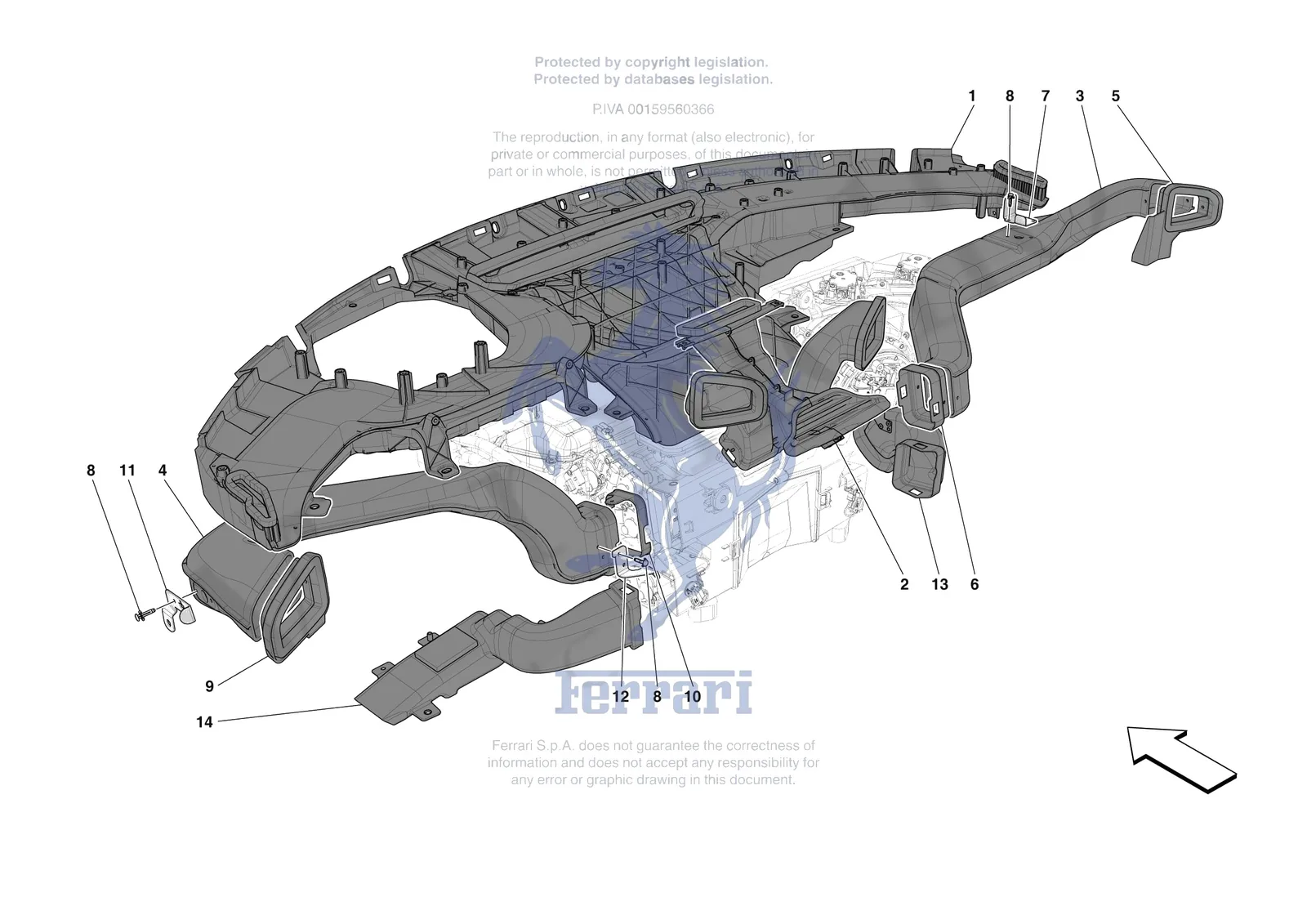

Ferrari Purosangue [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1841923Ferrari Defroster Duct - 841923Price on requestContact us for price and availability
1901429Ferrari Defroster Duct - 901429$1,034.12Special order, ships in 7-14 days
2850017Ferrari Diffuser Vent Duct - 850017$344.69Special order, ships in 7-14 days
2850029Ferrari Diffuser Vent Duct - 850029$344.69Special order, ships in 7-14 days
3845614Ferrari RH Passenger Air Duct - 845614$295.43Special order, ships in 7-14 days
4845615Ferrari LH Driver Air Duct - 845615$295.43Special order, ships in 7-14 days
5888911Ferrari RH Passenger Vent Connector - 888911$13.51Special order, ships in 7-14 days
6888918Ferrari RH Hvac Connector - 888918$31.93Special order, ships in 7-14 days
7888909Ferrari Passenger Side Temperature S - 888909$16.46Special order, ships in 7-14 days
814415690Ferrari Rivet - 14415690$1.80Available, ships in 3-6 days
9888905Ferrari LH Driver Vent Connector - 888905$13.51Special order, ships in 7-14 days
10911509Ferrari Duct Reinforcement Frame - 911509$31.99Special order, ships in 7-14 days
11888904Ferrari Driver Side Temperature Sens - 888904$21.89Special order, ships in 7-14 days
12888902Ferrari Driver Side Duct Fastener Br - 888902$18.44Special order, ships in 7-14 days
13845430Ferrari RH Front Footwell Air Duct - 845430$219.11Special order, ships in 7-14 days
14845380Ferrari LH Front Footwell Air Duct - 845380$393.93Special order, ships in 7-14 days
