Ferrari Purosangue — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0175)

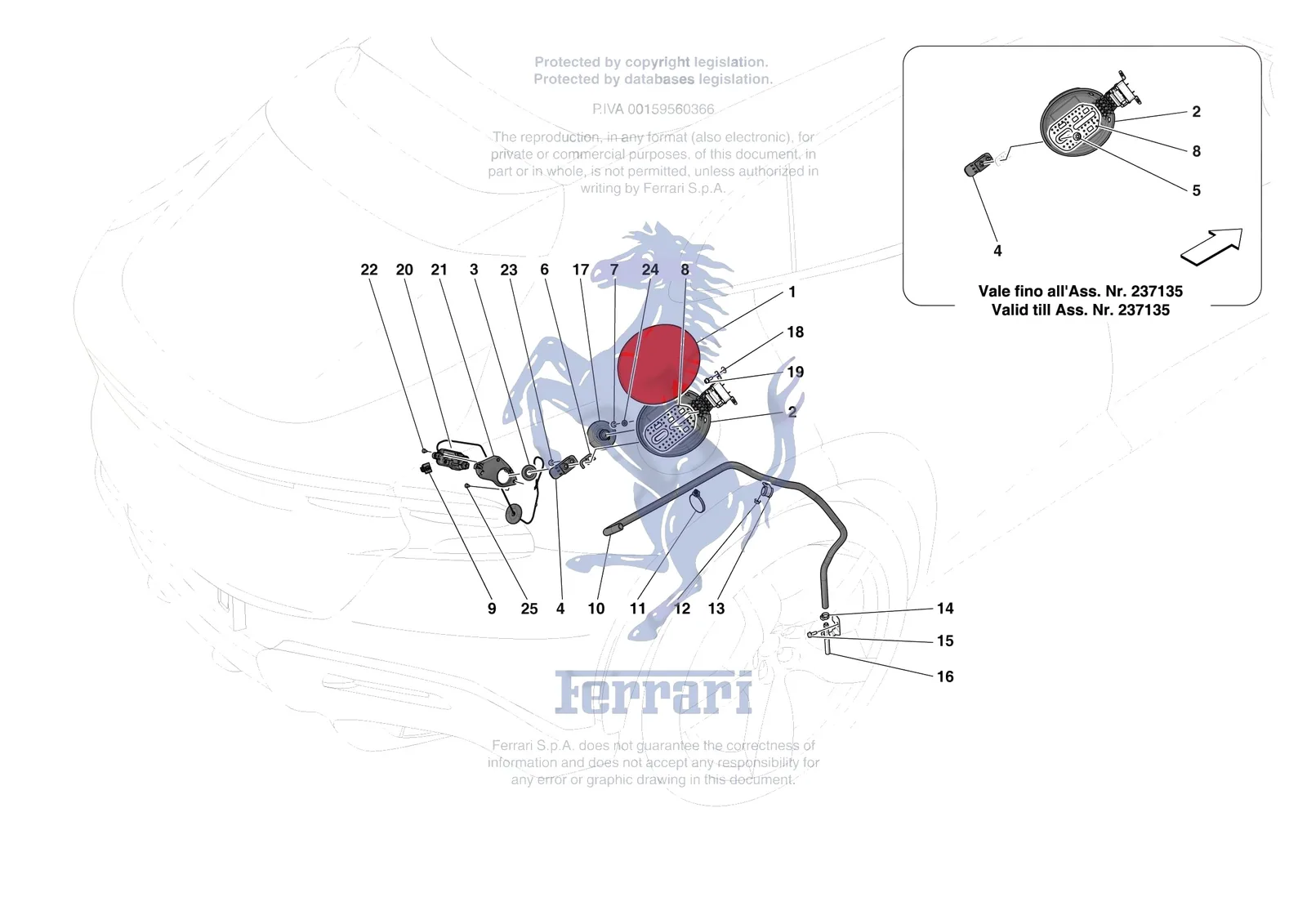

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari Purosangue, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0175.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 985900034 | Ferrari Compl. Fuel Filler Flap - 985900034 | $492.43 | Special order, ships in 7-14 days |
| 2 | 55043532 | Ferrari Cerniera Sportello Carburant - 55043532 | $467.80 | Special order, ships in 7-14 days |
| 2 | 848082 | Ferrari Compl. Fuel Filler Flap Hing - 848082 | Superseded | Order 55043532 instead |
| 3 | 89180500 | Ferrari Gasket - 89180500 | $15.28 | Special order, ships in 7-14 days |
| 4 | 55063143 | Ferrari Striker For Actuator - 55063143 | Superseded | Order 881359 instead |
| 4 | 881359 | Ferrari Striker For Actuator - 881359 | $56.60 | Special order, ships in 7-14 days |
| 5 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 6 | 84046900 | Ferrari Spacer Plate - 84046900 | $14.72 | Special order, ships in 7-14 days |
| 7 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 7 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 8 | 881358 | Ferrari Shim Plate - 881358 | $16.96 | Special order, ships in 7-14 days |
| 9 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 10 | 881391 | Ferrari Fuel Drain Pipe - 881391 | $44.29 | Special order, ships in 7-14 days |
| 11 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 12 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 13 | 10450490 | Ferrari Bracket P Clip16mm - 10450490 | $1.04 | Available, ships in 3-6 days |
| 14 | 10716470 | Ferrari Collar - 10716470 | $2.59 | Available, ships in 3-6 days |
| 15 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 16 | 881396 | Ferrari Compl. Rigid Fuel Drain Pipe - 881396 | $83.68 | Special order, ships in 7-14 days |
| 17 | 89290600 | Ferrari FUEL FILLER FLAP RUBBER BLOCK - 89290600 | $29.48 | Special order, ships in 7-14 days |
| 18 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 19 | 11566227 | Ferrari Screw 5x14 - 11566227 | $2.59 | Special order, ships in 7-14 days |
| 20 | 88436500 | Ferrari Compl. Push-Push - 88436500 | $191.76 | Special order, ships in 7-14 days |
| 21 | 88945100 | Ferrari Supporto Attuatore Carburant - 88945100 | $31.99 | Special order, ships in 7-14 days |
| 22 | 15516204 | Ferrari Screw 4 x 12 - 15516204 | $0.59 | Available, ships in 3-6 days |
| 23 | 85834000 | Ferrari Screw M5 x 25 - 85834000 | $0.71 | Special order, ships in 7-14 days |
| 24 | 911975 | Ferrari Flat Washer D 5.15-15X - 911975 | $0.79 | Special order, ships in 7-14 days |
