Ferrari Purosangue — [VEHICLE TRIM] - E.57.01 - AIR CONDITIONING SYSTEM - FRONT ZONE EVAPORATOR (diagram 0176)
Exploded view of the [vehicle trim] - e.57.01 - air conditioning system - front zone evaporator on the Ferrari Purosangue, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

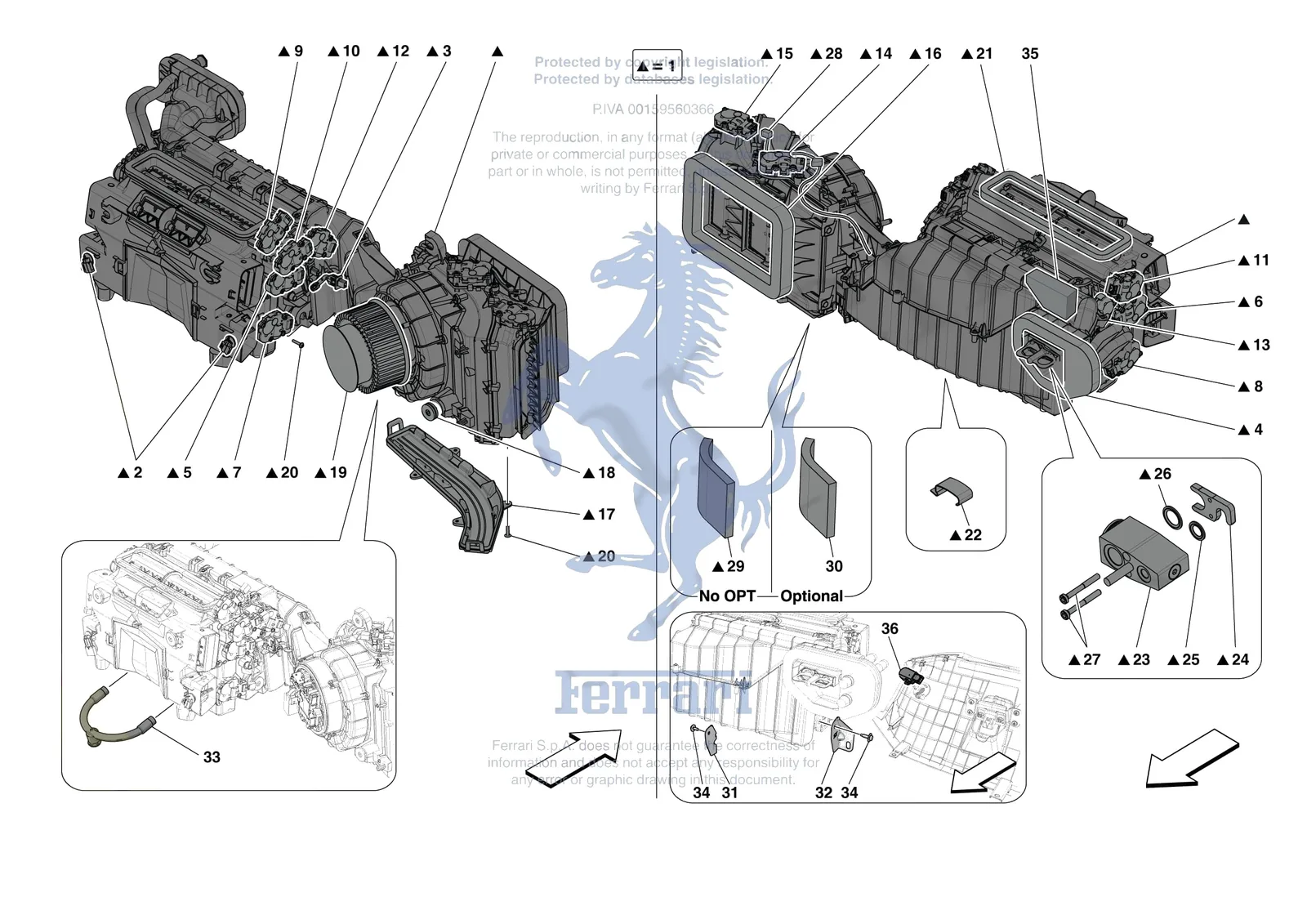

![Ferrari Purosangue [VEHICLE TRIM] - E.57.01 - AIR CONDITIONING SYSTEM - FRONT ZONE EVAPORATOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0176.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 781682 | Ferrari Compl. Ac Unit - 781682 | $4,456.29 | Special order, ships in 7-14 days |
| 1 | 88714900 | Ferrari Compl. Ac Unit - 88714900 | $4,375.77 | Special order, ships in 7-14 days |
| 2 | 88712600 | Ferrari Temperature Sensor - 88712600 | $34.94 | Special order, ships in 7-14 days |
| 3 | 819834 | Ferrari Evaporator Sensor - 819834 | $19.20 | Special order, ships in 7-14 days |
| 4 | 819838 | Ferrari Firewall Seal - 819838 | $86.04 | Special order, ships in 7-14 days |
| 5 | 819840 | Ferrari RH Lateral Vent Actuator - 819840 | $214.17 | Special order, ships in 7-14 days |
| 6 | 819839 | Ferrari LH Lateral Vent Actuator - 819839 | $203.24 | Special order, ships in 7-14 days |
| 7 | 819844 | Ferrari RH Heater Actuator - 819844 | $214.17 | Special order, ships in 7-14 days |
| 8 | 819843 | Ferrari LH Heater Actuator - 819843 | $214.17 | Special order, ships in 7-14 days |
| 9 | 819845 | Ferrari Defroster Actuator - 819845 | $214.17 | Special order, ships in 7-14 days |
| 10 | 819847 | Ferrari RH Central Vent Actuator - 819847 | $214.17 | Available, ships in 3-6 days |
| 11 | 819846 | Ferrari LH Central Vent Actuator - 819846 | $214.17 | Special order, ships in 7-14 days |
| 12 | 819849 | Ferrari RH Temperature Actuator - 819849 | $213.21 | Special order, ships in 7-14 days |
| 13 | 819848 | Ferrari LH Temperature Actuator - 819848 | $214.17 | Special order, ships in 7-14 days |
| 14 | 819891 | Ferrari Air Inlet Actuator - 819891 | $214.46 | Special order, ships in 7-14 days |
| 14 | 819850 | Ferrari LH Air Inlet - 819850 | $213.21 | Special order, ships in 7-14 days |
| 15 | 819852 | Ferrari LH Recirculation - 819852 | $214.17 | Special order, ships in 7-14 days |
| 15 | 819892 | Ferrari Recirculation Actuator - 819892 | $214.46 | Special order, ships in 7-14 days |
| 16 | 819853 | Ferrari Air Inlet Seal - 819853 | $23.33 | Special order, ships in 7-14 days |
| 17 | 819854 | Ferrari Pollen Filter Cover Panel - 819854 | $135.20 | Special order, ships in 7-14 days |
| 17 | 819889 | Ferrari Pollen Filter Cover Panel - 819889 | $145.25 | Available, ships in 3-6 days |
| 18 | 68389800 | Ferrari Rubber Pad - 68389800 | $12.52 | Special order, ships in 7-14 days |
| 19 | 819855 | Ferrari Fan - 819855 | $1,671.97 | Special order, ships in 7-14 days |
| 19 | 819890 | Ferrari Fan - 819890 | $1,524.44 | Special order, ships in 7-14 days |
| 20 | 819837 | Ferrari Screw - 819837 | $9.16 | Special order, ships in 7-14 days |
| 21 | 819859 | Ferrari Seal Tape - 819859 | $23.33 | Special order, ships in 7-14 days |
| 22 | 819860 | Ferrari Clip - 819860 | $8.05 | Special order, ships in 7-14 days |
| 23 | 819861 | Ferrari Expansion Valve - 819861 | $142.04 | Special order, ships in 7-14 days |
| 24 | 819881 | Ferrari Plate - 819881 | $37.13 | Special order, ships in 7-14 days |
| 25 | 819882 | Ferrari Washer - 819882 | $10.68 | Special order, ships in 7-14 days |
| 26 | 819883 | Ferrari Washer - 819883 | $45.87 | Special order, ships in 7-14 days |
| 27 | 819885 | Ferrari Screw - 819885 | $83.03 | Special order, ships in 7-14 days |
| 28 | 819888 | Ferrari Wiring Harness - 819888 | $516.33 | Special order, ships in 7-14 days |
| 28 | 861350 | Ferrari Wiring Harness - 861350 | $640.17 | Special order, ships in 7-14 days |
| 29 | 819887 | Ferrari Portofino Cabin Filter - 819887 | $72.78 | In stock |
| 30 | 822767 | Ferrari Antibacterial Filter - 822767 | $590.91 | Available, ships in 3-6 days |
| 31 | 850548 | Ferrari RH Bracket Fastening Hvac To - 850548 | $29.52 | Special order, ships in 7-14 days |
| 32 | 850541 | Ferrari LH Bracket Fastening Hvac To - 850541 | $29.52 | Special order, ships in 7-14 days |
| 33 | 88408300 | Ferrari Condensate Drain Pipe - 88408300 | $83.68 | Special order, ships in 7-14 days |
| 34 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
| 35 | 978909 | Ferrari Hvac Insulation - 978909 | $6.61 | Special order, ships in 7-14 days |
| 36 | 89274100 | Ferrari Sensore Temperatura - 89274100 | $157.34 | Special order, ships in 7-14 days |
