Ferrari Purosangue — [VEHICLE TRIM] - E.57.03 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0178)

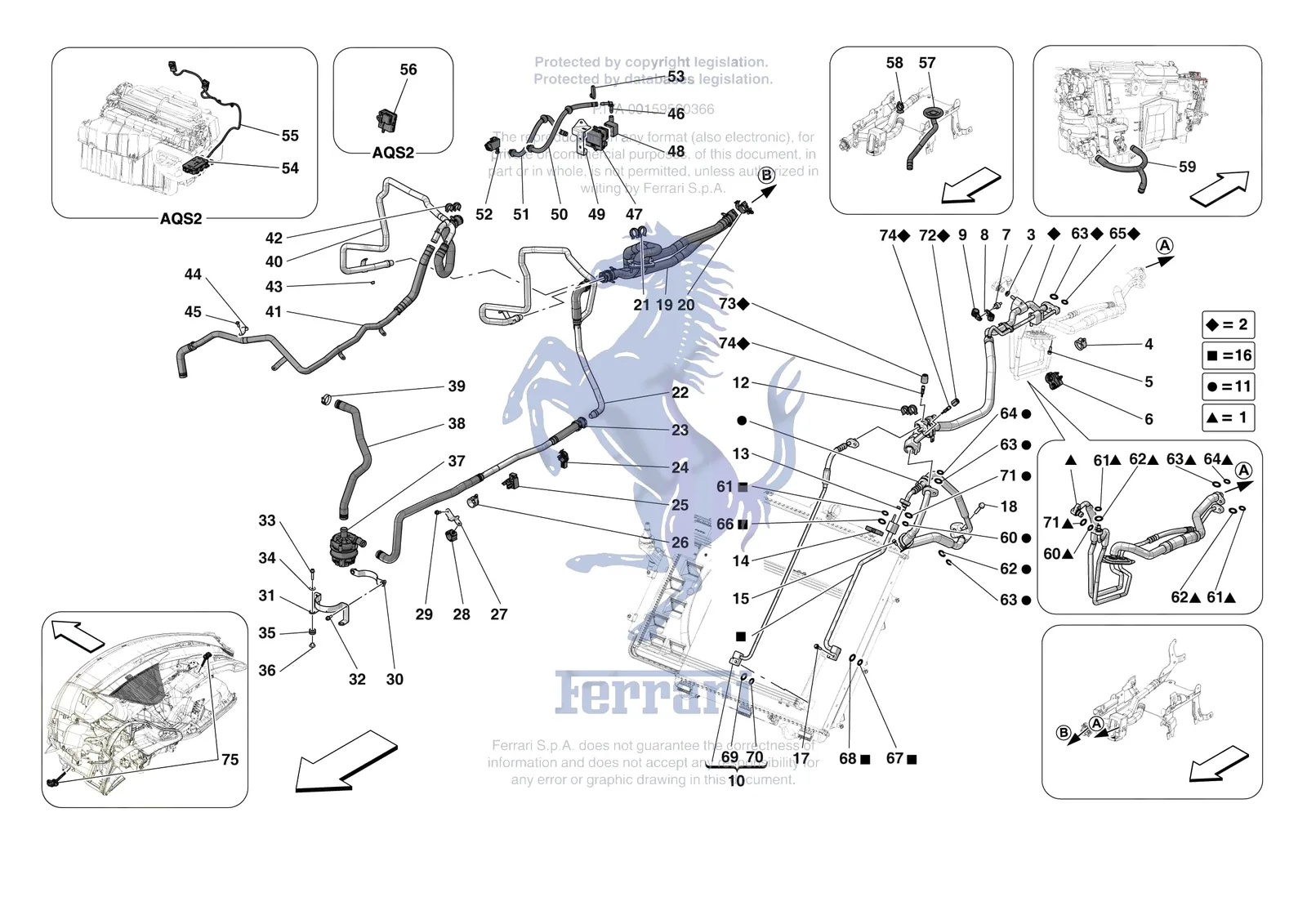

Exploded view of the [vehicle trim] - e.57.03 - ac system - air conditioner system on the Ferrari Purosangue, with 92 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [VEHICLE TRIM] - E.57.03 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
16044021Ferrari Bolt - 16044021SupersededOrder 16044024 instead
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
13442484Ferrari Gasket - 13442484SupersededOrder 11342484 instead
14066017Ferrari Nut - 14066017$5.65Special order, ships in 7-14 days
119631Ferrari Screw - 119631SupersededOrder 16044024 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1956125Ferrari Rear Hvac Pipes - 956125$911.01Special order, ships in 7-14 days
2781458Ferrari Ihx Pipe - 781458$1,083.38Special order, ships in 7-14 days
314066021Ferrari Nut - 14066021$5.86Special order, ships in 7-14 days
410442090Ferrari P Clip Bracket With Sheath D26 - 10442090$1.42Available, ships in 3-6 days
5231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
6787854Ferrari Clip - 787854$28.42Special order, ships in 7-14 days
7914567Ferrari Cylindrical Bushing - 914567$19.66Special order, ships in 7-14 days
8320597Ferrari Clip - 320597$3.70Special order, ships in 7-14 days
9320598Ferrari Clip - 320598$3.70Special order, ships in 7-14 days
10865647Ferrari Pipe From Condenser To Ihx - 865647$295.43Special order, ships in 7-14 days
11810135Ferrari Ac System Pipe On Compressor - 810135$861.77Special order, ships in 7-14 days
1282329900Ferrari Clip - 82329900$1.92Special order, ships in 7-14 days
1314040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
14294693Ferrari Clip - 294693$8.05Special order, ships in 7-14 days
15282392Ferrari Screw 6x14 - 282392$0.96Available, ships in 3-6 days
16808838Ferrari Pipe From Compressor Disconn - 808838$196.96Special order, ships in 7-14 days
1713837017Ferrari Screw 6X30 - 13837017$7.19Special order, ships in 7-14 days
1816044024Ferrari Bolt - 16044024$0.72In stock
19896357Ferrari Compl. Rear Hvac Pipes - 896357SupersededOrder 957131 instead
19957131Ferrari Compl. Rear Hvac Pipes - 957131$664.78Special order, ships in 7-14 days
20790253Ferrari Clip - 790253$4.35Special order, ships in 7-14 days
21160013Ferrari Oil Pipe Retaining Clip - 160013$1.69Available, ships in 3-6 days
22888688Ferrari Compl. Hvac Delivery Pipe - 888688$763.27Special order, ships in 7-14 days
23899352Ferrari Compl. Hvac Delivery Pipe Di - 899352$590.91Special order, ships in 7-14 days
24266156Ferrari Clip - 266156$1.28Special order, ships in 7-14 days
24769594Ferrari Clip - 769594$10.70Special order, ships in 7-14 days
2581649300Ferrari Clip - 81649300$13.55Special order, ships in 7-14 days
2610441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
27910791Ferrari Bracket - 910791$34.44Special order, ships in 7-14 days
28248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
2985833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
30809455Ferrari Rear Pump Bracket - 809455$49.22Special order, ships in 7-14 days
31809454Ferrari Front Pump Bracket - 809454$56.60Special order, ships in 7-14 days
32282394Ferrari Screw - 282394$1.48Special order, ships in 7-14 days
33231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
3412643724Ferrari/Maserati Washer - 12643724$0.20In stock
35103549Ferrari Grommet - 103549$2.80In stock
36149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
37838313Ferrari HV Circuit Electric Pump - 838313$721.22Special order, ships in 7-14 days
38809453Ferrari Pump Inlet Hose - 809453$184.65Special order, ships in 7-14 days
39262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
40856056Ferrari Compl. Hvac Outlet Pipe - 856056$787.90Special order, ships in 7-14 days
41943538Ferrari Cpl. Hvac Pipe On Engine - 943538$664.78Special order, ships in 7-14 days
42292861Ferrari Clip - 292861$2.38Special order, ships in 7-14 days
4314040511Ferrari Nut - Self Locking - 14040511$1.11Special order, ships in 7-14 days
44943590Ferrari Bracket Fastening Hvac Pipe - 943590$11.79Special order, ships in 7-14 days
45306938Ferrari Screw - 306938$0.82Special order, ships in 7-14 days
46887370Ferrari Union - 887370$49.14Special order, ships in 7-14 days
47766563Ferrari External Particulate Sensor - 766563$677.50Special order, ships in 7-14 days
48887227Ferrari External Particulate Sensor - 887227$56.52Special order, ships in 7-14 days
49944761Ferrari External Particulate Sensor - 944761$49.22Special order, ships in 7-14 days
49850550Ferrari RH Bracket Of External Parti - 850550$56.60Special order, ships in 7-14 days
50887225Ferrari External Particulate Sensor - 887225$61.52Special order, ships in 7-14 days
51887224Ferrari External Particulate Sensor - 887224$61.52Special order, ships in 7-14 days
52217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
53839918Ferrari Ac Air Quality Sensor - 839918$163.89Special order, ships in 7-14 days
54766562Ferrari Ionising Unit E-Box - 766562$319.62Special order, ships in 7-14 days
55868997Ferrari Ionising Unit Emitter Wiring - 868997$393.93Special order, ships in 7-14 days
56841432Ferrari Internal Particulate Sensor - 841432$677.50Special order, ships in 7-14 days
57865328Ferrari Rear Hvac Drain Pipe - 865328$96.01Special order, ships in 7-14 days
58896231Ferrari Clip - 896231$1.40Special order, ships in 7-14 days
59980168Ferrari Condensate Drain Pipe - 980168$61.52Special order, ships in 7-14 days
6011084284Ferrari Gasket - 11084284$10.46Special order, ships in 7-14 days
6111084084Ferrari Gasket - 11084084$10.46Special order, ships in 7-14 days
6211342584Ferrari Washer 1/2" - 11342584$19.42Available, ships in 3-6 days
6311342784Ferrari Washer 3/4" - 11342784$19.42Available, ships in 3-6 days
6411084384Ferrari Gasket - 11084384$20.51Special order, ships in 7-14 days
6511342484Ferrari Gasket - 11342484$10.46Special order, ships in 7-14 days
6714450683Ferrari Gasket - 14450683$10.48Special order, ships in 7-14 days
6810319184Ferrari Gasket - 10319184$10.48Available, ships in 3-6 days
6910318884Ferrari Gasket - 10318884$10.46Special order, ships in 7-14 days
7014450483Ferrari Gasket - 14450483$10.46Special order, ships in 7-14 days
7111342684Ferrari Gasket - 11342684$50.24Special order, ships in 7-14 days
7255029869Ferrari LP Plug - 55029869$21.60Special order, ships in 7-14 days
7355029871Ferrari High Pressure Cap - 55029871$23.57Special order, ships in 7-14 days
7455029938Ferrari Valve Mechanism - 55029938$34.40Special order, ships in 7-14 days
7588712600Ferrari Temperature Sensor - 88712600$34.94Special order, ships in 7-14 days
