Ferrari Purosangue — [VEHICLE TRIM] - E.58 - BADGES (diagram 0179)

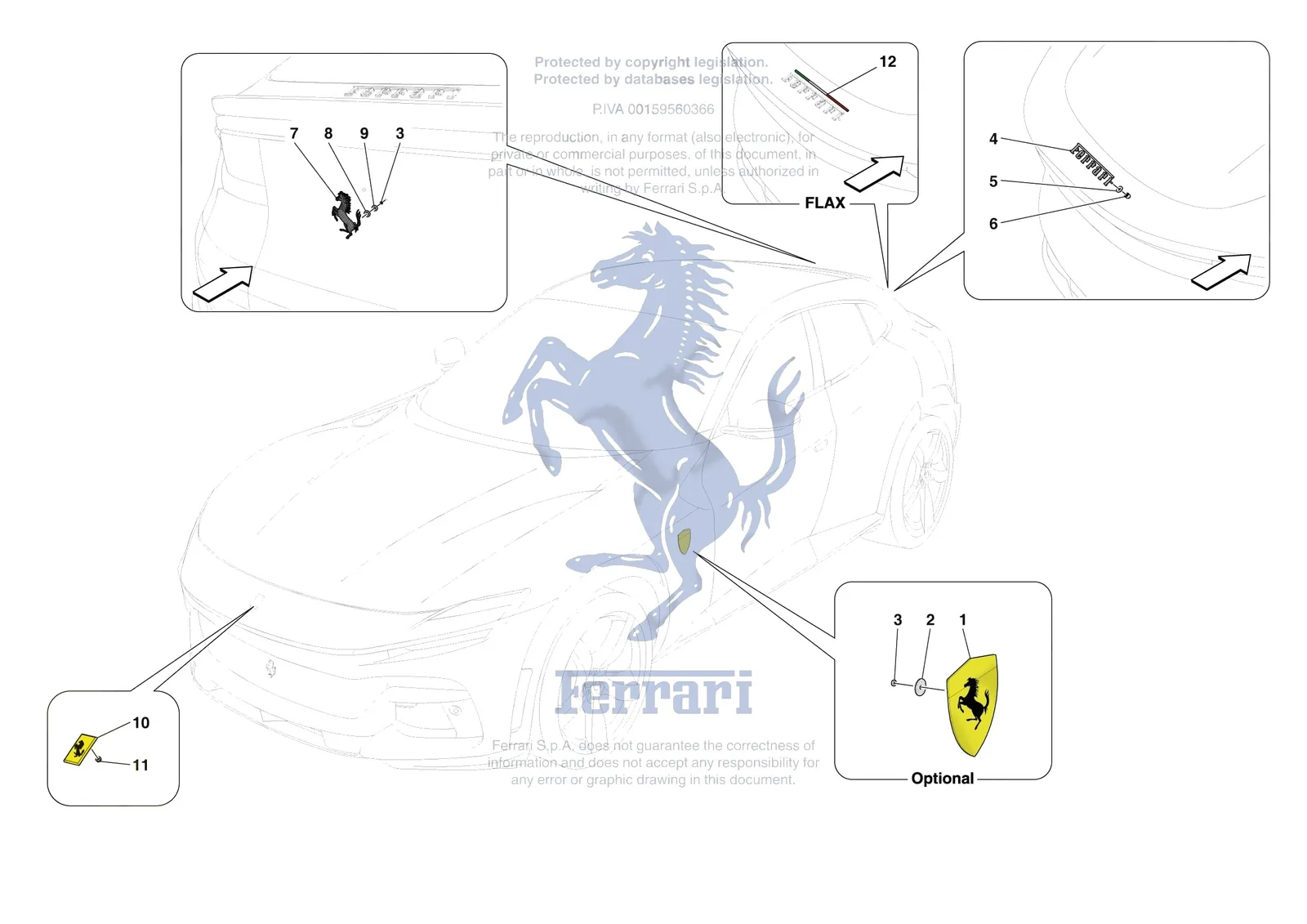

Exploded view of the [vehicle trim] - e.58 - badges on the Ferrari Purosangue, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.58 - BADGES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0179.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 70004391 | Ferrari Mask For Airbrushed Horse Lo - 70004391 | $313.28 | Special order, ships in 7-14 days |
| 1 | 948640 | Ferrari Squadra Corse Fender Shield - 948640 | Superseded | Order 983028 instead |
| 1 | 983028 | Ferrari Squadra Corse Shield Badge - 983028 | $1,852.54 | Special order, ships in 7-14 days |
| 3 | 16101711 | Ferrari Nut M3 x 2.4 - 16101711 | $0.17 | Available, ships in 3-6 days |
| 4 | 943482 | Ferrari Ferrari Badge - 943482 | $196.96 | Special order, ships in 7-14 days |
| 4 | 63482200 | Ferrari Rear Emblem / Motif - 63482200 | $114.05 | In stock |
| 5 | 89144000 | Ferrari Washer - 89144000 | $0.79 | Available, ships in 3-6 days |
| 6 | 84952000 | Ferrari Cosmetic Cap - 84952000 | $16.45 | Available, ships in 3-6 days |
| 7 | 858410 | Ferrari Cavallino Rampante Badge - 858410 | Superseded | Order 883808 instead |
| 7 | 883808 | Ferrari Cavallino Rampante Badge - 883808 | $113.24 | Special order, ships in 7-14 days |
| 7 | 884272 | Ferrari Cavallino Rampante Badge - 884272 | $64.00 | Special order, ships in 7-14 days |
| 7 | 884275 | Ferrari Cavallino Rampante Badge - 884275 | $86.15 | Special order, ships in 7-14 days |
| 8 | 60995100 | Ferrari Washer - 60995100 | $5.44 | Available, ships in 3-6 days |
| 9 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 10 | 973053 | Ferrari Front Emblem/Badge - 973053 | $368.80 | In stock |
| 10 | 65394800 | Ferrari Nose Emblem Badge - 65394800 | Superseded | Order 973053 instead |
| 11 | 113647 | Ferrari Nyloc Nut - 113647 | $0.52 | Available, ships in 3-6 days |
| 12 | 84706300 | Ferrari Italian Flag Badge - 84706300 | Superseded | Order 988640 instead |
| 12 | 988640 | Ferrari Italian Flag Badge - 988640 | $835.97 | Available, ships in 3-6 days |
