Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.5 - OTHER ELECTRICAL DEVICES (diagram 0188)

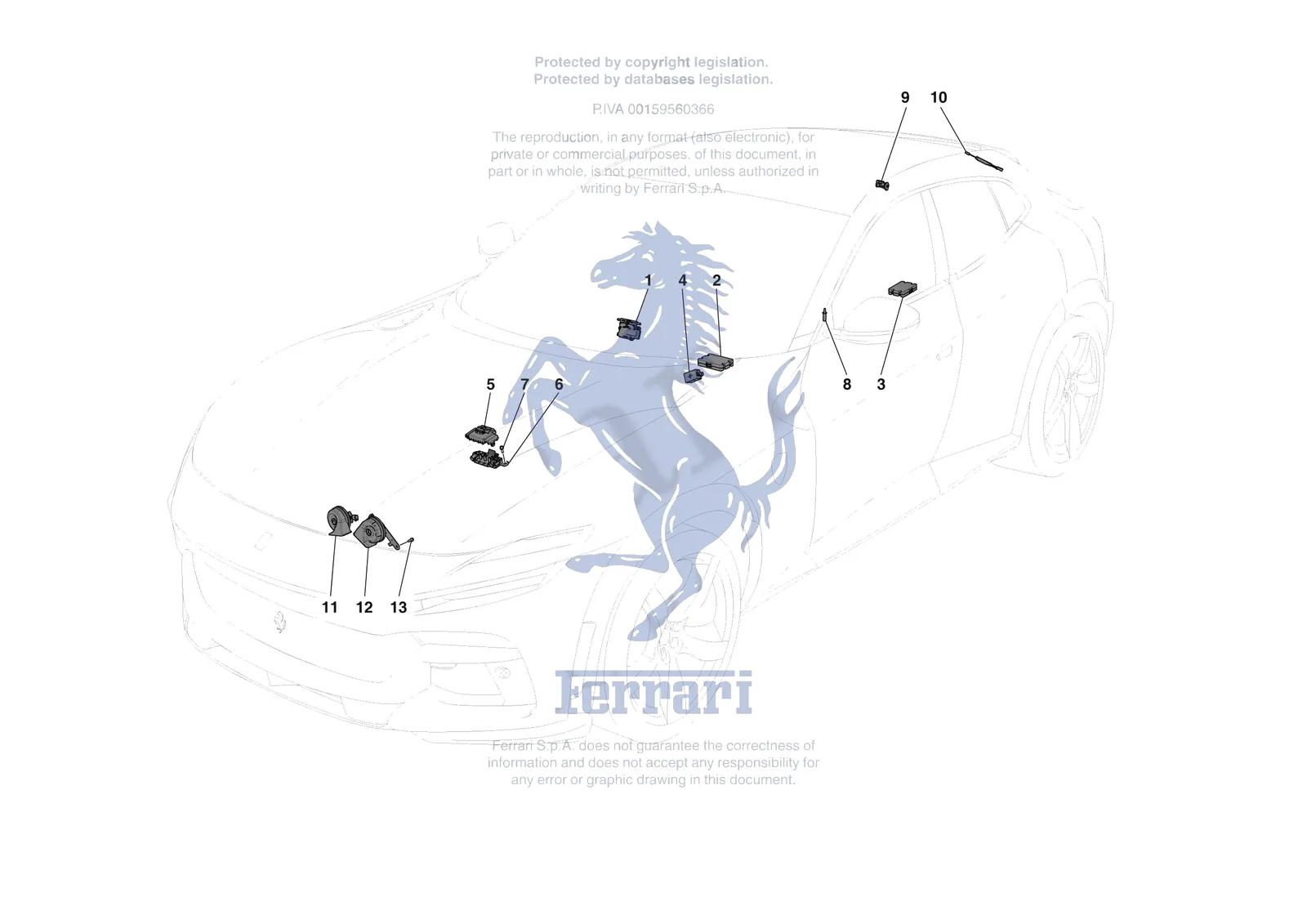

Exploded view of the [electrical system] - f.5 - other electrical devices on the Ferrari Purosangue, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ELECTRICAL SYSTEM] - F.5 - OTHER ELECTRICAL DEVICES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0188.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 336893 | Ferrari Avv. Acustico Tono Alto F164 - 336893 | Superseded | Order 789532 instead | |
| 336894 | Ferrari Avv. Acustico Tono Basso F16 - 336894 | $41.30 | Special order, ships in 7-14 days | |
| 140366 | Ferrari Cable Junction Box - 140366 | Superseded | Order 170114 instead | |
| 263423 | Ferrari Negative Filter - 263423 | $95.43 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 153357 | Ferrari Terminal Box - 153357 | Superseded | Order 170114 instead | |
| 120064 | Ferrari Terminal Connection Bloc - 120064 | Superseded | Order 170114 instead | |
| 1 | 747782 | Ferrari Electric Actuator - 747782 | $305.96 | Special order, ships in 7-14 days |
| 1 | 979343 | Ferrari ELECTRIC ACTUATOR - 979343 | Price on request | Contact us for price and availability |
| 2 | 817378 | Ferrari Front Wireless Charger - 817378 | $1,499.85 | Special order, ships in 7-14 days |
| 3 | 841000 | Ferrari Rear Wireless Charger - 841000 | $1,501.96 | Special order, ships in 7-14 days |
| 4 | 170114 | Ferrari Terminal Box - 170114 | $86.15 | Available, ships in 3-6 days |
| 5 | 817373 | Ferrari Upper Node Cover - 817373 | $34.40 | Special order, ships in 7-14 days |
| 6 | 775684 | Ferrari Upper Node - 775684 | $100.93 | Special order, ships in 7-14 days |
| 6 | 978273 | Ferrari Upper Node - 978273 | $100.93 | Special order, ships in 7-14 days |
| 7 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 8 | 188266 | Ferrari GLOVE COMPARTMENT LIGHT BUTTON - 188266 | $49.14 | Special order, ships in 7-14 days |
| 9 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 9 | 16285124 | Ferrari Screw 5x16 - 16285124 | Superseded | Order 16286024 instead |
| 9 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 10 | 263421 | Ferrari Positive Filter - 263421 | $117.99 | Special order, ships in 7-14 days |
| 11 | 789533 | Ferrari Horn Low Note - 789533 | $115.80 | Special order, ships in 7-14 days |
| 12 | 789532 | Ferrari Horn High Note - 789532 | $115.80 | Special order, ships in 7-14 days |
| 13 | 885472 | Ferrari 12V Power Socket Bezel - 885472 | $12.99 | Special order, ships in 7-14 days |
| 14 | 885482 | Ferrari 12V Power Socket Ring - 885482 | $36.86 | Special order, ships in 7-14 days |
