Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.7 - LOW VOLTAGE WIRING HARNESSES (diagram 0190)

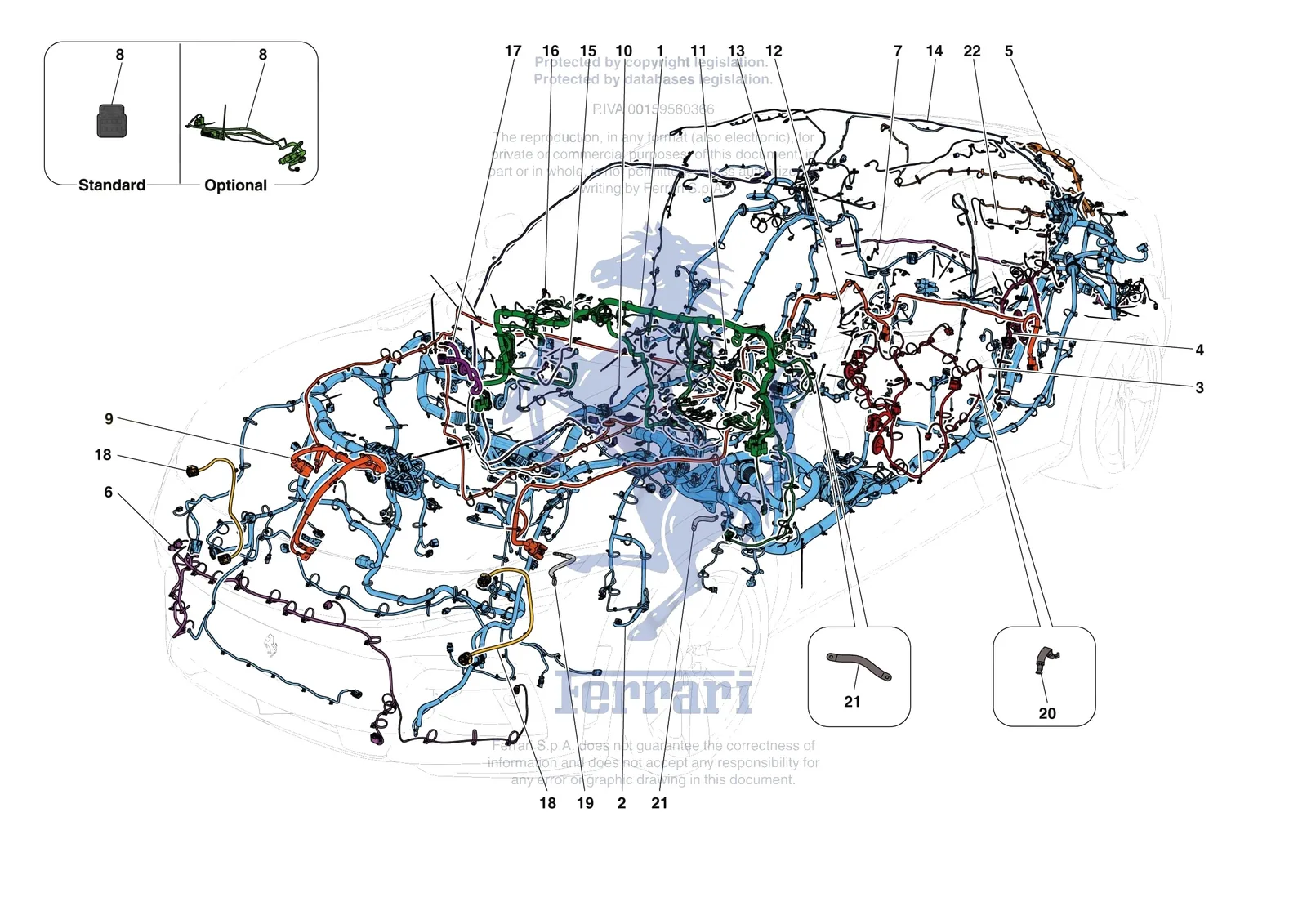

Exploded view of the [electrical system] - f.7 - low voltage wiring harnesses on the Ferrari Purosangue, with 111 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ELECTRICAL SYSTEM] - F.7 - LOW VOLTAGE WIRING HARNESSES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0190.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 845517 | Ferrari Dashboard Cable - 845517 | $4,837.74 | Special order, ships in 7-14 days |
| 1 | 845520 | Ferrari Dashboard Cable - 845520 | $5,032.38 | Special order, ships in 7-14 days |
| 1 | 845528 | Ferrari Dashboard Cable - 845528 | $4,837.74 | Special order, ships in 7-14 days |
| 1 | 845529 | Ferrari Dashboard Cable - 845529 | Superseded | Order 997777 instead |
| 1 | 845700 | Ferrari DASHBOARD CABLE - 845700 | Superseded | Order 997752 instead |
| 1 | 845701 | Ferrari Dashboard Cable - 845701 | Superseded | Order 997753 instead |
| 1 | 846685 | Ferrari DASHBOARD CABLE - 846685 | Price on request | Contact us for price and availability |
| 1 | 846686 | Ferrari DASHBOARD CABLE - 846686 | Price on request | Contact us for price and availability |
| 1 | 846972 | Ferrari Dashboard Cable - 846972 | Superseded | Order 997756 instead |
| 1 | 846973 | Ferrari Dashboard Cable - 846973 | Superseded | Order 997757 instead |
| 1 | 846983 | Ferrari DASHBOARD CABLE - 846983 | Price on request | Contact us for price and availability |
| 1 | 846984 | Ferrari Dashboard Cable - 846984 | $3,803.58 | Special order, ships in 7-14 days |
| 1 | 997752 | Ferrari DASHBOARD CABLE - 997752 | $4,823.26 | Special order, ships in 7-14 days |
| 1 | 997753 | Ferrari Dashboard Cable - 997753 | $4,204.58 | Special order, ships in 7-14 days |
| 1 | 997754 | Ferrari DASHBOARD CABLE - 997754 | Price on request | Contact us for price and availability |
| 1 | 997755 | Ferrari DASHBOARD CABLE - 997755 | Price on request | Contact us for price and availability |
| 1 | 997756 | Ferrari Dashboard Cable - 997756 | $3,827.04 | Special order, ships in 7-14 days |
| 1 | 997757 | Ferrari Dashboard Cable - 997757 | $3,796.55 | Special order, ships in 7-14 days |
| 1 | 997758 | Ferrari DASHBOARD CABLE - 997758 | Price on request | Contact us for price and availability |
| 1 | 997759 | Ferrari Dashboard Cable - 997759 | Superseded | Order 846984 instead |
| 1 | 997774 | Ferrari Dashboard Cable - 997774 | $6,036.04 | Special order, ships in 7-14 days |
| 1 | 997775 | Ferrari Dashboard Cable - 997775 | Superseded | Order 845520 instead |
| 1 | 997776 | Ferrari Dashboard Cable - 997776 | Superseded | Order 845528 instead |
| 1 | 997777 | Ferrari Dashboard Cable - 997777 | $6,927.14 | Special order, ships in 7-14 days |
| 2 | 845706 | Ferrari BODY CABLE - 845706 | Price on request | Contact us for price and availability |
| 2 | 845707 | Ferrari BODY CABLE - 845707 | Price on request | Contact us for price and availability |
| 2 | 845708 | Ferrari BODY CABLE - 845708 | Price on request | Contact us for price and availability |
| 2 | 845711 | Ferrari BODY CABLE - 845711 | Price on request | Contact us for price and availability |
| 2 | 845801 | Ferrari Body Cable - 845801 | Superseded | Order 997766 instead |
| 2 | 846993 | Ferrari BODY CABLE - 846993 | Price on request | Contact us for price and availability |
| 2 | 846994 | Ferrari BODY CABLE - 846994 | Price on request | Contact us for price and availability |
| 2 | 846995 | Ferrari BODY CABLE - 846995 | Price on request | Contact us for price and availability |
| 2 | 846998 | Ferrari BODY CABLE - 846998 | Price on request | Contact us for price and availability |
| 2 | 846999 | Ferrari Body Cable - 846999 | Superseded | Order 997766 instead |
| 2 | 978170 | Ferrari Body Cable - 978170 | Price on request | Contact us for price and availability |
| 2 | 978171 | Ferrari Body Cable - 978171 | Price on request | Contact us for price and availability |
| 2 | 978172 | Ferrari Body Cable - 978172 | Superseded | Order 997782 instead |
| 2 | 978174 | Ferrari Body Cable - 978174 | Price on request | Contact us for price and availability |
| 2 | 978178 | Ferrari Body Cable - 978178 | Superseded | Order 997785 instead |
| 2 | 978187 | Ferrari Body Cable - 978187 | Price on request | Contact us for price and availability |
| 2 | 978188 | Ferrari Body Cable - 978188 | Price on request | Contact us for price and availability |
| 2 | 978189 | Ferrari Body Cable - 978189 | Price on request | Contact us for price and availability |
| 2 | 978191 | Ferrari Body Cable - 978191 | Superseded | Order 997770 instead |
| 2 | 997762 | Ferrari BODY CABLE - 997762 | Price on request | Contact us for price and availability |
| 2 | 997763 | Ferrari BODY CABLE - 997763 | Price on request | Contact us for price and availability |
| 2 | 997764 | Ferrari BODY CABLE - 997764 | Price on request | Contact us for price and availability |
| 2 | 997765 | Ferrari BODY CABLE - 997765 | Price on request | Contact us for price and availability |
| 2 | 997766 | Ferrari Body Cable - 997766 | $24,022.27 | Contact us to order |
| 2 | 997767 | Ferrari Body Cable - 997767 | Price on request | Contact us for price and availability |
| 2 | 997768 | Ferrari Body Cable - 997768 | Price on request | Contact us for price and availability |
| 2 | 997769 | Ferrari Body Cable - 997769 | Price on request | Contact us for price and availability |
| 2 | 997770 | Ferrari Body Cable - 997770 | $25,827.68 | Contact us to order |
| 2 | 997778 | Ferrari Body Cable - 997778 | Price on request | Contact us for price and availability |
| 2 | 997780 | Ferrari Body Cable - 997780 | Price on request | Contact us for price and availability |
| 2 | 997782 | Ferrari Body Cable - 997782 | $25,671.26 | Contact us to order |
| 2 | 997784 | Ferrari Body Cable - 997784 | Price on request | Contact us for price and availability |
| 2 | 997785 | Ferrari Body Cable - 997785 | $26,344.76 | Contact us to order |
| 2 | 779309 | Ferrari Cavo Body Base Audio Base Gd - 779309 | $25,742.95 | Contact us to order |
| 2 | 779027 | Ferrari Cavo Body Base Audio Base Mc - 779027 | $23,787.63 | Contact us to order |
| 2 | 779410 | Ferrari Cavo Body Full Audbase Nsw G - 779410 | $26,492.50 | Contact us to order |
| 2 | 779384 | Ferrari Cavo Body Full Audio Base Gd - 779384 | $25,842.90 | Contact us to order |
| 2 | 779029 | Ferrari Cavo Body Full Audio Base Mc - 779029 | $24,246.04 | Contact us to order |
| 2 | 779050 | Ferrari Cavo Body Full Audio Base Ns - 779050 | $24,760.95 | Contact us to order |
| 2 | 779192 | Ferrari Cavo Body Full Audio He Nsw - 779192 | $25,071.62 | Contact us to order |
| 2 | 779515 | Ferrari Cavo Body Full Audiohe Nsw G - 779515 | $27,020.43 | Contact us to order |
| 2 | 779387 | Ferrari Cavo Bodyfull Audio He Gdx M - 779387 | $26,414.28 | Contact us to order |
| 2 | 779156 | Ferrari Cavo Bodyfull Audio High End - 779156 | $24,558.89 | Special order, ships in 7-14 days |
| 3 | 845611 | Ferrari LH Front Door Cable - 845611 | $812.51 | Special order, ships in 7-14 days |
| 3 | 845641 | Ferrari LH Front Door Cable - 845641 | $861.77 | Special order, ships in 7-14 days |
| 3 | 847852 | Ferrari LH FRONT DOOR CABLE - 847852 | Price on request | Contact us for price and availability |
| 3 | 847853 | Ferrari LH Front Door Cable - 847853 | $812.51 | Special order, ships in 7-14 days |
| 3 | 997786 | Ferrari LH FRONT DOOR CABLE - 997786 | Price on request | Contact us for price and availability |
| 3 | 997787 | Ferrari LH Front Door Cable - 997787 | $837.14 | Special order, ships in 7-14 days |
| 3 | 845581 | Ferrari RH Front Door Cable - 845581 | $738.64 | Special order, ships in 7-14 days |
| 3 | 845582 | Ferrari RH Front Door Cable - 845582 | $787.90 | Special order, ships in 7-14 days |
| 3 | 847818 | Ferrari RH FRONT DOOR CABLE - 847818 | Price on request | Contact us for price and availability |
| 3 | 847819 | Ferrari RH Front Door Cable - 847819 | $812.51 | Special order, ships in 7-14 days |
| 3 | 997772 | Ferrari RH FRONT DOOR CABLE - 997772 | Price on request | Contact us for price and availability |
| 3 | 997773 | Ferrari RH Front Door Cable - 997773 | $935.64 | Special order, ships in 7-14 days |
| 4 | 847873 | Ferrari REAR DOOR CABLE - 847873 | Price on request | Contact us for price and availability |
| 4 | 847923 | Ferrari Rear Door Cable - 847923 | $664.78 | Special order, ships in 7-14 days |
| 5 | 846075 | Ferrari Tailgate Cable - 846075 | $911.01 | Special order, ships in 7-14 days |
| 5 | 846076 | Ferrari Tailgate Cable - 846076 | $689.41 | Special order, ships in 7-14 days |
| 5 | 846329 | Ferrari Tailgate Cable - 846329 | $1,034.12 | Special order, ships in 7-14 days |
| 5 | 846541 | Ferrari Tailgate Cable - 846541 | $1,083.38 | Special order, ships in 7-14 days |
| 5 | 913253 | Ferrari TAILGATE CABLE - 913253 | Price on request | Contact us for price and availability |
| 5 | 913282 | Ferrari TAILGATE CABLE - 913282 | Price on request | Contact us for price and availability |
| 5 | 913287 | Ferrari Tailgate Cable - 913287 | $1,009.51 | Special order, ships in 7-14 days |
| 5 | 913288 | Ferrari Tailgate Cable - 913288 | $1,034.12 | Special order, ships in 7-14 days |
| 6 | 847955 | Ferrari Front Bumper Cable - 847955 | $320.06 | Special order, ships in 7-14 days |
| 6 | 847956 | Ferrari Front Bumper Cable - 847956 | $590.91 | Special order, ships in 7-14 days |
| 7 | 847957 | Ferrari Rear Bumper Cable - 847957 | $787.90 | Special order, ships in 7-14 days |
| 7 | 956412 | Ferrari Rear Bumper Cable - 956412 | $615.54 | Special order, ships in 7-14 days |
| 8 | 847959 | Ferrari Vehicle Lift Cable - 847959 | $467.80 | Special order, ships in 7-14 days |
| 8 | 868909 | Ferrari Vehicle Lift Cable - 868909 | $142.79 | Special order, ships in 7-14 days |
| 9 | 847961 | Ferrari 48V Cable - 847961 | $1,551.20 | Special order, ships in 7-14 days |
| 9 | 990497 | Ferrari Cavo 48V F175 - 990497 | $1,501.96 | Special order, ships in 7-14 days |
| 10 | 818028 | Ferrari 48V Battery Cable - 818028 | $211.73 | Special order, ships in 7-14 days |
| 11 | 847963 | Ferrari Front Tunnel Cable - 847963 | $812.51 | Special order, ships in 7-14 days |
| 11 | 893383 | Ferrari FRONT TUNNEL CABLE - 893383 | Price on request | Contact us for price and availability |
| 12 | 847965 | Ferrari Rear Tunnel Cable - 847965 | $147.72 | Special order, ships in 7-14 days |
| 13 | 893094 | Ferrari Electrochromic Roof Cable - 893094 | $295.43 | Special order, ships in 7-14 days |
| 14 | 893088 | Ferrari Headliner Cable - 893088 | $160.02 | Special order, ships in 7-14 days |
| 15 | 868663 | Ferrari Glove Compartment Cable - 868663 | $34.44 | Special order, ships in 7-14 days |
| 16 | 873321 | Ferrari Passenger Airbag Cable - 873321 | $78.76 | Special order, ships in 7-14 days |
| 17 | 868664 | Ferrari Negative Battery Cable - 868664 | $192.03 | Special order, ships in 7-14 days |
| 17 | 875446 | Ferrari Negative Battery Cable - 875446 | $196.96 | Special order, ships in 7-14 days |
| 18 | 868670 | Ferrari Headlamp Cable - 868670 | $76.30 | Special order, ships in 7-14 days |
| 19 | 941532 | Ferrari Engine-Subframe Ground Cable - 941532 | $270.83 | Special order, ships in 7-14 days |
| 20 | 963958 | Ferrari Gearbox Ground Braid - Earth Cable - 963958 | $76.19 | Special order, ships in 7-14 days |
| 21 | 340259 | Ferrari Earth Braid - Gearbox - 340259 | $34.44 | Special order, ships in 7-14 days |
