Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS (diagram 0192)

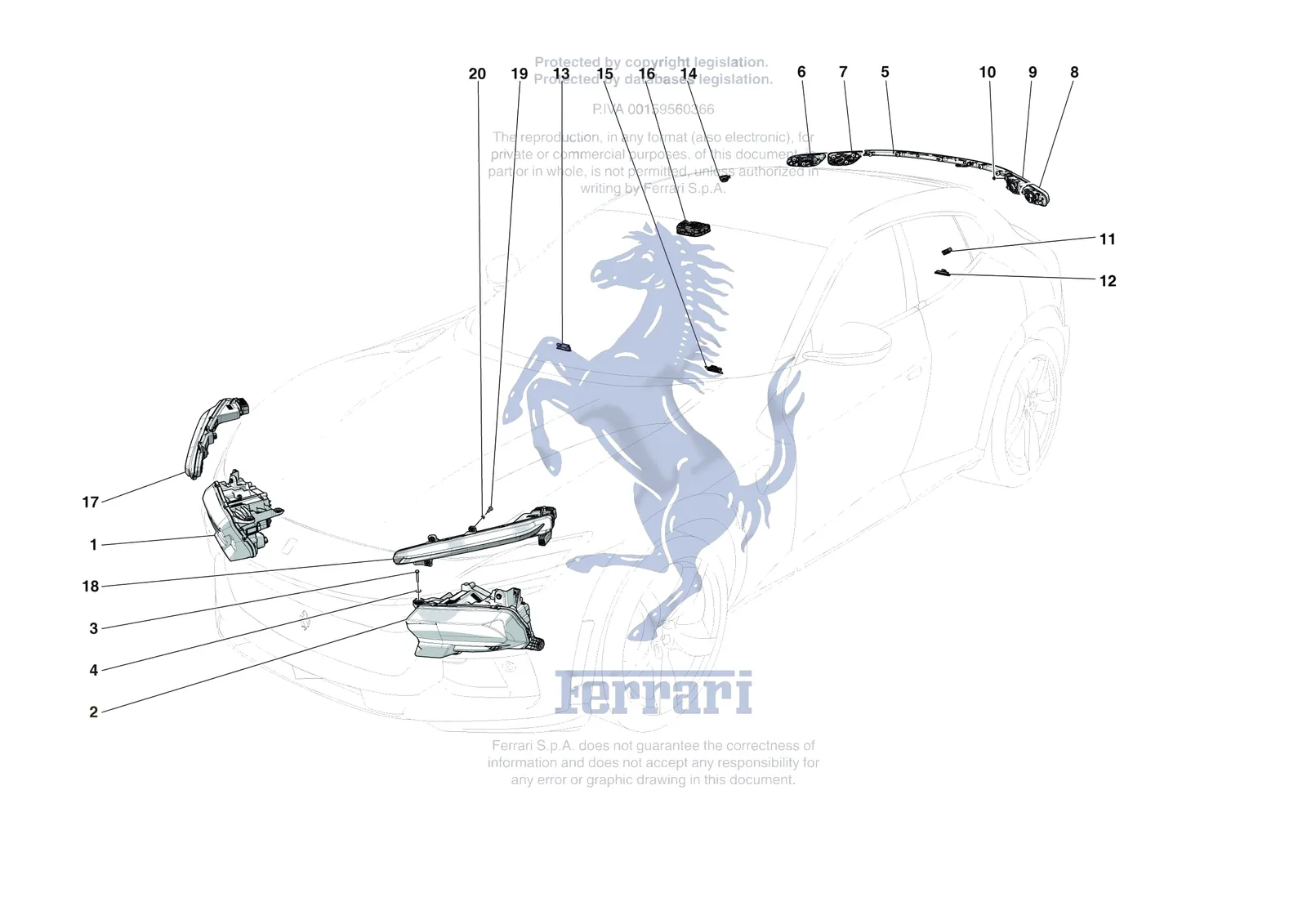

Exploded view of the [electrical system] - f.9 - lighting systems on the Ferrari Purosangue, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ELECTRICAL SYSTEM] - F.9 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0192.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 911486 | Ferrari Luggage Compartment Light - 911486 | Superseded | Order 974896 instead | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 796768 | Ferrari Compl. RH Headlamp - 796768 | $5,550.89 | Special order, ships in 7-14 days |
| 1 | 796778 | Ferrari Compl. RH Headlamp - 796778 | $5,869.80 | Special order, ships in 7-14 days |
| 1 | 796792 | Ferrari Compl. RH Headlamp - 796792 | $5,550.89 | Special order, ships in 7-14 days |
| 1 | 796793 | Ferrari Compl. RH Headlamp - 796793 | $5,869.80 | Special order, ships in 7-14 days |
| 1 | 885572 | Ferrari Compl. RH Headlamp - 885572 | $5,600.90 | Special order, ships in 7-14 days |
| 1 | 901660 | Ferrari Compl. RH Headlamp - 901660 | $5,869.80 | Special order, ships in 7-14 days |
| 2 | 796780 | Ferrari Compl. LH Headlamp - 796780 | $5,550.89 | Special order, ships in 7-14 days |
| 2 | 796782 | Ferrari Compl. LH Headlamp - 796782 | $5,869.80 | Special order, ships in 7-14 days |
| 2 | 796791 | Ferrari Compl. LH Headlamp - 796791 | $5,869.80 | Special order, ships in 7-14 days |
| 2 | 796794 | Ferrari Compl. LH Headlamp - 796794 | $5,550.89 | Special order, ships in 7-14 days |
| 2 | 885570 | Ferrari Compl. LH Headlamp - 885570 | $5,600.90 | Special order, ships in 7-14 days |
| 2 | 901638 | Ferrari Compl. LH Headlamp - 901638 | $5,869.80 | Special order, ships in 7-14 days |
| 3 | 11628524 | Ferrari Screw 6X40 - 11628524 | $2.59 | Special order, ships in 7-14 days |
| 4 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 5 | 885583 | Ferrari Third Brake Light - 885583 | $962.99 | Available, ships in 3-6 days |
| 6 | 796933 | Ferrari RH Fixed Tail Light Unit - 796933 | $1,335.07 | Special order, ships in 7-14 days |
| 6 | 885574 | Ferrari RH Fixed Tail Light Unit - 885574 | $1,378.85 | Available, ships in 3-6 days |
| 7 | 796934 | Ferrari RH Mobile Tail Light Unit - 796934 | $1,335.07 | Special order, ships in 7-14 days |
| 7 | 885576 | Ferrari RH Mobile Tail Light Unit - 885576 | $1,378.85 | Available, ships in 3-6 days |
| 8 | 796935 | Ferrari LH Fixed Tail Light Unit - 796935 | $1,335.07 | Special order, ships in 7-14 days |
| 8 | 885575 | Ferrari LH Fixed Tail Light Unit - 885575 | $1,378.85 | Available, ships in 3-6 days |
| 9 | 796936 | Ferrari LH Mobile Tail Light Unit - 796936 | $1,335.07 | Special order, ships in 7-14 days |
| 9 | 885577 | Ferrari LH Mobile Tail Light Unit - 885577 | $1,378.85 | Available, ships in 3-6 days |
| 10 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 11 | 748857 | Ferrari Luggage Compartment Light - 748857 | Superseded | Order 974896 instead |
| 11 | 974896 | Ferrari Luggage Compartment Light - 974896 | $98.32 | Special order, ships in 7-14 days |
| 12 | 307799 | Ferrari Light - 307799 | $87.40 | Special order, ships in 7-14 days |
| 13 | 911487 | Ferrari 1Led Courtesy Light - 911487 | $46.69 | Special order, ships in 7-14 days |
| 14 | 885573 | Ferrari Circular Touch Panel Light U - 885573 | $123.09 | Special order, ships in 7-14 days |
| 15 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
| 16 | 872211 | Ferrari Front Light Unit - 872211 | $4,099.06 | Special order, ships in 7-14 days |
| 17 | 883965 | Ferrari RH Drl - 883965 | $1,707.14 | Special order, ships in 7-14 days |
| 18 | 883827 | Ferrari LH Drl - 883827 | $1,707.14 | Special order, ships in 7-14 days |
| 19 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 20 | 978361 | Ferrari Ring - 978361 | $1.46 | Special order, ships in 7-14 days |
