Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0193)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari Purosangue, with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

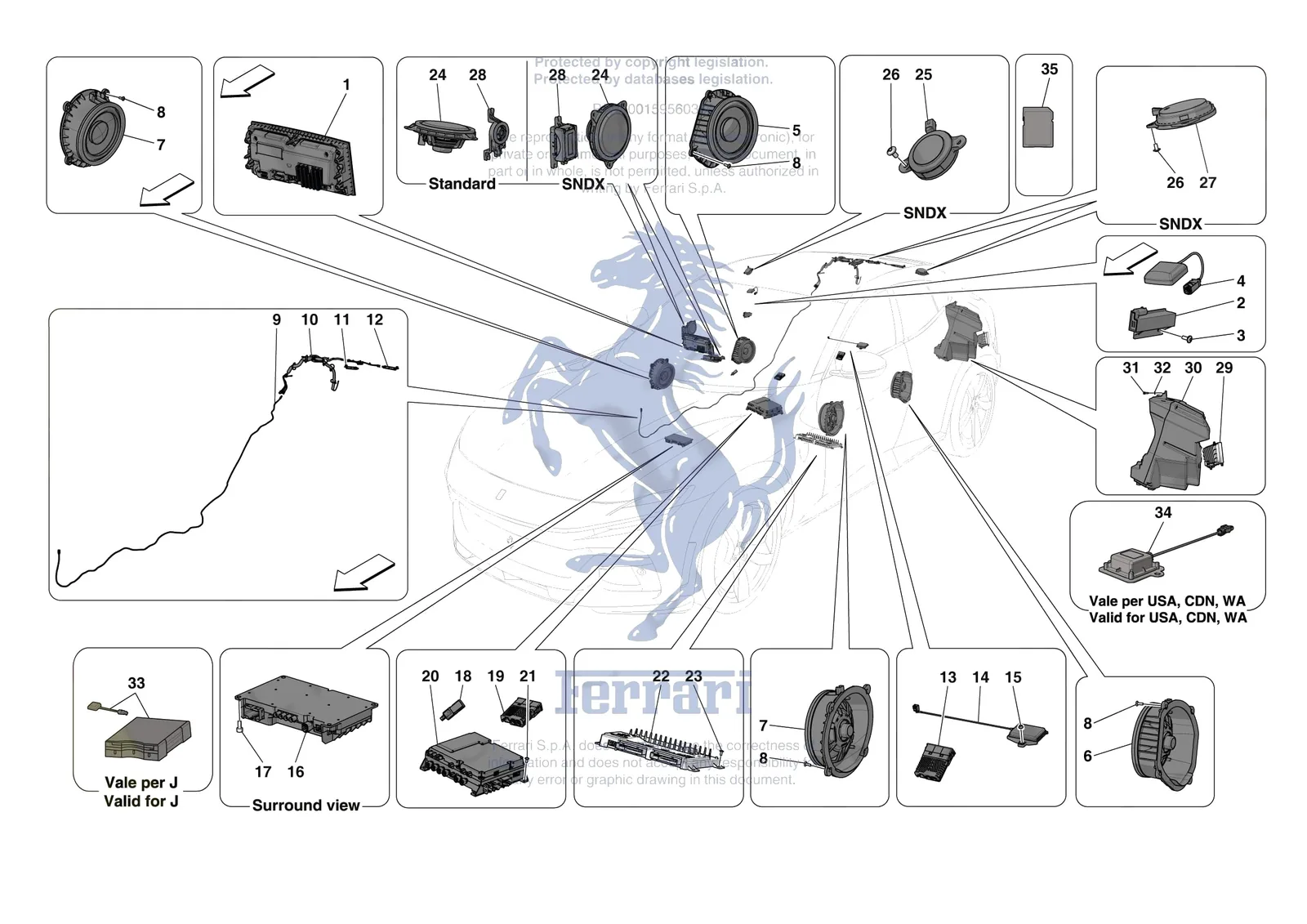

Ferrari Purosangue [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
1810520Ferrari Passenger Display - 810520$11,938.44Contact us to order
2310778Ferrari Passive Start Antenna - 310778$26.20Available, ships in 3-6 days
385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
4789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
5800681Ferrari RH Rear Woofer - 800681Price on requestContact us for price and availability
5800689Ferrari RH Rear Woofer - 800689$328.27Special order, ships in 7-14 days
6800679Ferrari LH Rear Woofer - 800679Price on requestContact us for price and availability
6800687Ferrari LH Rear Woofer - 800687$328.27Special order, ships in 7-14 days
7772396Ferrari Front Woofer - 772396Price on requestContact us for price and availability
7772400Ferrari Front Woofer - 772400$328.27Special order, ships in 7-14 days
885833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
9888226Ferrari Passenger Compartment Dab Ca - 888226$189.56Special order, ships in 7-14 days
10888208Ferrari Tailgate Antenna Cable - 888208$640.17Special order, ships in 7-14 days
10888209Ferrari Tailgate Antenna Cable - 888209$1,107.99Special order, ships in 7-14 days
10888212Ferrari Tailgate Antenna Cable - 888212$714.03Special order, ships in 7-14 days
10888213Ferrari Tailgate Antenna Cable - 888213$1,181.86Special order, ships in 7-14 days
10888214Ferrari Tailgate Antenna Cable - 888214$517.04Special order, ships in 7-14 days
10888215Ferrari Tailgate Antenna Cable - 888215$935.64Special order, ships in 7-14 days
10888216Ferrari Tailgate Antenna Cable - 888216$517.04Special order, ships in 7-14 days
10888217Ferrari Tailgate Antenna Cable - 888217$935.64Special order, ships in 7-14 days
11771350Ferrari Fm2/Dab Amplifier - 771350$344.21Special order, ships in 7-14 days
11771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
11771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
12331962Ferrari Am/Fm Amplifier - 331962$189.31Special order, ships in 7-14 days
12771349Ferrari Am/Fm Amplifier - 771349$240.94Special order, ships in 7-14 days
13893866Ferrari Smart Usb Port - 893866$566.30Special order, ships in 7-14 days
14935814Ferrari Passive Start Antenna - 935814$126.73Special order, ships in 7-14 days
14925991Ferrari Passive Start Antenna RF Gen - 925991$126.73Available, ships in 3-6 days
1514059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
1514039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
1655058986Ferrari NSW F175 - Purosangue - 55058986$7,283.59Special order, ships in 7-14 days
16857397Ferrari Surround View Node - 857397SupersededOrder 55058986 instead
1714304124Ferrari Screw TCEI M5 x 12 - 14304124$0.31Special order, ships in 7-14 days
18843076Ferrari Antenna Bt-Wifi Dual Band - 843076$85.22Special order, ships in 7-14 days
19893865Ferrari Smart Usb Port - 893865$590.08Special order, ships in 7-14 days
20774440Ferrari Nit - 774440$15,437.20Contact us to order
20774442Ferrari Nit - 774442$17,170.18Contact us to order
20774444Ferrari Nit - 774444$15,303.54Contact us to order
20774446Ferrari Nit - 774446$17,510.19Contact us to order
20975117Ferrari Nit - 975117$16,759.79Contact us to order
20975118Ferrari Nit - 975118$14,937.72Contact us to order
20975119Ferrari Nit - 975119$17,104.52Contact us to order
20975116Ferrari Nit A2B Row F175 V2 - 975116$14,937.72Contact us to order
2188822200Ferrari Screw 4 x 10 - 88822200$1.30Special order, ships in 7-14 days
22772391Ferrari Analogue-Digital Converter - 772391Price on requestContact us for price and availability
22773052Ferrari Analogue-Digital Converter - 773052$12,447.31Special order, ships in 7-14 days
2385692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
24772410Ferrari FULLRANGE - 772410Price on requestContact us for price and availability
24772414Ferrari Midrange Speaker - 772414$177.00Special order, ships in 7-14 days
25772416Ferrari Headliner - 772416$393.38Special order, ships in 7-14 days
2685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
27772420Ferrari Surround - 772420$590.91Special order, ships in 7-14 days
28772404Ferrari Tweeter - 772404Price on requestContact us for price and availability
28772407Ferrari Tweeter - 772407$372.04Special order, ships in 7-14 days
29772393Ferrari Booster - 772393$3,528.97Special order, ships in 7-14 days
30780636Ferrari Subwoofer - 780636$1,707.14Special order, ships in 7-14 days
31231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
3212644427Ferrari Washer - 12644427$2.59Special order, ships in 7-14 days
33867280Ferrari Dsrc Kit - 867280$4,362.61Special order, ships in 7-14 days
33887994Ferrari Dsrc Kit - 887994SupersededOrder 867280 instead
3570006011Ferrari Sd Card Navigation Maps - 70006011$1,256.70Special order, ships in 7-14 days
